Amplifier Replacement (Coupe/Sedan)

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

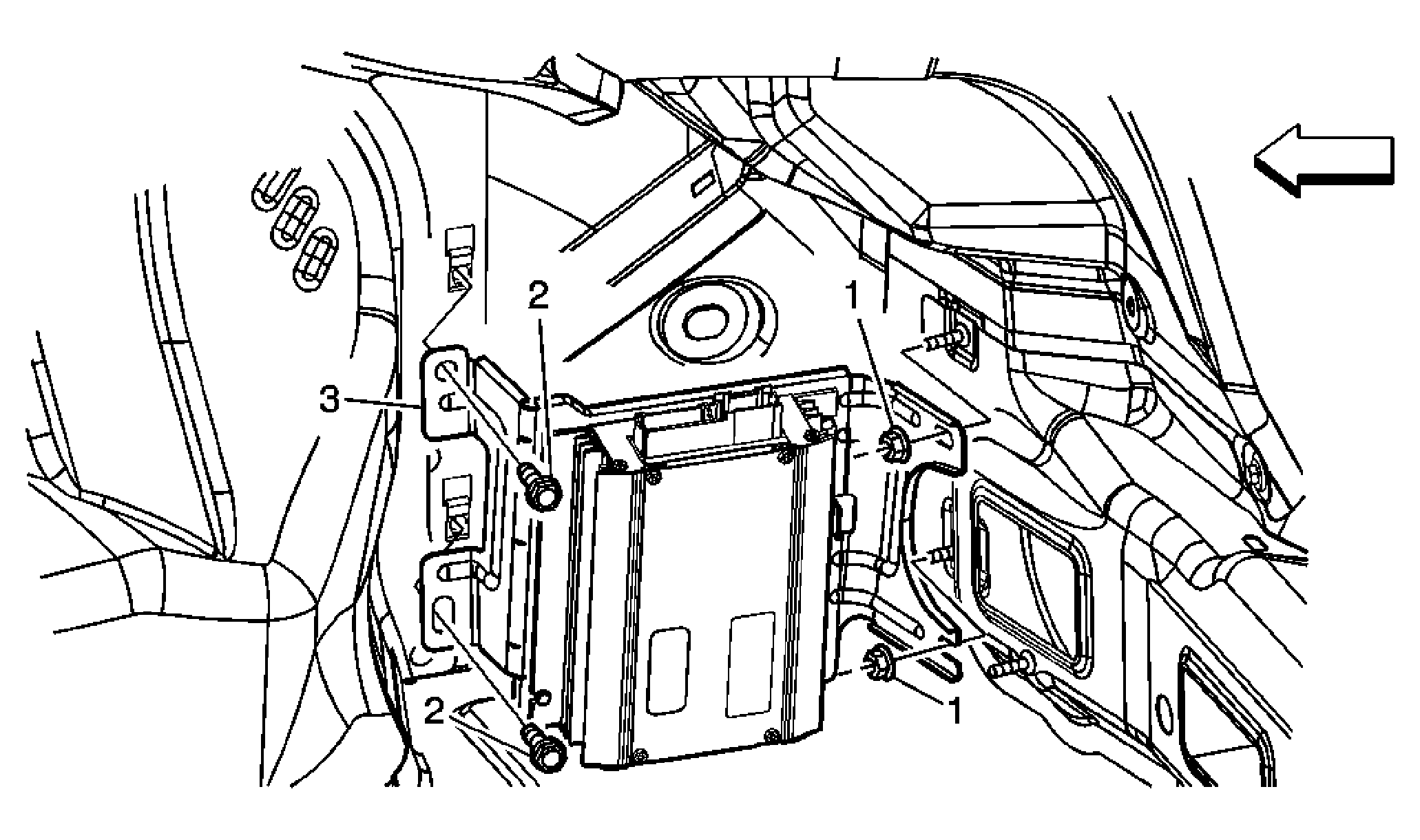

Fig 1: Replacing Radio Speaker Amplifier (Coup/Sedan)

Courtesy of GENERAL MOTORS CORP.

Amplifier Replacement (Coupe and Sedan)

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Convertible) or Rear Compartment Side Trim Replacement - Right Side (Coupe/Sedan) . Program the audio amplifier after replacement. Refer to Control Module References .
1	Nut, Amplifier Radio Speaker (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Screw, Amplifier Radio Speaker (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Amplifier Assembly, Radio Speaker
