Amplifier Replacement (Convertible)

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

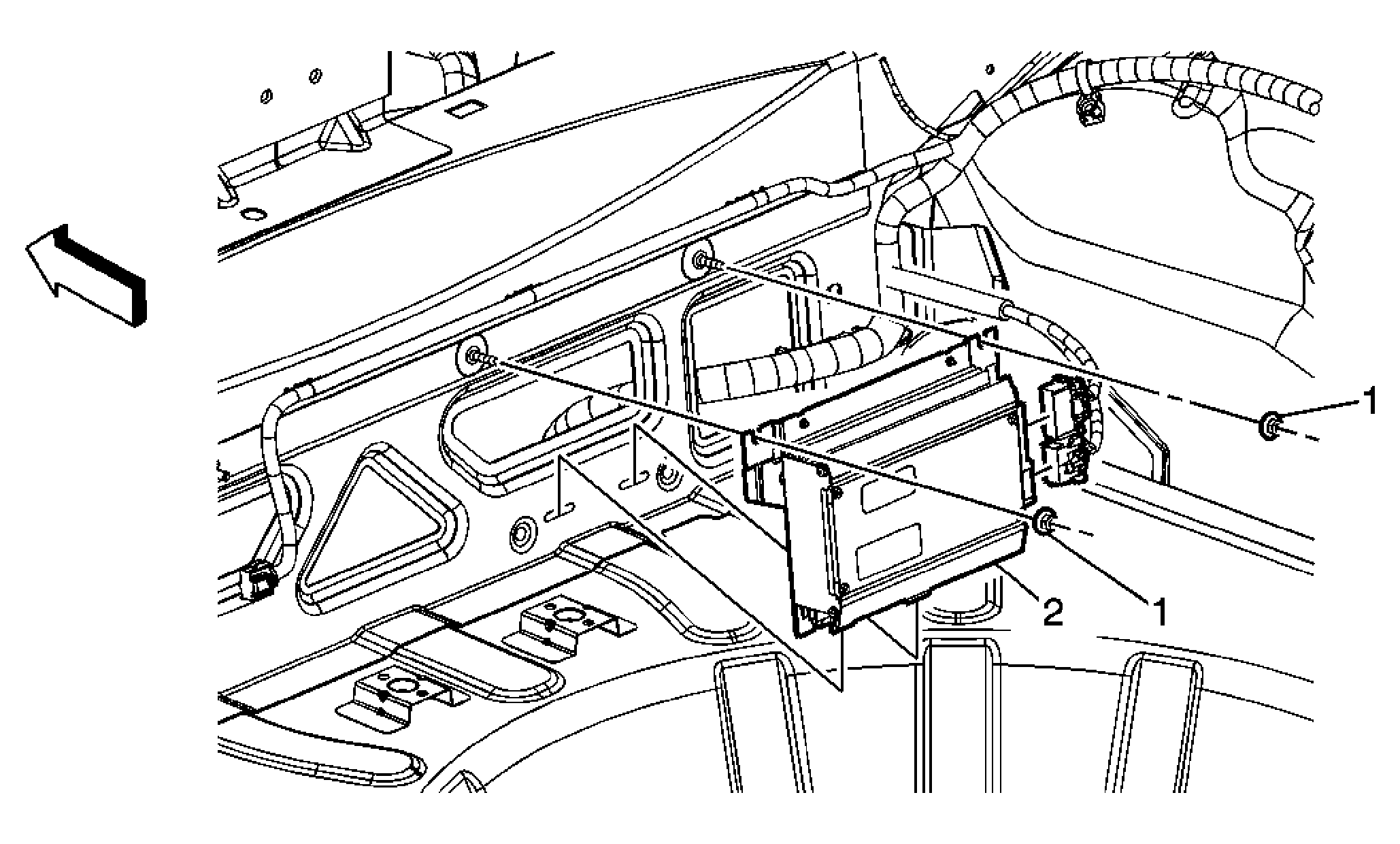

Fig 1: Replacing Radio Speaker Amplifier (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim panel. Refer to Rear Compartment Front Trim Panel Replacement (Convertible) . Program the audio amplifier after replacement. Refer to Control Module References .
1	Nut, Amplifier Radio Speaker (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Amplifier Assembly, Radio Speaker

Callout

Component Name

Preliminary Procedure

Remove the rear compartment trim panel. Refer to Rear Compartment Front Trim Panel Replacement (Convertible) .
Program the audio amplifier after replacement. Refer to Control Module References .

Nut, Amplifier Radio Speaker (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Amplifier Assembly, Radio Speaker
