Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

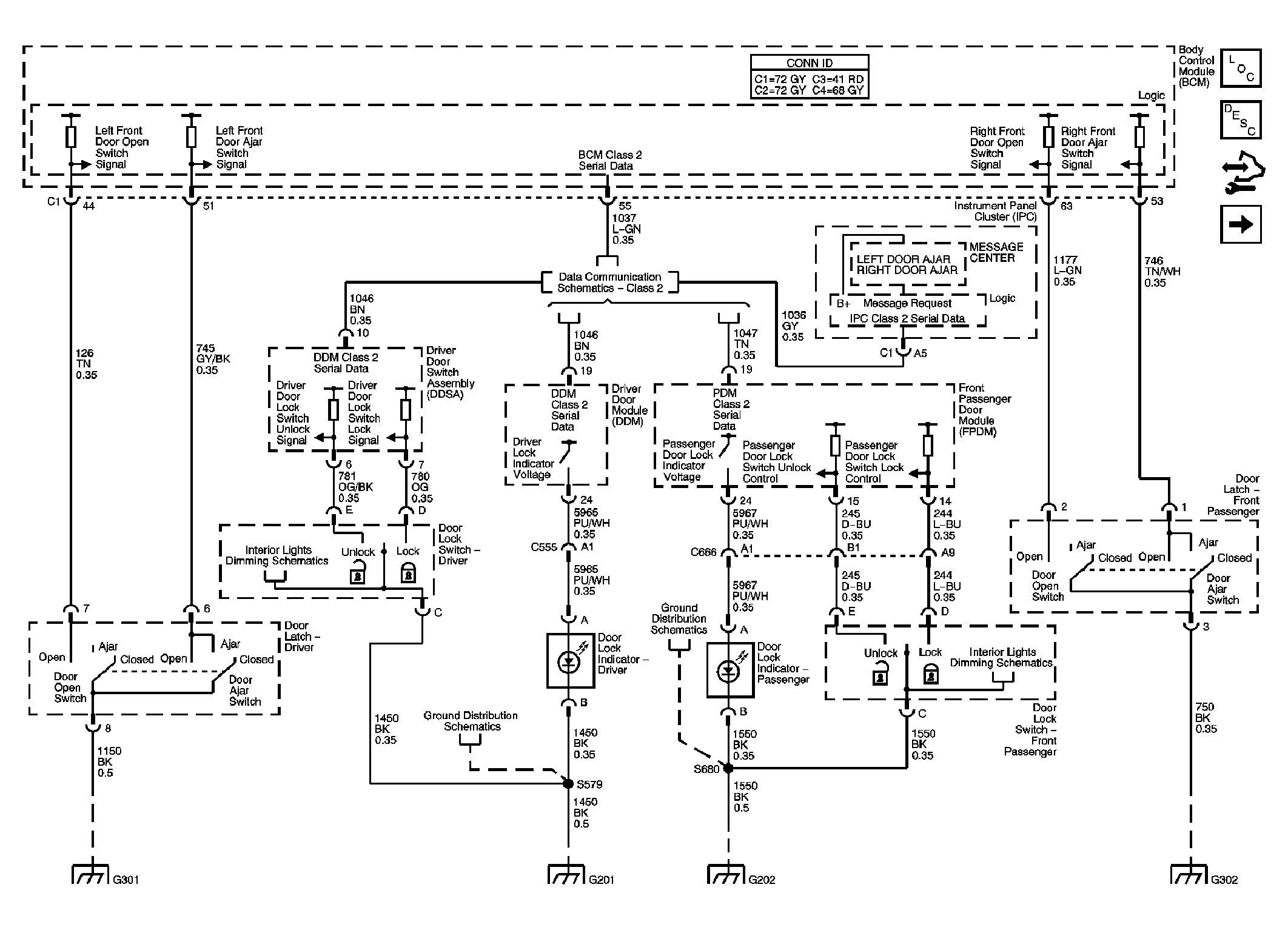

Fig 1: Indicators, Messages and Ajar/Open/Lock Switches Schematic
GM1756994Courtesy of GENERAL MOTORS CORP.

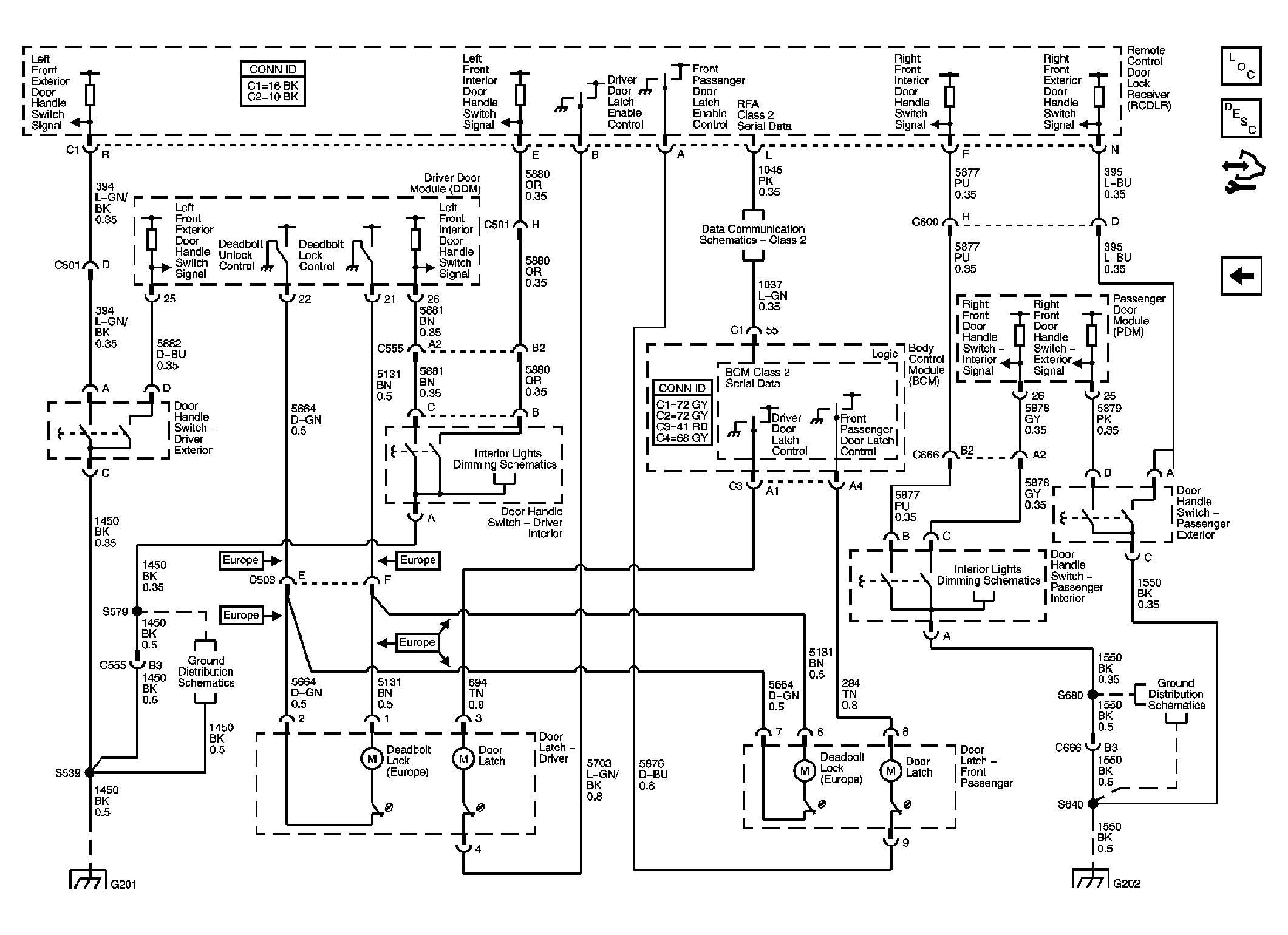

Fig 2: Actuators & Handle Switches Schematic
GM1756999Courtesy of GENERAL MOTORS CORP.
