Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Door Switch Assemblies & Door Switch Bezel
    GM1271233Courtesy of GENERAL MOTORS CORP.
  1. Install the power door lock switch to the armrest switch plate applique. Push to engage the switch to the applique.
  2. Connect the wire harness to the door lock switch assembly.

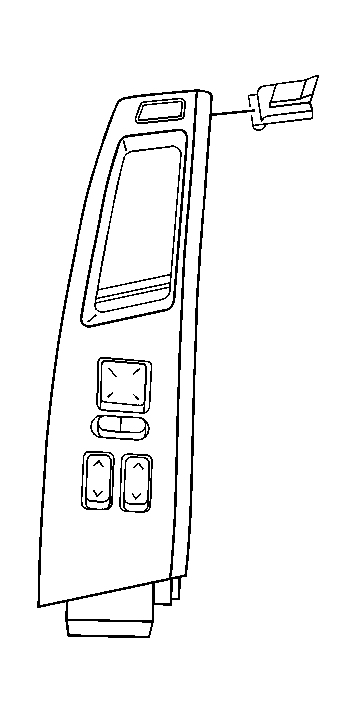

    3. Fig 2: View Of Power Door Lock Switch Assembly
    GM1271255Courtesy of GENERAL MOTORS CORP.
  3. Install the lock switch assembly into the pocket in the door trim panel.
  4. Remove any protective tape.
    5. Fig 3: View Of Armrest Assembly & Screws
    GM1271088Courtesy of GENERAL MOTORS CORP.
  5. Connect the wire harness to the door armrest assembly.
    6. NOTE: Refer to Fastener Notice .
  6. Install the armrest to the door trim panel. Secure the armrest with 4 retaining screws at the rear and 1 screw at the forward end of the armrest assembly.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

    7. Fig 4: View Of Door Panel Inner Energy Absorber
    GM1272532Courtesy of GENERAL MOTORS CORP.
  7. Install the inner energy absorber to the door panel.
  8. Install the upper trim to the door.
  9. Install the retainers at the back of the door trim panel.

    Tighten:  Tighten the retainers to 10 N.m (89 lb in).

  10. Install the door trim panel. Refer to Door Trim Panel Replacement .
