Steering Assist Component Views

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

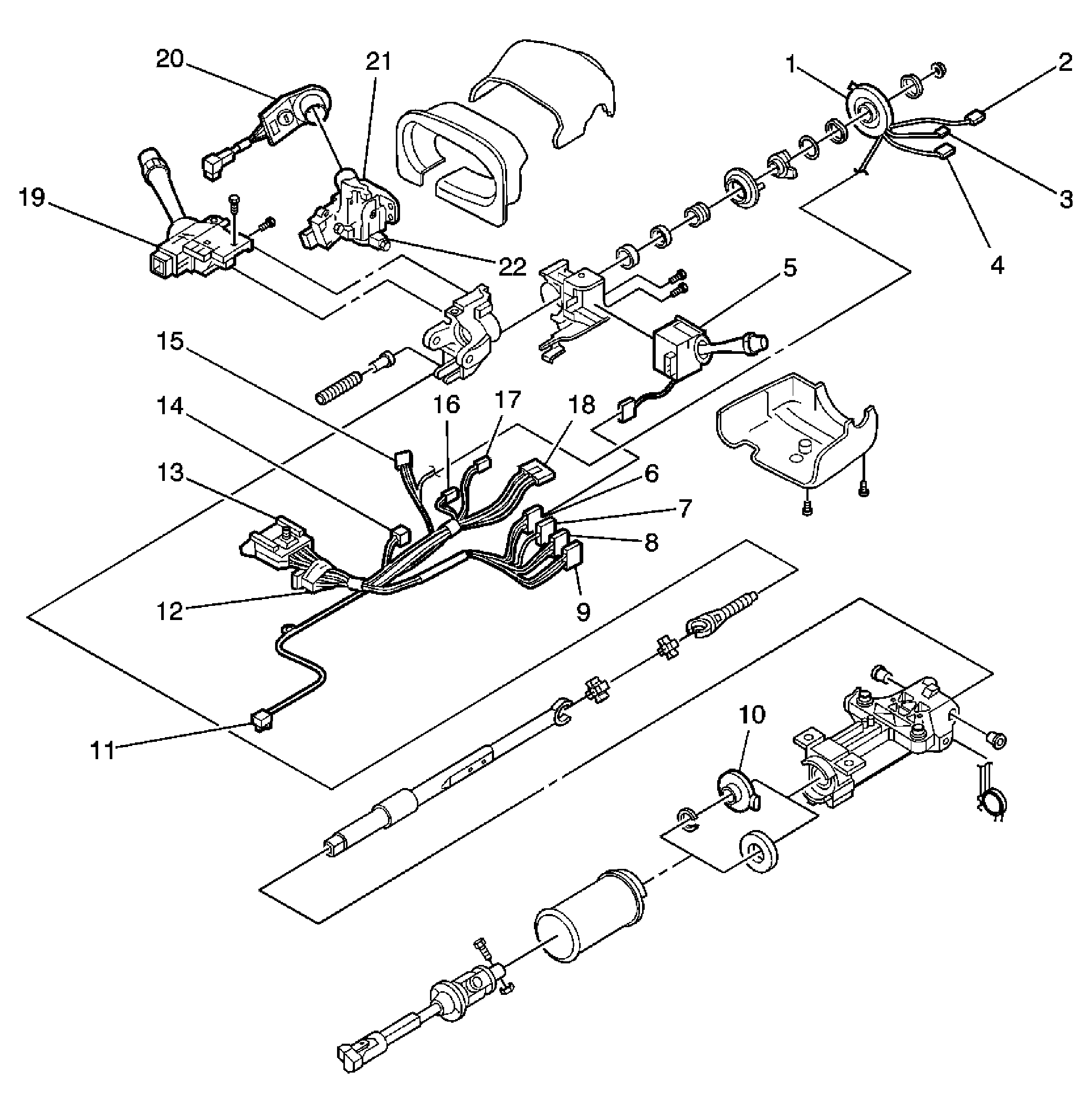

Fig 1: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	C208
3	Inflatable Restraint Steering Wheel Module Connector C1
4	Inflatable Restraint Steering Wheel Module Connector C2
5	Turn Signal/Multifunction Switch
6	Turn Signal/Multifunction Switch Connector C4 (LP1/LY7)
7	Turn Signal/Multifunction Switch Connector C3
8	Turn Signal/Multifunction Switch Connector C2
9	Turn Signal/Multifunction Switch Connector C1
10	Steering Wheel Position Sensor
11	C203
12	Fuse Block - Steering Column
13	C202
14	Theft Deterrent Control Module Connector
15	Ignition Lock Cylinder Control Actuator Connector
16	Ignition Switch Connector
17	Ignition Key Alarm Switch (Part of steering column harness)
18	Windshield Wiper/Washer Switch Connector
19	Windshield Wiper/Washer Switch
20	Theft Deterrent Control Module
21	Ignition Switch (Hidden) and Ignition Lock Cylinder Case
22	Ignition Lock Cylinder Control Actuator (M82)

Fig 2: Steering Wheel Position Sensor (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor Connector
2	Accelerator Pedal Position (APP) Sensor
3	Steering Wheel Position Sensor

Fig 3: Lower Left Side Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Rack (LHD)
2	Variable Effort Steering Actuator (LHD)
3	Variable Effort Steering Actuator Wiring Harness

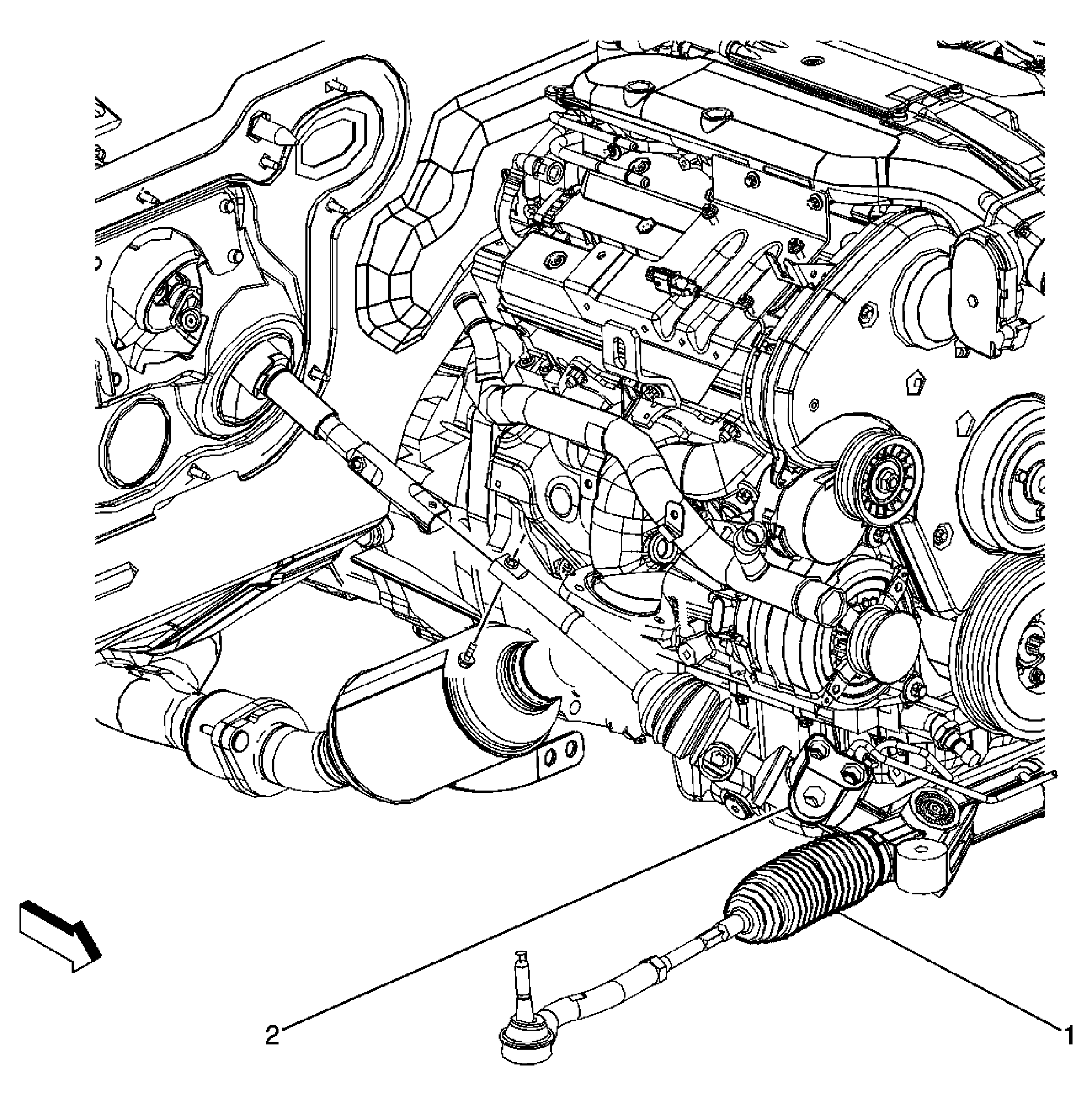

Fig 4: Variable Effort Steering Actuator (RHD w/FE3) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Rack (RHD)
2	Variable Effort Steering Actuator (RHD)
