S2L Transmission Manual Shift Switch - Left (KB7)
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

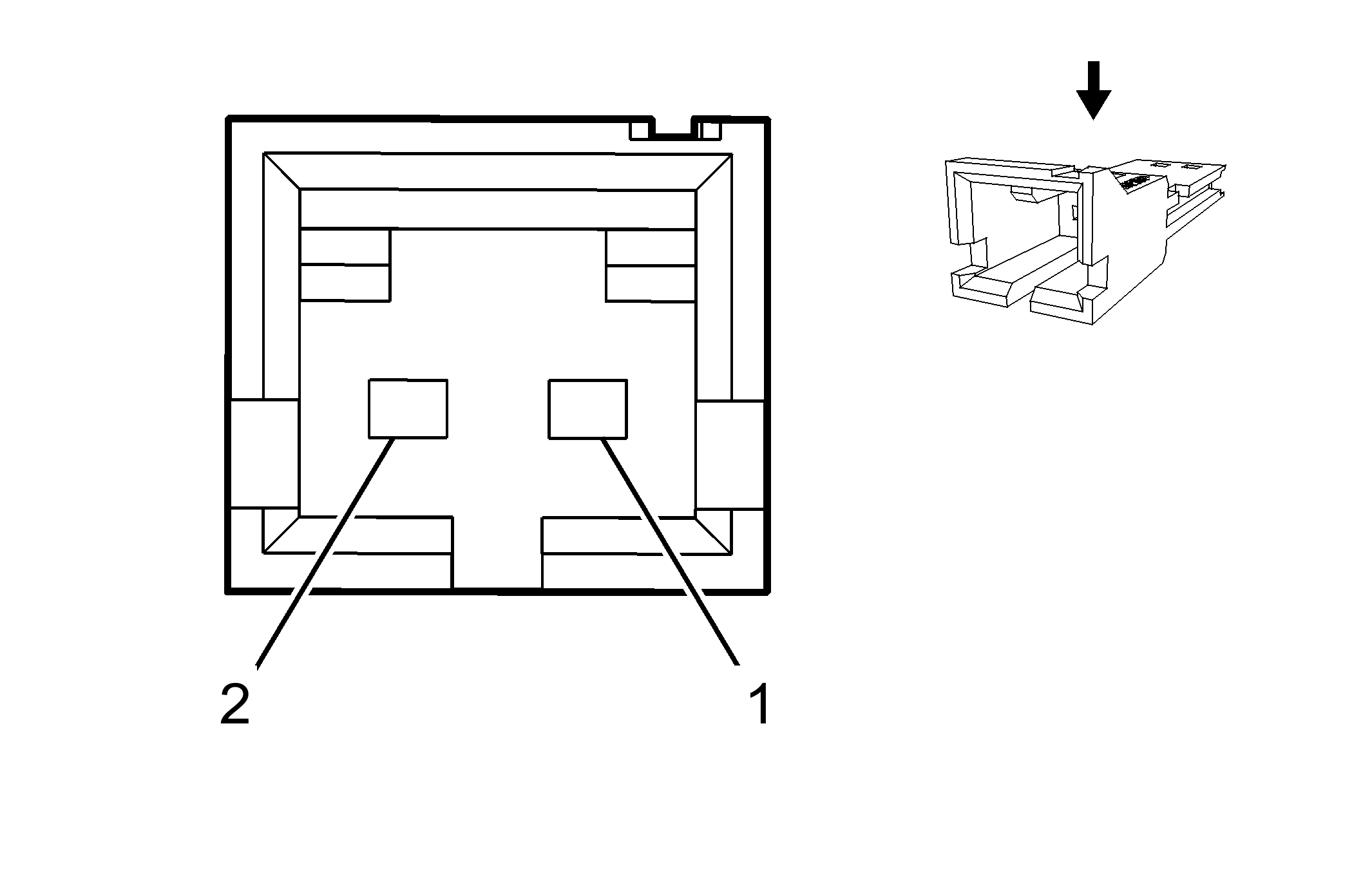

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Service by Harness - See Part Catalog | Pending | Pending | Not Available | Not Available | Not Available | Not Available |
S2L Transmission Manual Shift Switch - Left (KB7)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE | - | Remote Shift Selector Signal | I | - |
| 2 | 0.35 | PU | - | Remote Radio Control Supply Voltage | I | - |
