B7A Inside Air Temperature Sensor
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

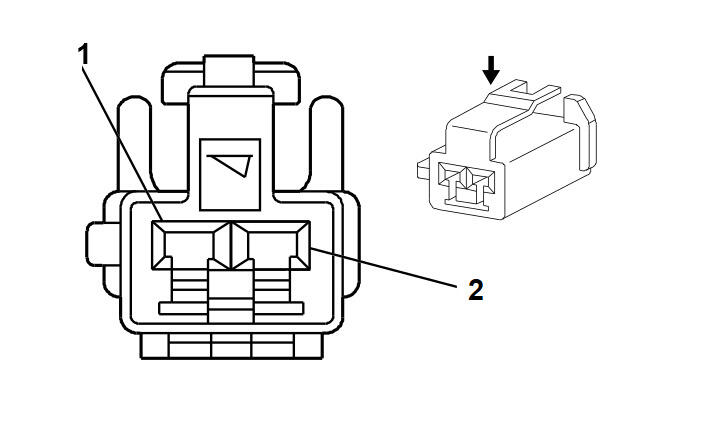

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | J-35616-18 (BK) | J-38125-553 | 7116-4020 | 11 | E | C |
B7A Inside Air Temperature Sensor
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | D-GN | 734 | Air Temperature Sensor- Inside Signal | I | - |
| 2 | 0.35 | YE | 61 | Low Reference | I | - |
