Speaker - Left Rear (UQA or UQS with W49)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

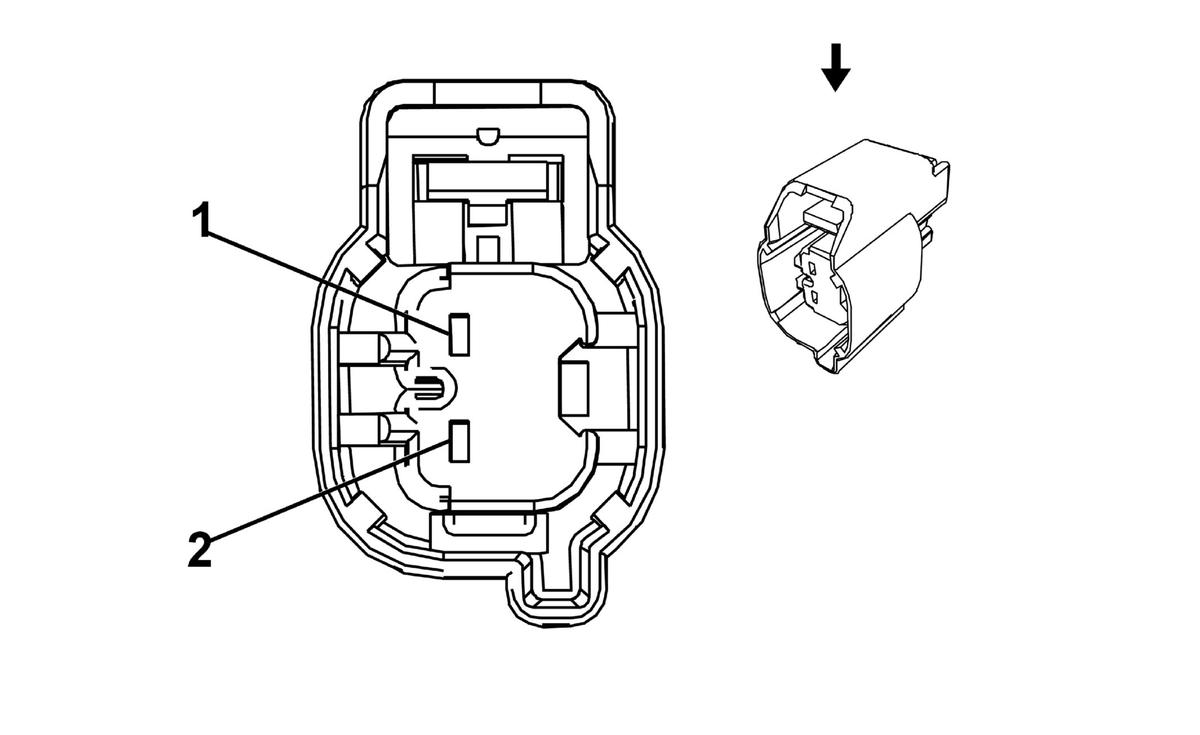

Fig 1: Speaker - Left Rear (UQA or UQS with W49) Connector End View
GM2152681Courtesy of GENERAL MOTORS CORP.
Speaker - Left Rear (UQA or UQS with W49)

Pin Wire Circuit Function
1 0.8 YE 116 Left Rear Speaker Output (-)
2 0.8 BN 199 Left Rear Speaker Output (+)
Connector Part Information
  • Harness Type: Left Rear Door
  • OEM Connector: 19168540
  • Service Connector: 13504282
  • Description: 2-Way F GT 150 Series (L-GY)
Terminal Part Information
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
