Antilock Brake System Schematics

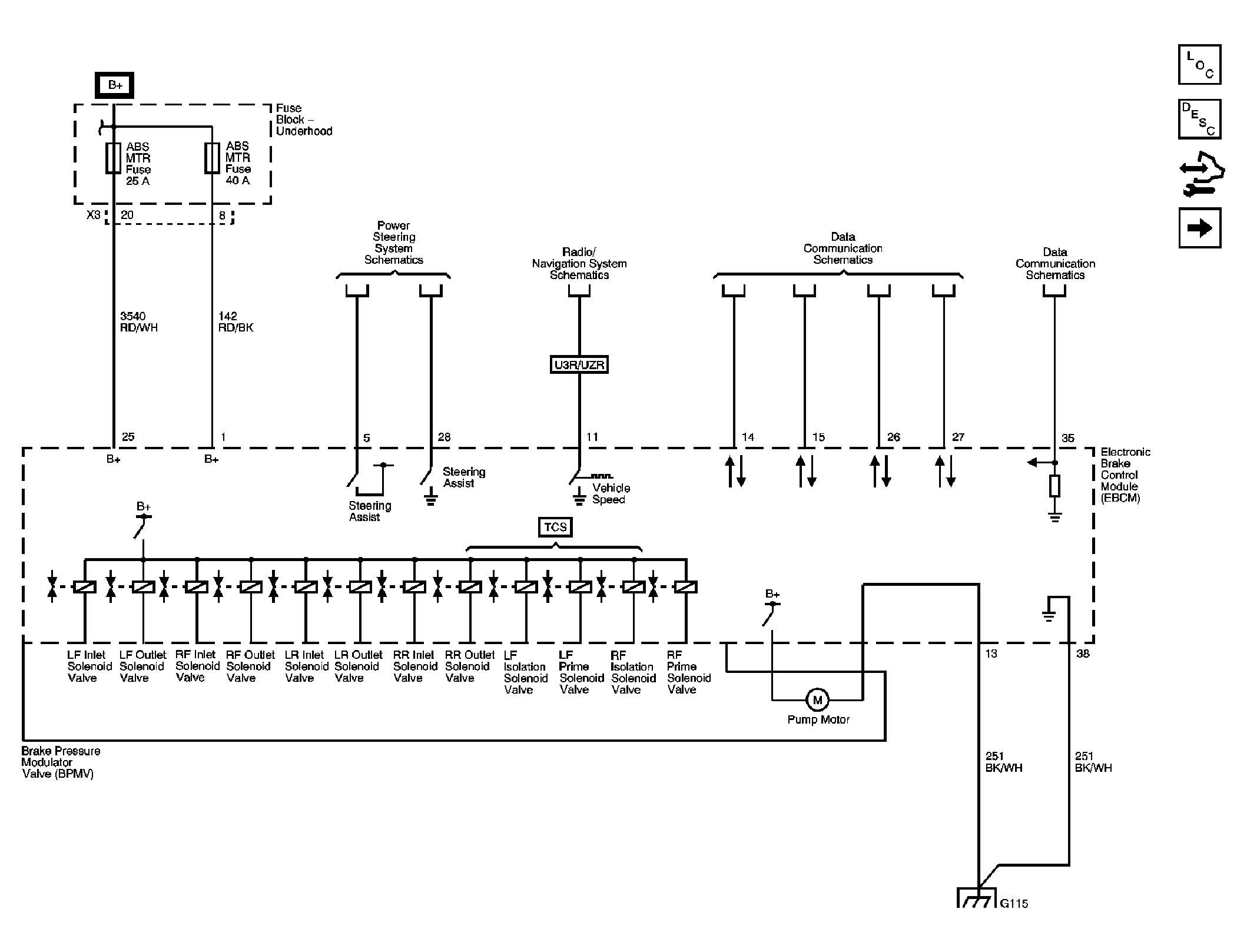

Fig 1: Module Power And Ground, Subsystem References - Schematic
GM1843917Courtesy of GENERAL MOTORS CORP.

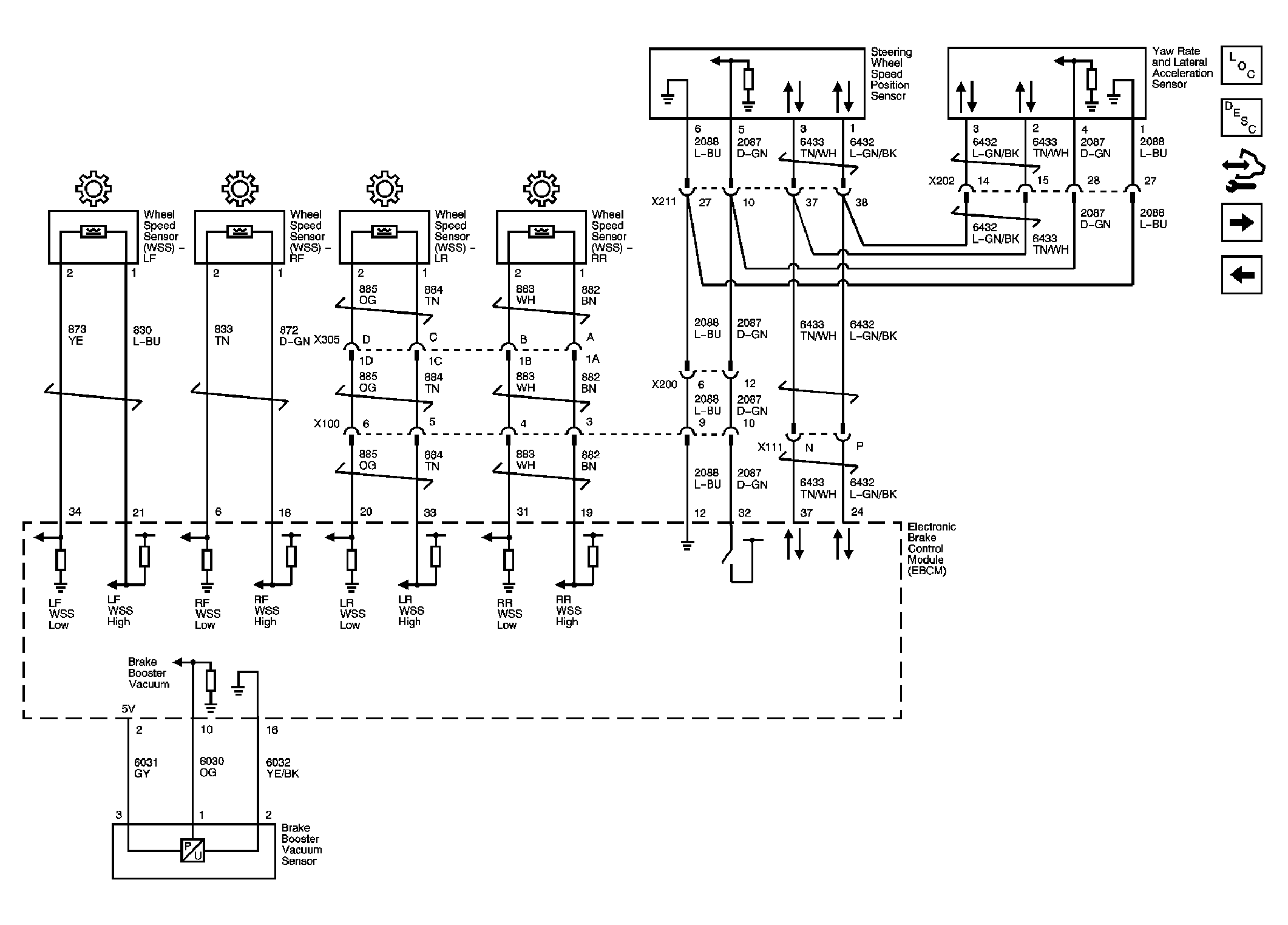

Fig 2: Sensors - Schematic
GM1843918Courtesy of GENERAL MOTORS CORP.
Fig 3: TCS Control And Indicators - Schematic
GM1843919Courtesy of GENERAL MOTORS CORP.
