Home >> GMC >> 2006 >> Envoy 5.3 M, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock System >> Schematic and Routing Diagrams >> Automatic Transmission Shift Lock Control Schematics

Automatic Transmission Shift Lock Control Schematics

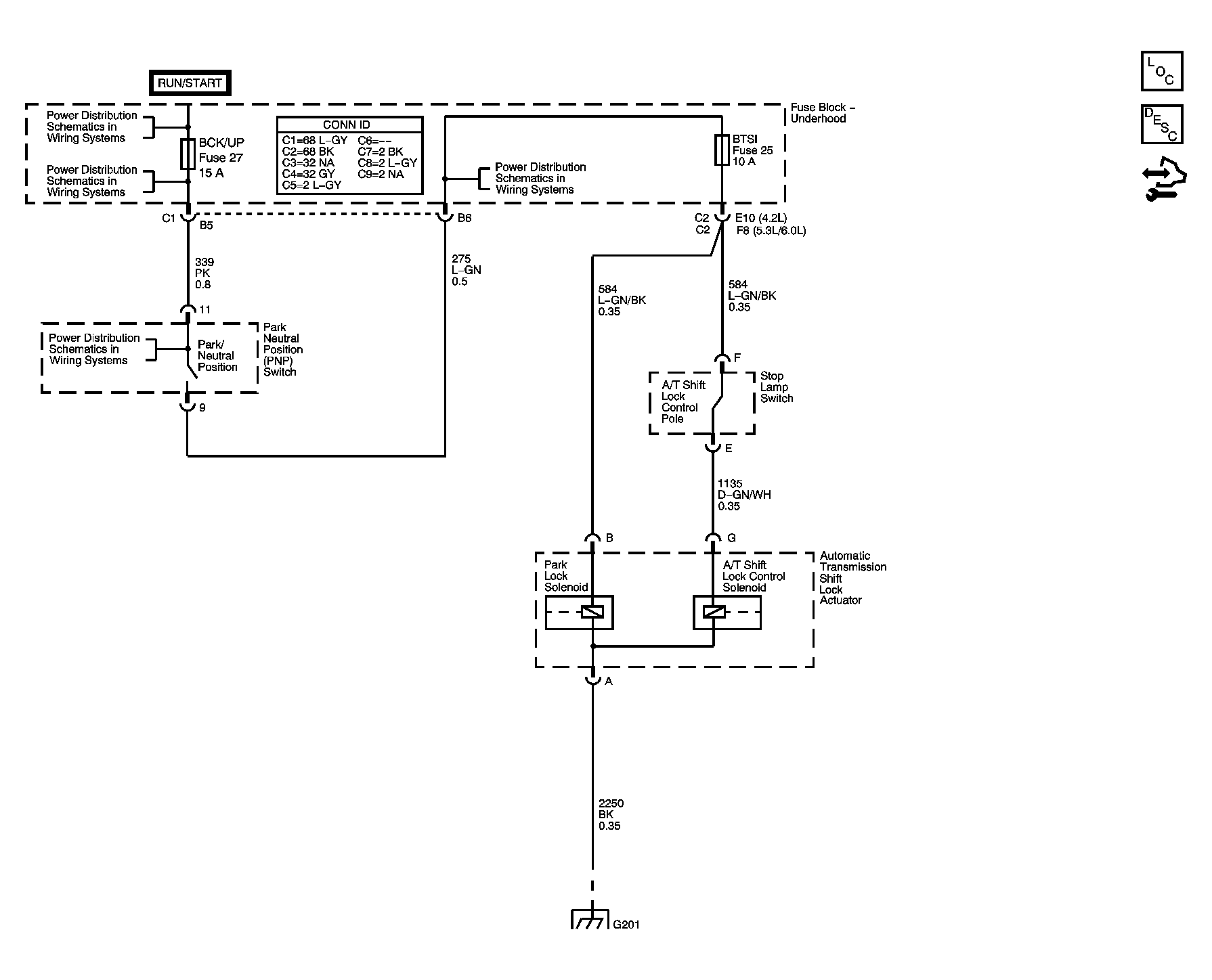

Fig 1: A/T Shift Lock Control Schematic

GM1594399

Courtesy of GENERAL MOTORS CORP.
