Installation Procedure

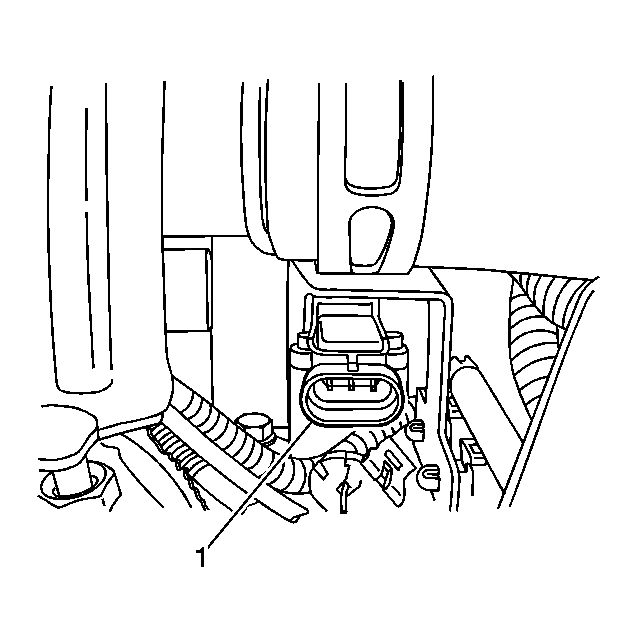

    Fig 1: View Of Barometric Pressure Sensor
    GM1409330Courtesy of GENERAL MOTORS CORP.
  1. Push the BARO sensor (1) upward in order to remove it from the bracket.
    2. Fig 2: View Of Barometric Pressure Sensor Electrical Connector
    GM1334921Courtesy of GENERAL MOTORS CORP.
  2. Connect the BARO sensor electrical connector.
