Fuel Sender Assembly

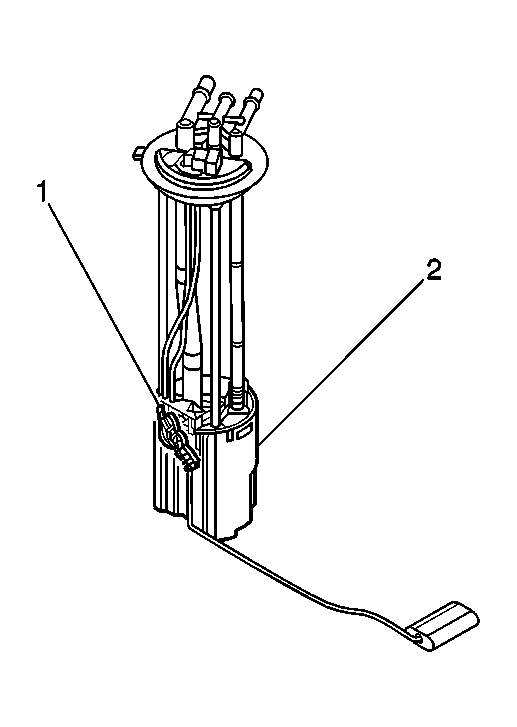

Fig 1: Fuel Level Sensor & Fuel Strainer (Single Tank)

Courtesy of GENERAL MOTORS CORP.

The fuel sender consists of the following major components:

• The fuel level sensor (1)
• The fuel strainer (2)

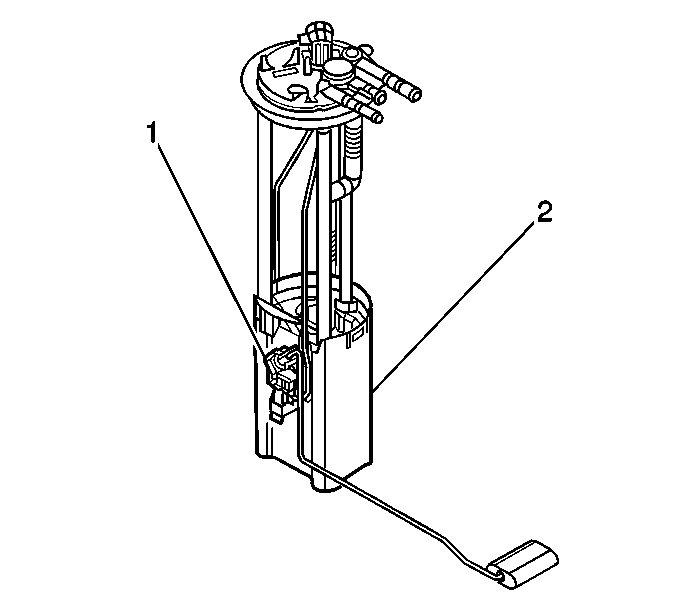

Fig 2: Fuel Level Sensor & Fuel Strainer (Duel Tanks)

Courtesy of GENERAL MOTORS CORP.

The auxiliary fuel sender on vehicles equipped with dual fuel tanks consists of the following major components:

• The fuel level sensor (1)
• The fuel strainer (2)
