Installation Procedure

WARNING: This page is about a different variant/trim than selected.

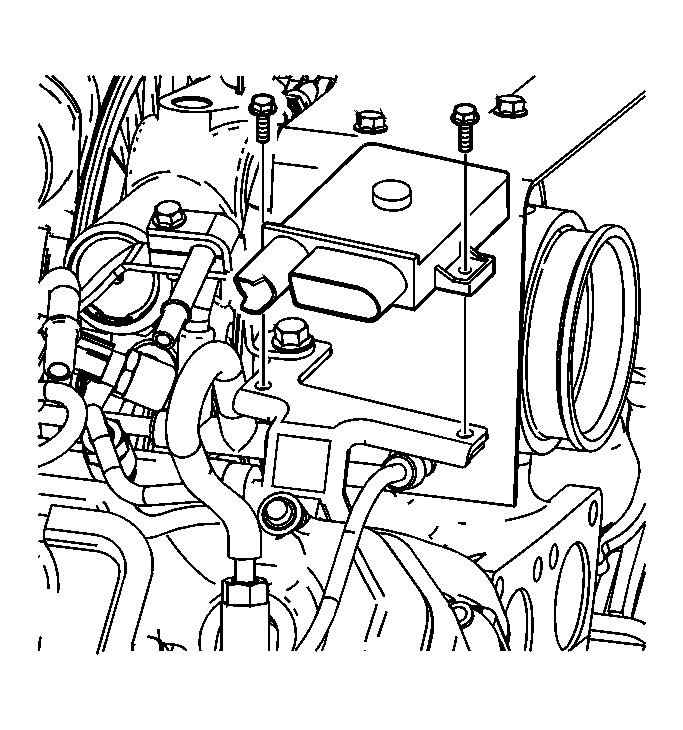

    Fig 1: View Of Glow Plug Controller Bolts
    GM1336490Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the glow plug controller.
  2. Install the glow plug controller bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

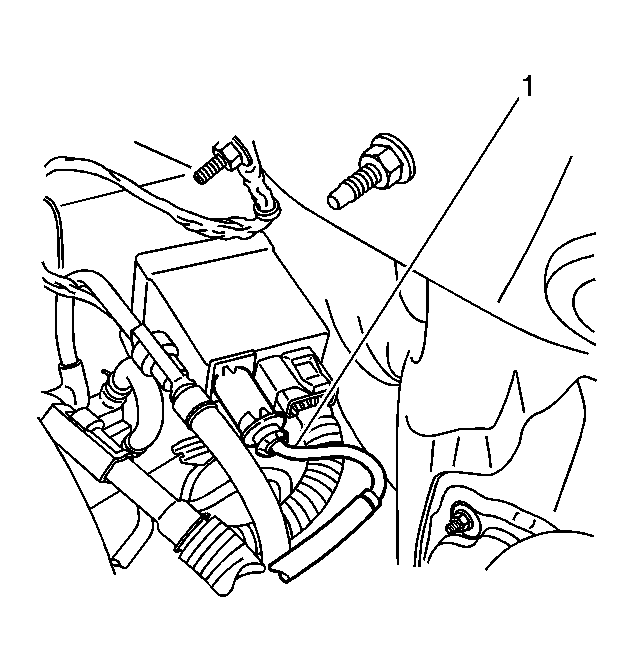

    3. Fig 2: Glow Plug Controller Battery Feed Electrical Connector
    GM1409333Courtesy of GENERAL MOTORS CORP.
  3. Connect the glow plug controller battery feed electrical connector (1).

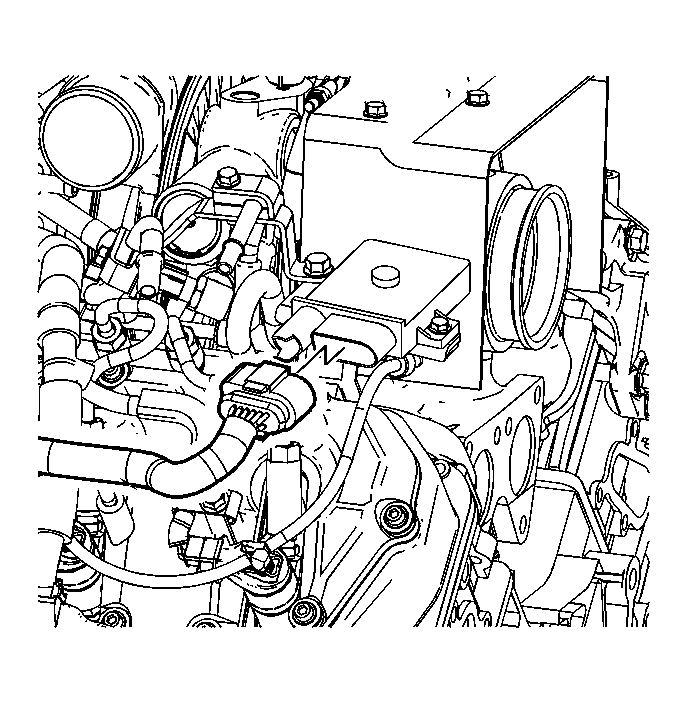

    4. Fig 3: View Of Glow Plug Controller Electrical Connectors
    GM1335531Courtesy of GENERAL MOTORS CORP.
  4. Connect the glow plug controller electrical connector.
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) in Engine Electrical.
