Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Automatic Headlamp Dimming Relay Connector End View (TT6)

GM1523979Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7223-6055-30
  • 5-Way F ISO Relay
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
30 L-GN 11 Headlamp High Beam Supply Voltage
85 BK/WH 151 Signal Ground
86 RD/WH 2140 Battery Positive Voltage
87 PU 6858 Headlamp Automatic High Beam Dim Supply Voltage
Back Up Lamp - Left Connector End View

GM898467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7900-1493-004
  • Service:
  • 3-Way F Slide Side Switch (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 L-GN 24 Backup Lamp Supply Voltage
2 - - Not Used
3 BK 850 Ground
Back Up Lamp - Right Connector End View

GM898467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7900-1493-004
  • Service:
  • 3-Way F Slide Side Latch (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 L-GN 24 Backup Lamp Supply Voltage
2 - - Not Used
3 BK 850 Ground
Brake Pedal Position Sensor Connector End View

GM1243663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332132
  • Service: 88953364
  • 3-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BN 5360 Brake Apply Sensor Low Reference
B YE 5361 Brake Apply Sensor Signal
C WH 5359 Brake Apply Sensor Supply Voltage
Center High Mounted Stop Lamp (CHMSL) Connector End View

GM816551Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059252
  • Service: 12102749
  • 2-Way M Metri-Pack 150 Series (RD)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A WH 17 Stop Lamp Switch Signal
B BK 850 Ground
Courtesy Lamp - Left Footwell Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
Courtesy Lamp - Left Front Door Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU/WH 5754 Driver Door Exterior Courtesy Lamp Supply Voltage
B L-BU/WH 6576 Driver Door Courtesy Lamp Control Low
Courtesy Lamp - Left Rear Door Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
Courtesy Lamp - Rear Compartment Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A - - Not Used
B OG/BK 737 Trunk Lamp Control
C D-BU/WH 149 Courtesy Lamp Supply Voltage
Courtesy Lamp - Right Footwell Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
Courtesy Lamp - Right Front Door Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU/WH 5754 Driver Door Exterior Courtesy Lamp Supply Voltage
B L-BU/WH 6576 Driver Door Courtesy Lamp Control Low
Courtesy Lamp - Right Rear Door Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
Fog Lamp - LF Connector End View

GM95869Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059885
  • Service:
  • 1-Way M Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
- YE 2234 Front Fog Lamp Supply Voltage
- BK 250 Ground
Fog Lamp - LR Connector End View (w/TT7/TT8)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service:
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A OG 122 Rear Fog Lamp Supply Voltage
B BK 250 Ground
Fog Lamp - RF Connector End View

GM95869Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059885
  • Service:
  • 1-Way M Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
- YE 2234 Front Fog Lamp Supply Voltage
- BK 250 Ground
Fog Lamp - RR Connector End View (w/TT7/TT8)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service:
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A OG 122 Rear Fog Lamp Supply Voltage
B BK 250 Ground
Hazard Switch Connector End View

GM814536Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174966-2
  • Service:
  • 4-Way F Multi-Lock Amp (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 WH 111 Hazard Switch Signal
2 BK 450 Ground
3 YE 1491 Backlight Lamp Control
4 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
Headlamp Leveling Actuator - Left Connector End View (w/TT7/TT8)

GM1413059Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6189-0227
  • Service:
  • 6-Way F .090 Class 2 Sealed Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 GY 5179 Left Headlamp Leveling Motor (4)
2 L-BU/BK 5752 Left Headlamp Leveling Motor Low Reference
3 OG/BK 5177 Left Headlamp Leveling Motor (2)
4 PU/WH 5178 Left Headlamp Leveling Motor (3)
5 - - Not Used
6 YE/BK 5176 Left Headlamp Leveling Motor (1)
Headlamp Leveling Actuator - Right Connector End View (w/TT7/TT8)

GM1413059Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6189-0227
  • Service:
  • 6-Way F .090 Class 2 Sealed Series (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 GY/BK 5183 Right Headlamp Leveling Motor (4)
2 L-GN/BK 5753 Right Headlamp Leveling Motor Low Reference
3 PK/BK 5181 Right Headlamp Leveling Motor (2)
4 OG/WH 5182 Right Headlamp Leveling Motor (3)
5 - - Not Used
6 BN/WH 5180 Right Headlamp Leveling Motor (1)
Headlamp Ballast - Left Connector End View (Low Beam w/HID)

GM833729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10757671
  • Service:
  • 3-Way F Apex 2.8 (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 YE 712 Left Headlamp Low Beam Supply Voltage
Headlamp Ballast - Right Connector End View (Low Beam w/HID)

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10757671
  • Service:
  • 3-Way F Apex 2.8 (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 YE 312 Right Headlamp Low Beam Supply Voltage
Headlamp High Beam - Left Connector End View

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN 711 Left Headlamp High Beam Supply Voltage
B BK 250 Ground
Headlamp High Beam - Right Connector End View

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN 311 Right Headlamp High Beam Supply Voltage
B BK 250 Ground
Headlamp Leveling Module Connector End View (w/TT7/TT8)

GM39784Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129225
  • Service: NS
  • 24-Way F Micro-Pack 100 Series Sealed (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 GY/BK 5183 Right Headlamp Leveling Motor (4)
2 OG/WH 5182 Right Headlamp Leveling Motor (3)
3 PK/BK 5181 Right Headlamp Leveling Motor (2)
4 BN/WH 5180 Right Headlamp Leveling Motor (1)
5 L-GN/BK 5753 Right Headlamp Leveling Motor Low Reference
6 YE 5727 High Speed GMLAN Serial Data Wake Up (w/K59)
7 OG/BK 1208 Left Rear Strut Position Sensor Voltage Reference (w/o F55)
8 L-GN/WH 1210 Left Rear Strut Position Sensor Signal (w/o F55)
9 L-GN/BK 1209 Left Rear Strut Position Sensor Low Reference (w/o F55)
10 TN 2501 High Speed GMLAN Serial Data (-) (1)
11 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
12 RD/WH 340 Battery Positive Voltage
13 GY 5179 Left Headlamp Leveling Motor (4)
14 PU/WH 5178 Left Headlamp Leveling Motor (3)
15 OG/BK 5177 Left Headlamp Leveling Motor (2)
16 YE/BK 5176 Left Headlamp Leveling Motor (1)
17 L-BU/BK 5752 Left Headlamp Leveling Motor Low Reference
18 - - Not Used
19 PU/WH 1205 Left Front Strut Position Sensor Voltage Reference (w/o F55)
20 TN/WH 1207 Left Front Strut Position Sensor Signal (w/o F55)
21 L-BU/BK 1206 Left Front Strut Position Sensor Low Reference (w/o F55)
22 TN 2501 High Speed GMLAN Serial Data (-) (1)
23 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
24 BK 250 Ground
Headlamp Low Beam - Left Connector End View (w/o HID)

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 712 Left Headlamp Low Beam Supply Voltage
B BK 250 Ground
Headlamp Low Beam - Right Connector End View (w/o HID)

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 312 Right Headlamp Low Beam Supply Voltage
B BK 250 Ground
I/P Compartment Lamp Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059247
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU 175 Glove Box Lamp Control
B D-BU/WH 149 Courtesy Lamp Supply Voltage

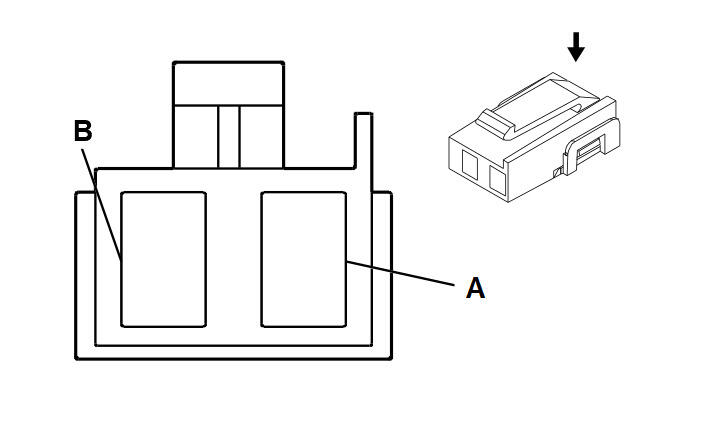

I/P Compartment Lamp Switch Connector End View

GM258297Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12015197
  • Service: 12102626
  • 2-Way F Metri-Pack 280 Series (BU)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BK/WH 451 Ground
B PU 175 Glove Box Lamp Control
I/P Dimmer Switch Connector End View (w/UV6)

GM1492425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: HCMPB-12-K
  • Service:
  • 12-Way F JST (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-GN 44 Low Reference
2 L-BU/BK 1688 Instrument Panel Lamp Dimmer Switch Signal
3 PK/BK 1597 Interior Lamp Switch On Signal
4 TN 2382 Night Vision Image Dimming Signal
5 L-GN/BK 5699 Head Up Display Switch Low Reference
6 BN 2383 Night Vision Image Down Signal
7 PK 2384 Night Vision Image Up Signal
8 BN 897 Driver Information Center Switch Low Reference
9 D-GN/WH 1358 Driver Information Center Switch Signal
10 D-BU 894 Driver Information Center Toggle Switch Signal
11 YE 1491 Backlight Lamp Control
12 BK/WH 351 Ground
I/P Dimmer Switch Connector End View (w/o UV6)

GM1492423Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: HCMPB-A12-S
  • Service:
  • 12-Way F JST (WH)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-GN 44 Low Reference
2 L-BU/BK 1688 Instrument Panel Lamp Dimmer Switch Signal
3 PK/BK 1597 Interior Lamp Switch On Signal
4-7 - - Not Used
8 BN 897 Driver Information Center Switch Low Reference
9 D-GN/WH 1358 Driver Information Center Switch Signal
10 D-BU 894 Driver Information Center Toggle Switch Signal
11 YE 1491 Backlight Lamp Control
12 BK/WH 351 Ground
License Lamp - Left Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15300027
  • Service: 12101855
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 32 Instrument Panel Lamp Fuse Supply Voltage (1)
B BK 850 Ground
License Lamp - Right Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15300027
  • Service: 12101855
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 32 Instrument Panel Lamp Fuse Supply Voltage (1)
B BK 850 Ground
Overhead Courtesy/Reading Lamps - Front Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
C BK 850 Ground
Overhead Courtesy/Reading Lamps - Rear Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 157 Interior Lamp Control
C BK 850 Ground
Park Lamp - LF Connector End View

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530676
  • Service:
  • 2-Way F (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BN 1472 Park Lamp Supply Voltage
B BK 250 Ground
Park Lamp - RF Connector End View

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530676
  • Service:
  • 2-Way F (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BN 1473 Park Lamp Supply Voltage
B BK 250 Ground
Repeater Lamp - Left Connector End View

GM1243632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336195
  • Service:
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-BU/WH 519 Front Lamp Signal
2 BK 250 Ground
Repeater Lamp - Right Connector End View

GM1243632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336195
  • Service:
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-BU/WH 519 Front Lamp Signal
2 BK 250 Ground
Side Marker Lamp - LF Connector End View

GM1420763Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 61802915
  • Service:
  • 2-Way F 90 Type Series (BU)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage
2 BK 250 Ground
Side Marker Lamp - LR Connector End View

GM1420763Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 61802915
  • Service:
  • 2-Way F 90 Type Series (BU)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BK 1050 Ground
2 PU 709 Left Park Lamp Supply Voltage
Side Marker Lamp - RF Connector End View

GM1420763Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 61802915
  • Service:
  • 2-Way F 90 Type Series (BU)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 BK 250 Ground
Side Marker Lamp - RR Connector End View

GM1420763Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 61802915
  • Service:
  • 2-Way F 90 Type Series (BU)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BK 1050 Ground
2 BN/WH 309 Right Park Lamp Supply Voltage
Sunload Sensor Assembly Connector End View

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064760
  • Service: 12085208
  • 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A L-BU/BK 590 Solar Sensor Driver Signal
B GY 1548 Passenger Solar Sensor Signal
C YE 61 Outside Ambient Temperature Sensor Low Reference
D WH 278 Ambient Light Sensor Signal
Tail Lamp Assembly - Left Connector End View

GM1333935Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12077591
  • Service: 12117277
  • 5-Way F Metri-Pack 150 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU 709 Left Park Lamp Supply Voltage (w/UE1/TT6)
A PU 1472 Left Park Lamp Relay Control (w/TT7/TT8)
B YE 18 Left Rear Stop/Turn Lamp Supply Voltage
C YE/BK 1334 Left Rear Turn Signal Lamp Supply Voltage
D BK 850 Ground
E L-BU 20 Stop Lamp Supply Voltage
Tail Lamp Assembly - Right Connector End View

GM1333935Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12077591
  • Service: 12117277
  • 5-Way F Metri-Pack 150 Series Sealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BN/WH 309 Right Park Lamp Supply Voltage (w/UE1/TT6)
A BN/WH 1473 Right Park Lamp Supply Voltage (w/TT7/TT8)
B D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
C D-GN/WH 1335 Right Rear Turn Signal Lamp Supply Voltage
D BK 1050 Ground
E L-BU 20 Stop Lamp Supply Voltage
Turn Signal Lamp - LF Connector End View

GM882584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 0001035
  • Service
  • 2-Way F CE-F29.14-5A Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
2 BK 250 Ground
Turn Signal Lamp - RF Connector End View

GM882584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 0001035
  • Service
  • 2-Way F CE-F29.14-5A Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
2 BK 250 Ground
Turn Signal/Multifunction Switch - C1 Connector End View

GM39746Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064862
  • Service:
  • 8-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A D-GN/WH 1419 Right Rear Turn Signal Switch Signal
B - - Not Used
C BK 350 Ground
D YE/BK 1418 Left Rear Turn Signal Switch Signal
E - - Not Used
F L-BU/WH 1414 Left Front Turn Signal Switch Signal
G BK 350 Ground
H D-BU/WH 1415 Right Front Turn Signal Switch Signal
Turn Signal/Multifunction Switch - C2 Connector End View

GM1492427Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15418023
  • Service:
  • 5-Way M Unsealed (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
51 PK 1375 Remote Radio Control Head Accessory Supply Voltage
52 L-BU 187 Rear Fog Lamp Switch Signal
53 BK 350 Ground
54 OG 192 Front Fog Lamp Switch Signal
55 L-BU/WH 1884 Cruise Control Set/Coast/Resume/Accelerate Switch Signal
Turn Signal/Multifunction Switch - C3 Connector End View

GM811190Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15339058
  • Service:
  • 7-Way F Metri-Pack 150 Series (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
G-J - - Not Used
K BK 350 Ground
L WH 103 Headlamp Switch On Signal
M BN/WH 301 Park Lamp Switch On Signal
N PU 1783 Twilight Sentinel Delay Signal
Turn Signal/Multifunction Switch - C4 Connector End View

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059800
  • Service:
  • 5-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BN 1356 Flash To Pass Switch Signal
B BK 350 Ground
C - - Not Used
D BK 350 Ground
E L-BU 1485 Flash To Pass Switch Supply Voltage
Vanity Mirror Lamp - Left Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BK 850 Ground
B D-BU/WH 149 Courtesy Lamp Supply Voltage
Vanity Mirror Lamp - Right Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A BK 850 Ground
B D-BU/WH 149 Courtesy Lamp Supply Voltage
scientia non olet · About LEMON Manuals
