Cruise Control Component Views

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

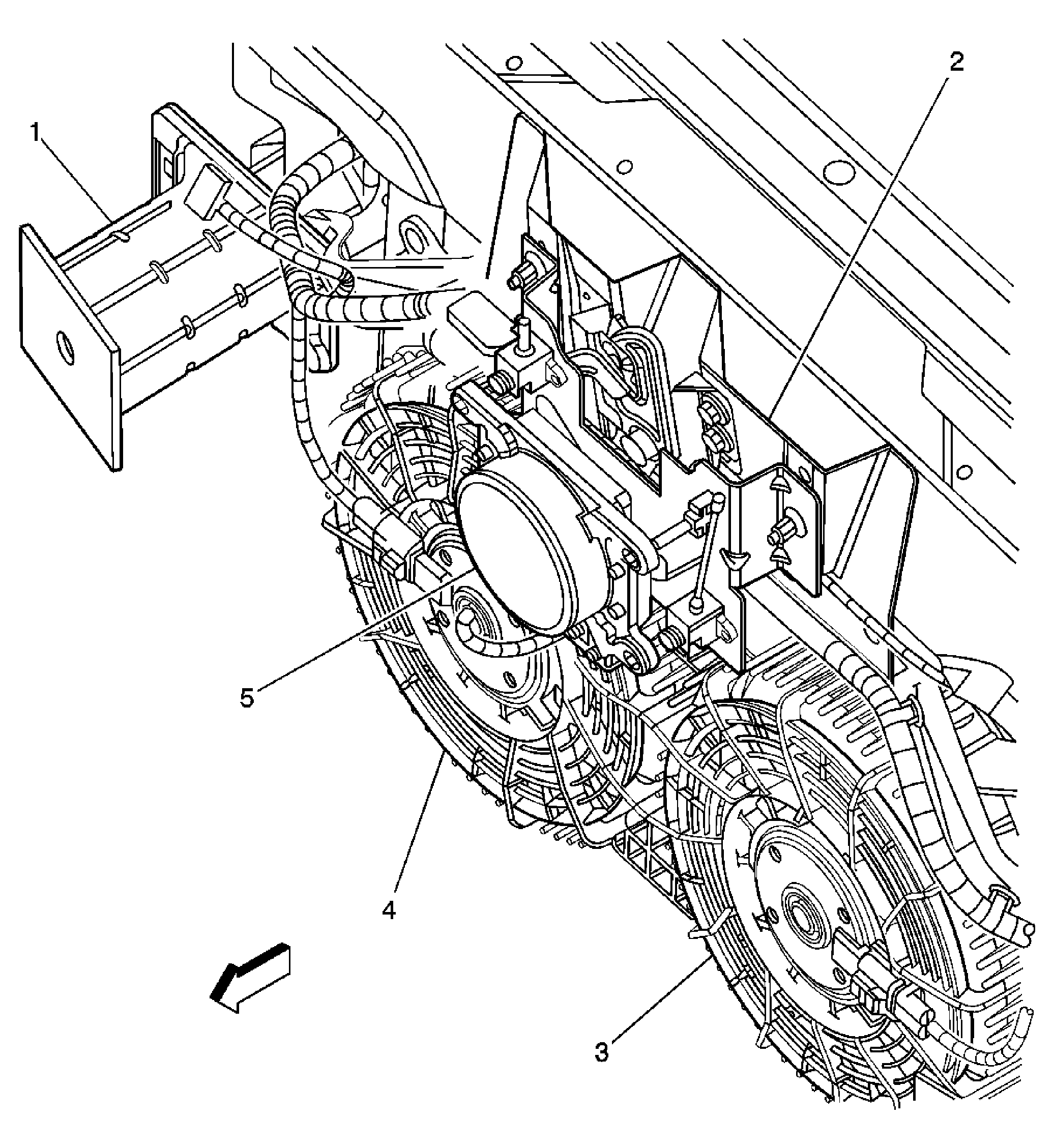

Fig 1: Cruise Control Module and Cooling Fans Component View (LH2/V92)
GM1488534Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Frame
2 Hood Latch Bracket
3 Cooling Fan - Left
4 Cooling Fan - Right
5 Distance Sensing Cruise Control Module (w/K59)
Fig 2: Steering Column and Wheel Component View
GM1488567Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Telescoping Drive Wheel
2 Steering Angle Sensor
3 Turn Signal/Multifunction Switch
4 Windshield Wiper/Washer Switch Assembly
5 Steering Wheel Controls Seek Button
6 Steering Wheel Controls Volume Button
7 C277
8 Horn Switch Connector
9 Steering Wheel Controls Mute/Source Button -or- Heated Steering Wheel Button (KA1)
10 Steering Wheel Controls Voice/Preset Button
11 Heated Steering Wheel
12 Tilt/Telescope Switch
13 Tilt Actuator
14 C202
15 Steering Column Lock Control Module (UA2)
Fig 3: Pedal Switches & Sensors Component View
GM1488592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Brake Pedal Position Sensor
3 Accelerator Pedal Position (APP) Sensor
4 Left Front Floor Panel
