Entertainment Component Views

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio and Speaker Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Center I/P
2	Radio
3	Speaker - RF I/P
4	Speaker - RF Door
5	Speaker - Rear Console
6	Speaker - RR Door
7	Speaker - LR
8	Speaker - Rear Subwoofer
9	Speaker - RR
10	Floor Console
11	Speaker - LR Door
12	Floor Panel
13	Speaker - LF Door
14	Speaker - LF I/P

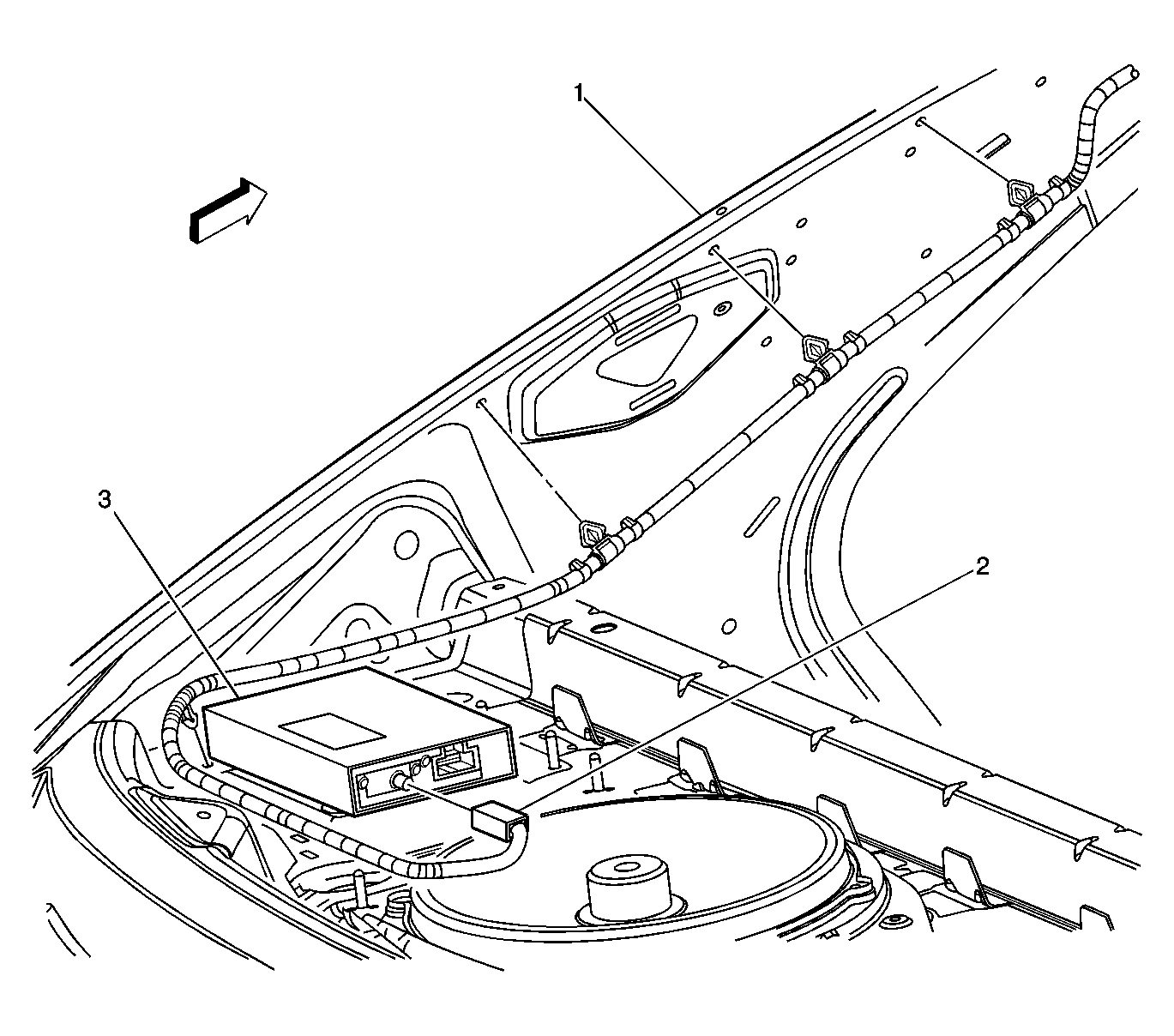

Fig 2: Digital Radio Receiver Component View (U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Side C-Pillar
2	Digital Radio Receiver Connector Coax
3	Digital Radio Receiver

Fig 3: Audio Amplifier Component View (UX8/UY5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Quarter Panel
2	Audio Amplifier

Fig 4: Top of Rear Window Component View (UE1/U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	VICS-FM3 Antenna
2	Radio Antenna Module
3	Rear Window Defogger Grid
4	AM/FM 1 Antenna
5	FM 2 Antenna
6	Roof Rail

Fig 5: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Courtesy/Reading Lamps-Front
2	Garage Door Opener (UG1)
3	Keyless Entry Antenna-Headliner
4	Sunroof Control Module (CF5)
5	Overhead Courtesy/Reading Lamps-Rear
6	Rear Parking Assist (RPA) Display (UD7)
7	Sunroof Assembly (CF5)
8	Top of Headliner
9	Noise Compensation Microphone (UY5)
10	Sunroof Switches (CF5)

Fig 6: Rear of the Roof Component View (UE1/U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof
2	Cellular, Navigation, and Digital Radio Antenna - if equipped
3	LR Fender Panel

Fig 7: Steering Column and Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Telescoping Drive Wheel
2	Steering Angle Sensor
3	Turn Signal/Multifunction Switch
4	Windshield Wiper/Washer Switch Assembly
5	Steering Wheel Controls Seek Button
6	Steering Wheel Controls Volume Button
7	C277
8	Horn Switch Connector
9	Steering Wheel Controls Mute/Source Button -or- Heated Steering Wheel Button (KA1)
10	Steering Wheel Controls Voice/Preset Button
11	Heated Steering Wheel
12	Tilt/Telescope Switch
13	Tilt Actuator
14	C202
15	Steering Column Lock Control Module (UA2)

Fig 8: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Motor Assembly - Driver: Horizontal Motor and Position Sensor (AL2)
2	Speaker - Driver Seat Right (UY5)
3	Cooled Seat Blower Motor - Driver Back (KB6)
4	Speaker - Driver Seat Left (UY5)
5	Lumbar Motor Assembly - Driver: Vertical Motor and Position Sensor (AL2)
6	Heated Seat Element - Driver Back (KA1)
7	Heated Seat Element - Driver Cushion (KA1)
8	Lumbar Adjuster Switch - Driver (AL2)
9	Seat Recliner Switch
10	Seat Adjuster Switch - Driver
11	Cooled Seat Blower Motor - Driver Cushion (KB6)
11	Cooled Seat Blower Motor - Driver Cushion (KB6)
12	Seat Rear Vertical Motor - Driver
13	Seat Rear Vertical Position Sensor - Driver (A45)
14	Seat Front Vertical Position Sensor - Driver (A45)
15	Seat Horizontal Motor - Driver
16	Seat Horizontal Position Sensor - Driver (A45)
17	Seat Front Vertical Motor - Driver
18	Memory Seat Module (A45)
19	Seat Belt Pretensioner
20	Seat Recliner Motor Driver (w/oA45) or Seat Recline Motor Assembly (A45)

Fig 9: Front Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Passenger Seat Right (UY5)
2	Cooled Seat Blower Motor - Passenger Back (KB6)
3	Speaker - Passenger Seat Left (UY5)
4	Lumbar Horizontal Motor - Passenger
5	Seat Recliner Motor - Passenger
6	Seat Belt Pretensioner
7	Climate Control Seat Module - Passenger (KA1/KB6)
8	Cooled Seat Blower Motor - Passenger Cushion (KB6)
8	Cooled Seat Blower Motor - Passenger Cushion (KB6)
9	Seat Adjuster Switch - Passenger
9	Seat Adjuster Switch - Passenger
10	Seat Recliner Switch
11	Seat Front Vertical Motor - Passenger
12	Seat Rear Vertical Motor - Passenger
13	Seat Horizontal Motor - Passenger
14	Lumbar Adjuster Switch - Passenger (AL2)
14	Lumbar Adjuster Switch - Passenger (AL2)
15	Heated Seat Element - Passenger Cushion (KA1)
16	Heated Seat Element - Passenger Back (KA1)
