Power Seat Systems Component Views

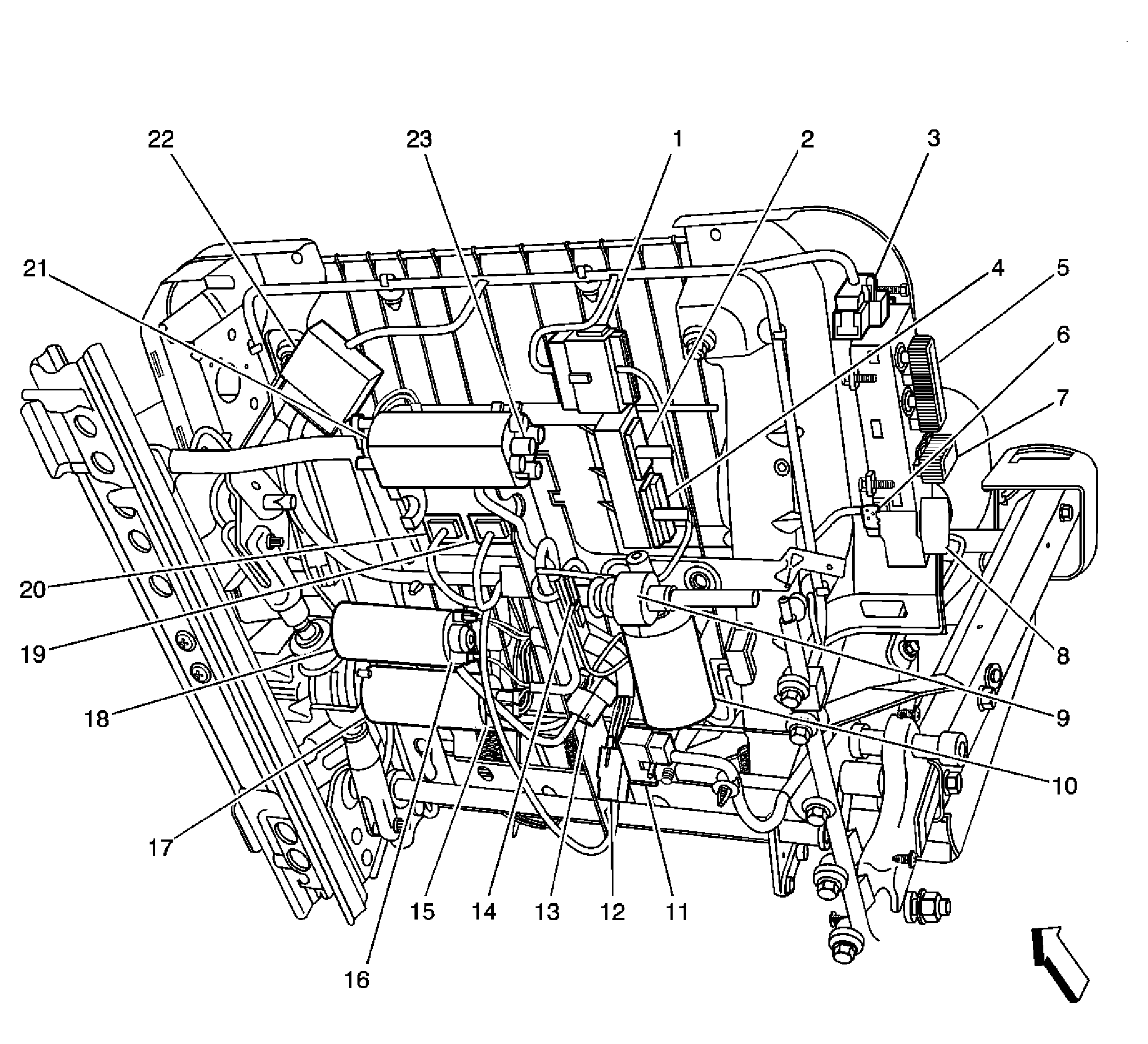

| Callout | Component Name |
|---|---|
| 1 | C321 |
| 2 | Memory Seat Module - C4 |
| 3 | Seat Adjuster Switch Connector - Driver |
| 4 | Memory Seat Module - C3 |
| 5 | Seat Adjuster Switch - Driver |
| 6 | Seat Bolster/Lumbar Switch Connector - Driver |
| 7 | Seat Adjuster Switch - Driver |
| 8 | Seat Bolster/Lumbar Switch - Driver |
| 9 | Seat Recline Position Sensor - Driver |
| 10 | Seat Recliner Motor - Driver |
| 11 | C305 |
| 12 | C323 |
| 13 | C325 |
| 14 | C322 |
| 15 | Seat Rear Vertical Motor Position Sensor - Driver |
| 16 | Seat Front Vertical Motor Position Sensor - Driver |
| 17 | Seat Rear Vertical Motor - Driver |
| 18 | Seat Front Vertical Motor - Driver |
| 19 | Memory Seat Module - C2 |
| 20 | Memory Seat Module - C1 |
| 21 | Seat Horizontal Motor - Driver |
| 22 | C320 |
| 23 | Seat Horizontal Motor Seat Position Sensor - Driver |

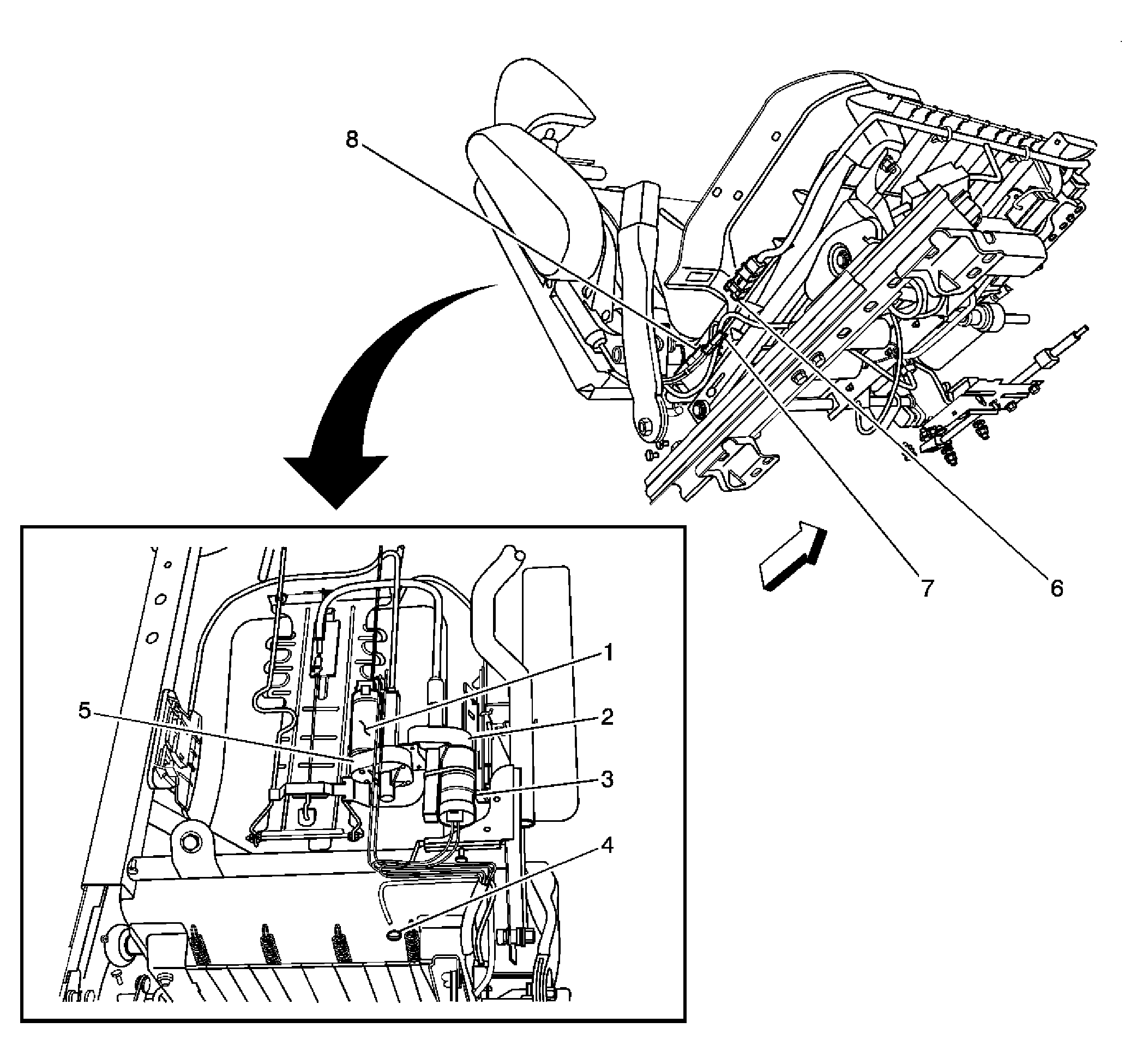

| Callout | Component Name |
|---|---|
| 1 | Seat Bolster Motor - Driver |
| 2 | Seat Lumbar Motor/Position Sensor - Driver |
| 3 | Seat Lumbar Motor - Driver |
| 4 | Heated Seat Element - Driver Cushion |
| 5 | Seat Bolster Motor/Position Sensor - Driver |
| 6 | C324 |
| 7 | Seat Belt Switch Connector |
| 8 | Heated Seat Element - Driver Cushion Connector |

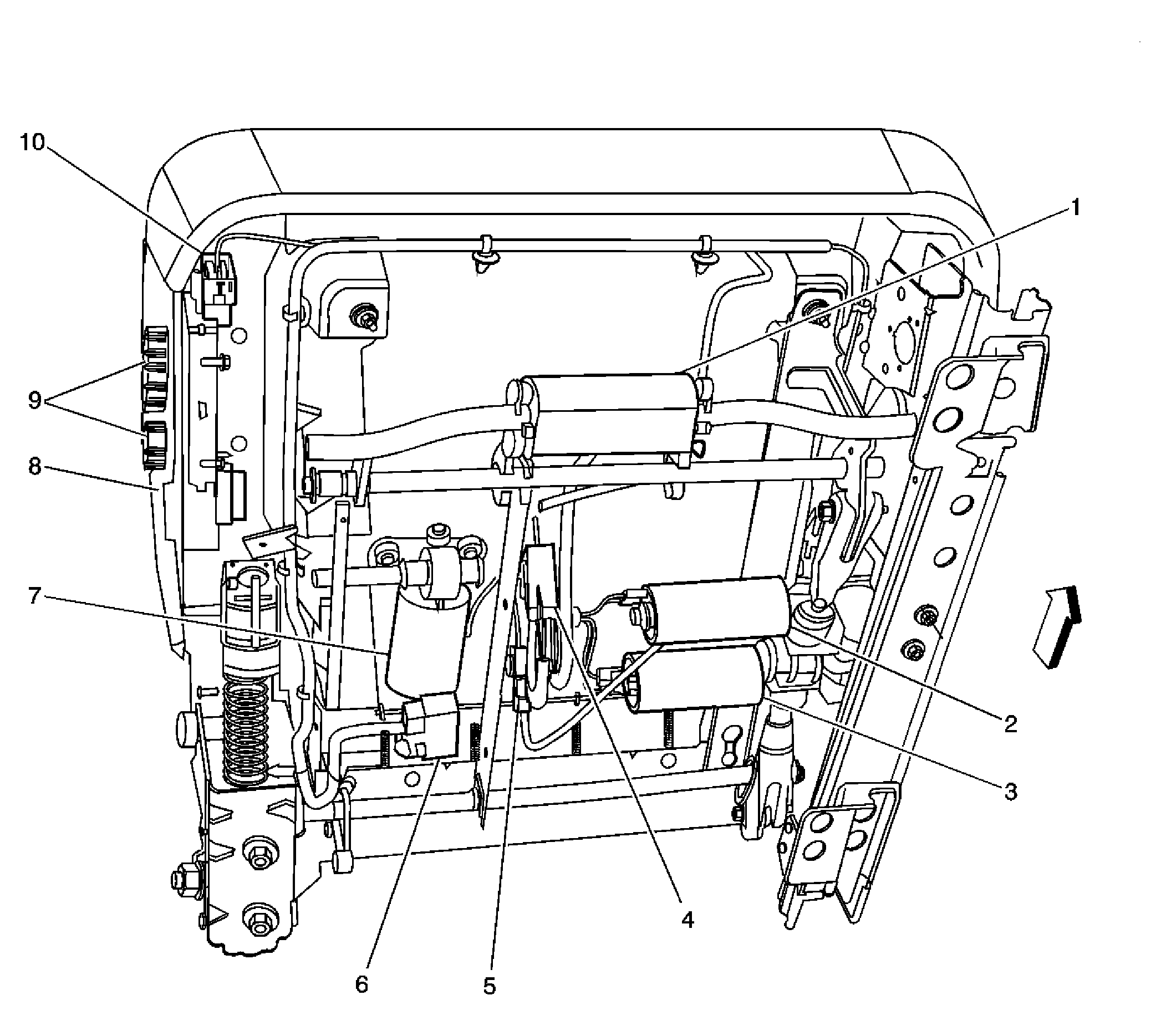

| Callout | Component Name |
|---|---|
| 1 | Seat Horizontal Motor - Passenger |
| 2 | Seat Front Vertical Motor - Passenger |
| 3 | Seat Rear Vertical Motor - Passenger |
| 4 | C388 |
| 5 | C326 |
| 6 | C399 |
| 7 | Seat Recliner Motor - Passenger |
| 8 | Seat Bolster/Lumbar Switch - Passenger |
| 9 | Seat Adjuster Switch - Passenger |
| 10 | Seat Adjuster Switch Connector |

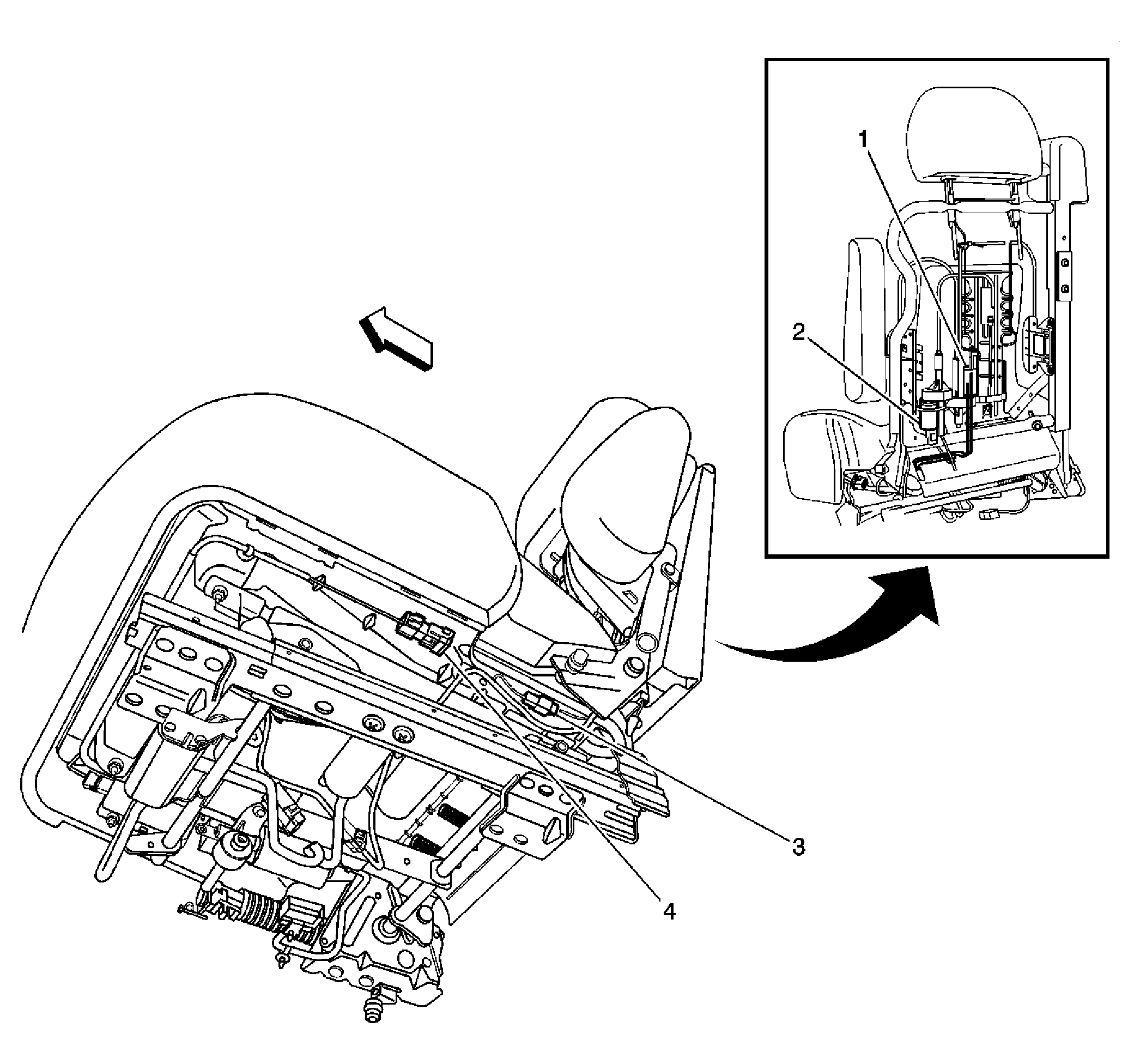

| Callout | Component Name |
|---|---|
| 1 | Seat Bolster Motor - Passenger |
| 2 | Seat Lumbar Motor - Passenger |
| 3 | Heated Seat Element - Passenger Cushion Connector |
| 4 | C329 |
| Callout | Component Name |
|---|---|
| 1 | Driver Door |
| 2 | Driver Door Module (DDM) |
| 3 | Outside Rearview Mirror - Driver |
| 4 | Window Motor - Driver |
| 5 | Speaker - LF Door |
| 6 | Memory/Heated Seat Switch Connector |
| 7 | Speaker - LF Tweeter (UQ3) |
| 8 | Door Courtesy Lamp - LF |
| 9 | Driver Door Panel |
| 10 | Memory/Heated Seat Switch |
| 11 | Door Latch Assembly - Driver |
| Callout | Component Name |
|---|---|
| 1 | Passenger Door Module (PDM) |
| 2 | Passenger Door |
| 3 | Door Latch Assembly - Passenger |
| 4 | Heated Seat Switch - Passenger |
| 5 | Door Courtesy Lamp - RF |
| 6 | Speaker - RF Tweeter (UQ3) |
| 7 | Heated Seat Switch Connector |
| 8 | Speaker - RF Door |
| 9 | Window Motor - Passenger |
| 10 | Outside Rearview Mirror - Passenger |
