Installation Procedure

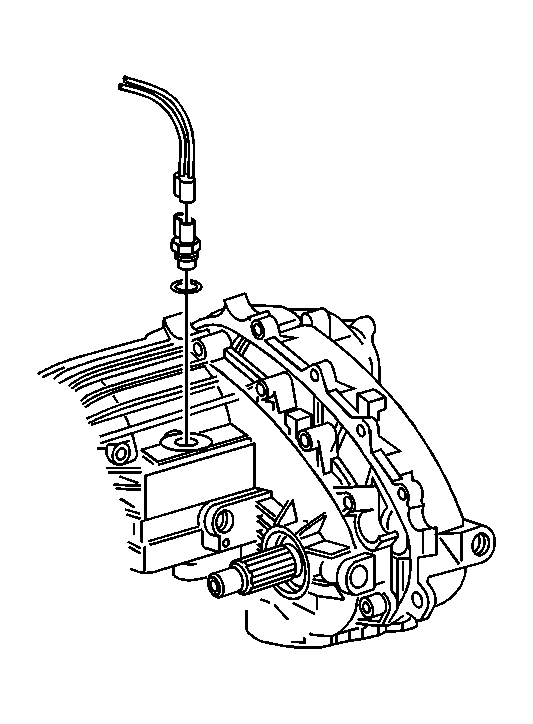

    Fig 1: View Of Transfer Case Vacuum Switch
    GM712114Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the transfer case vacuum switch

    Tighten:  Tighten the transfer case vacuum switch to 20 N.m (15 lb ft).

  2. Install the transfer case vacuum switch vacuum line.
    3. Fig 2: Locating Engine Brace Mounting Bolt
    GM648043Courtesy of GENERAL MOTORS CORP.
  3. Install the transfer case brace, if equipped.
  4. Install the transfer case brace bolts.

    Tighten:  Tighten the transfer case bolt at the engine to 47 N.m (35 lb ft).

  5. Install the transfer case brace bolt at the transfer case.

    Tighten:  Tighten the transfer case bolt to 60 N.m (44 lb ft).

  6. Install the transfer case shield. Refer to Transfer Case Shield Replacement .
  7. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
