Installation Procedure

Fig 1: Applying Sealant GM P/N 12346004 (Canadian P/N 10953480) To The Oil Drain Plug Threads

Courtesy of GENERAL MOTORS CORP.

Apply sealant to the oil drain plug threads. Use sealant GM P/N 12346004 or the equivalent.

Fig 2: Installing Oil Drain Plug

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Using J 36511 install the oil drain plug. See Special Tools .
Tighten: Tighten the oil drain plug to 30 N.m (22 lb ft).

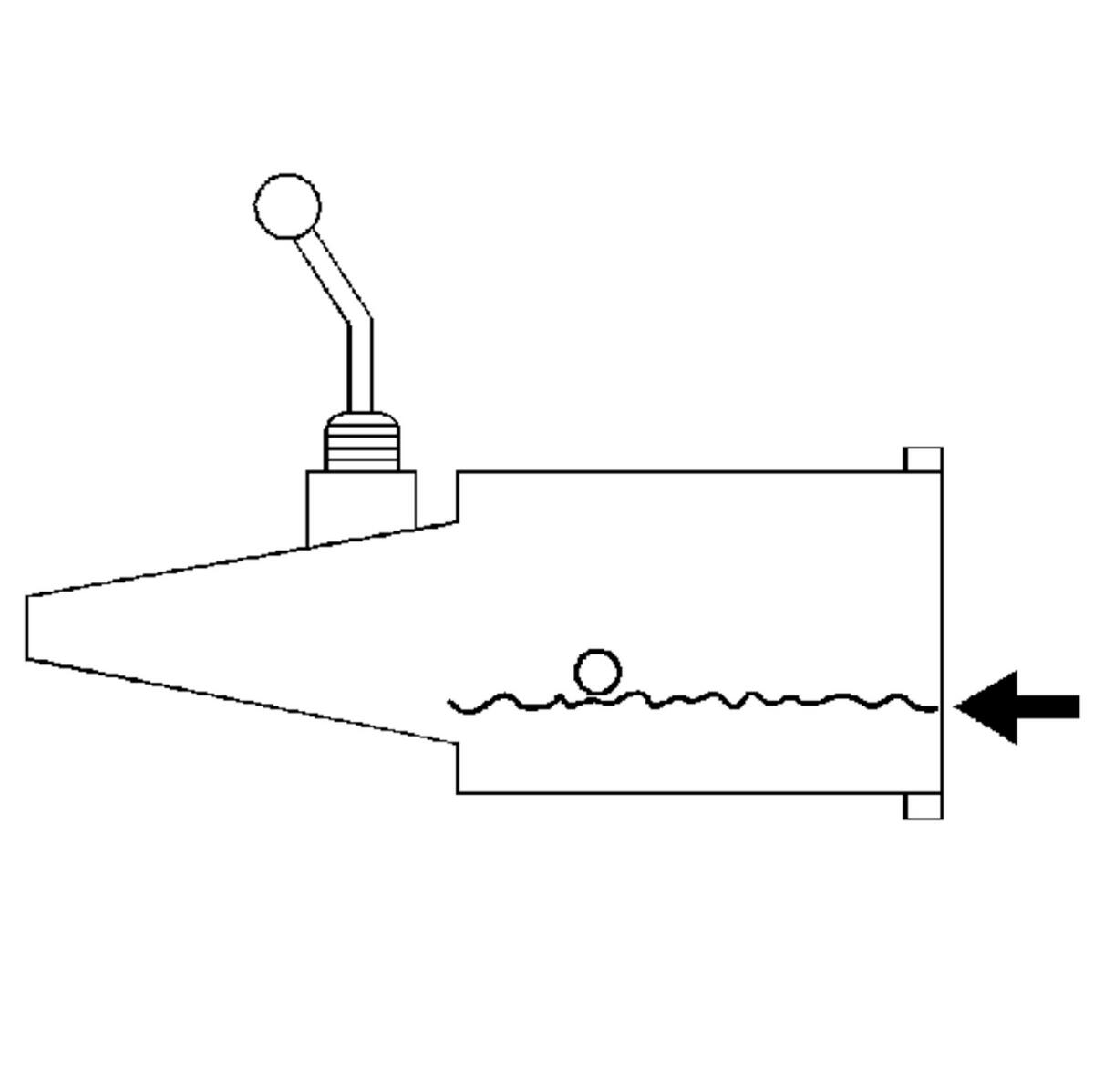

Fig 3: Filling The Transmission To Just Below The Bottom Of The Fill Plug Hole

Courtesy of GENERAL MOTORS CORP.

Fill the transmission to the level of the fill plug hole. Refer to Lubrication Specifications .

Fig 4: Applying Sealant GM P/N 12346004 (Canadian P/N 10953480) To The Oil Drain Plug Threads

Courtesy of GENERAL MOTORS CORP.

Apply sealant to the oil fill plug threads. Use sealant GM P/N 12346004 or the equivalent.

Fig 5: Installing Oil Fill Plug

Courtesy of GENERAL MOTORS CORP.

UsingJ 36511 install the oil fill plug. See Special Tools .
Tighten: Tighten the oil fill plug to 30 N.m (22 lb ft).
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
