Outside Mirror Schematics

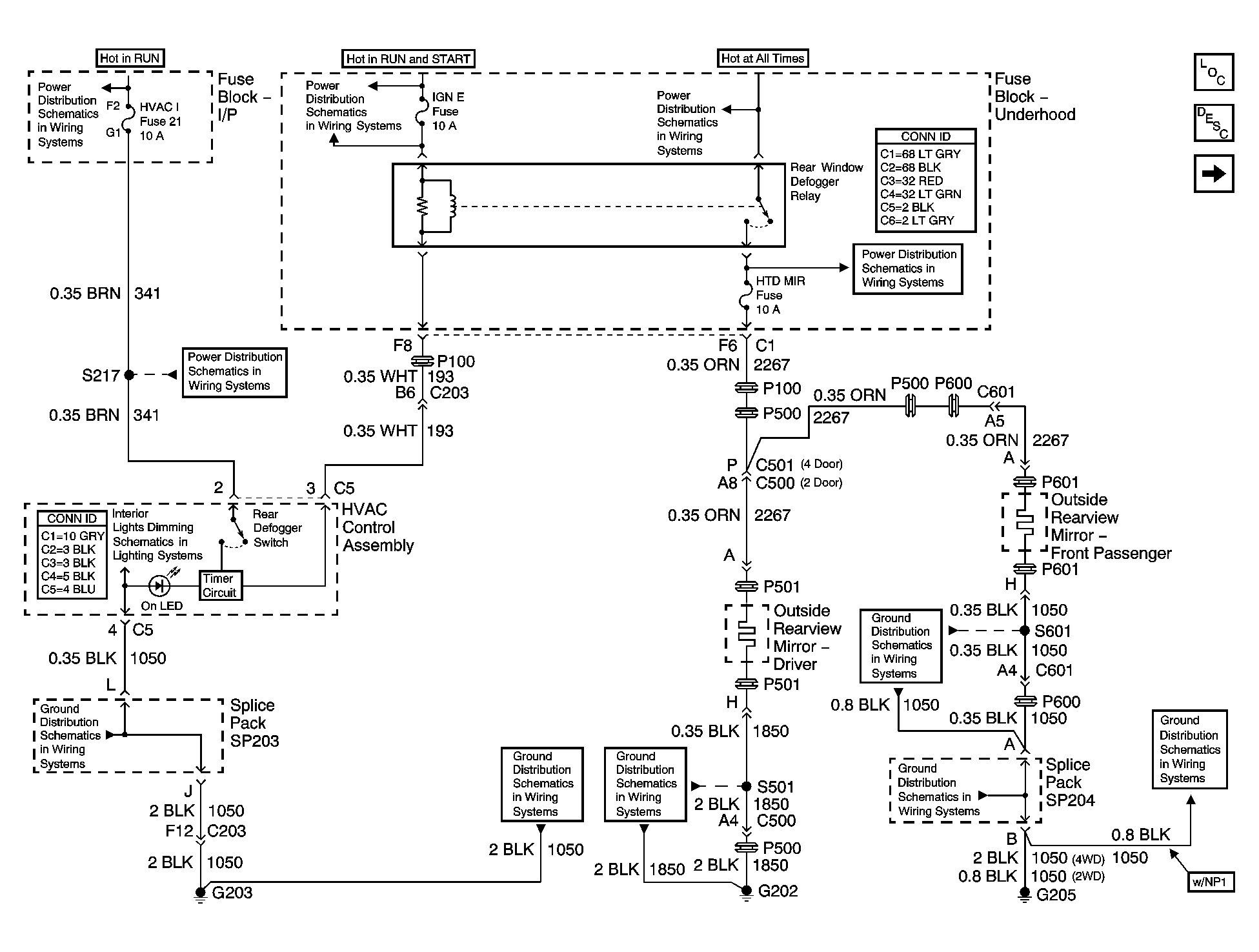

Fig 1: Heated Mirrors Schematic
GM1509480Courtesy of GENERAL MOTORS CORP.
Fig 2: Outside Rearview Mirror Switch Schematic
GM887066Courtesy of GENERAL MOTORS CORP.
Fig 3: Folding Mirrors Schematic - Export Only
GM887086Courtesy of GENERAL MOTORS CORP.
