Data Link Connector (DLC) Schematics

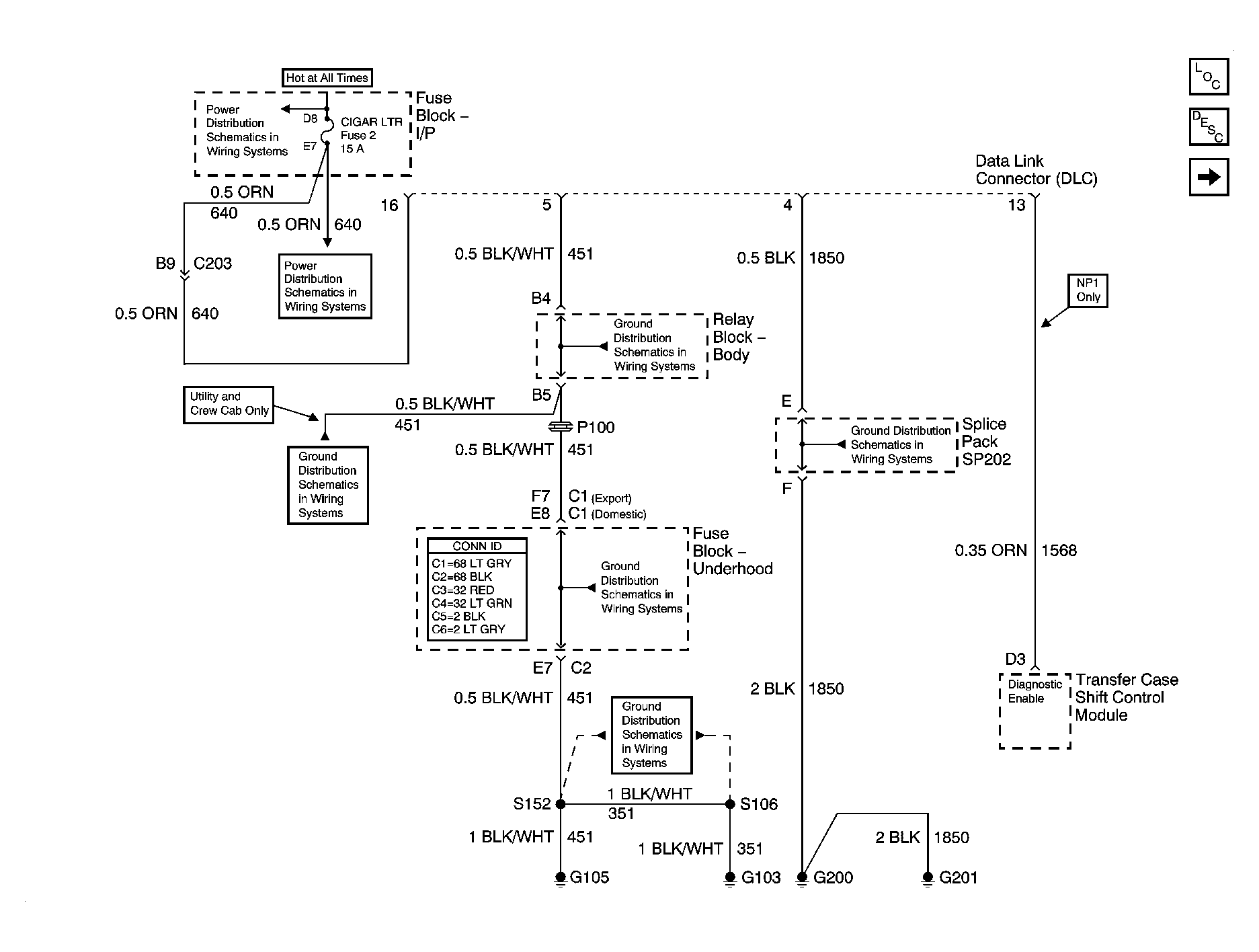

Fig 1: Power, Ground, and Transfer Case Shift Control Module Schematic

Courtesy of GENERAL MOTORS CORP.

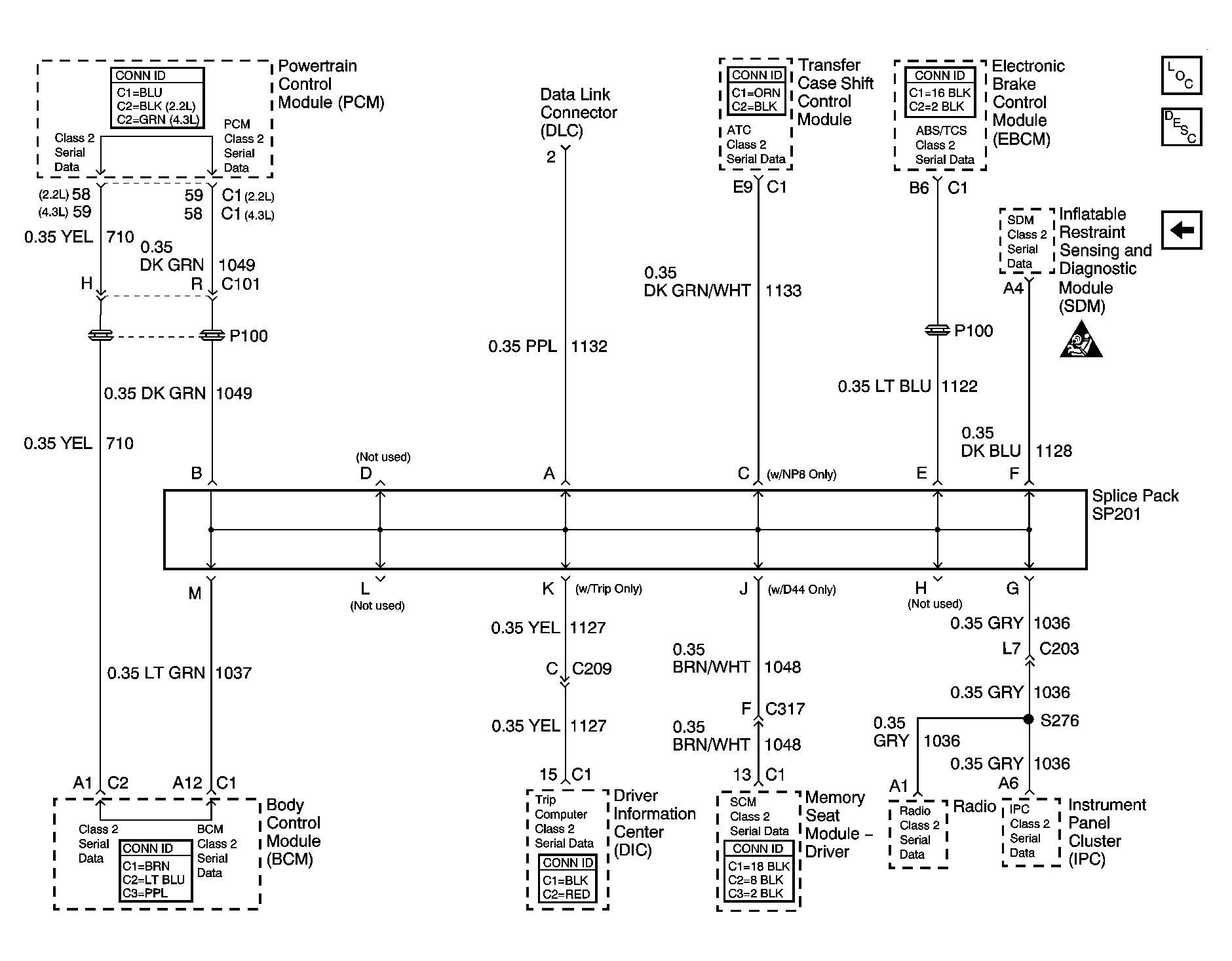

Fig 2: Class 2 Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.
