Removal Procedure

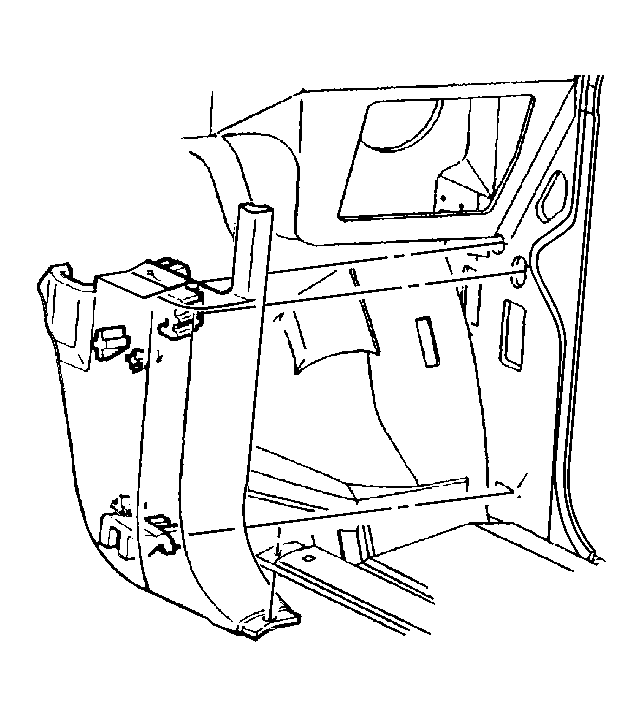

    Fig 1: View Of Body Hinge Pillar Trim Panel
    GM303459Courtesy of GENERAL MOTORS CORP.
  1. Remove the right lower hinge trim panel. Refer to Trim Panel Replacement - Right Hinge Pillar in Interior Trim.

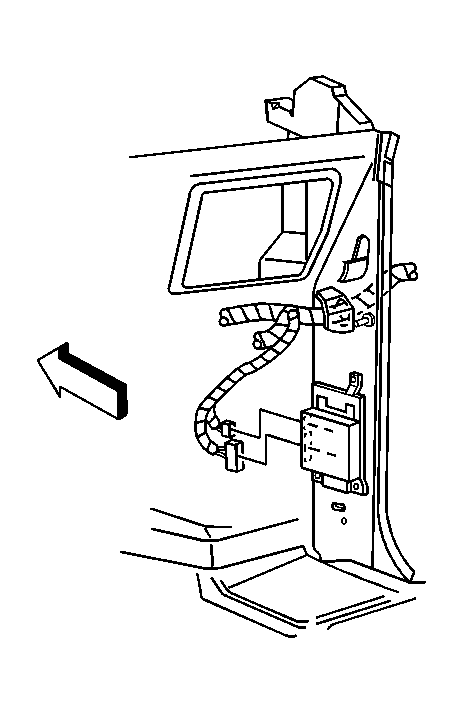

    2. Fig 2: Locating Wiring Harness Connectors
    GM662060Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the 2 wiring harness connectors from the automatic transfer case control module

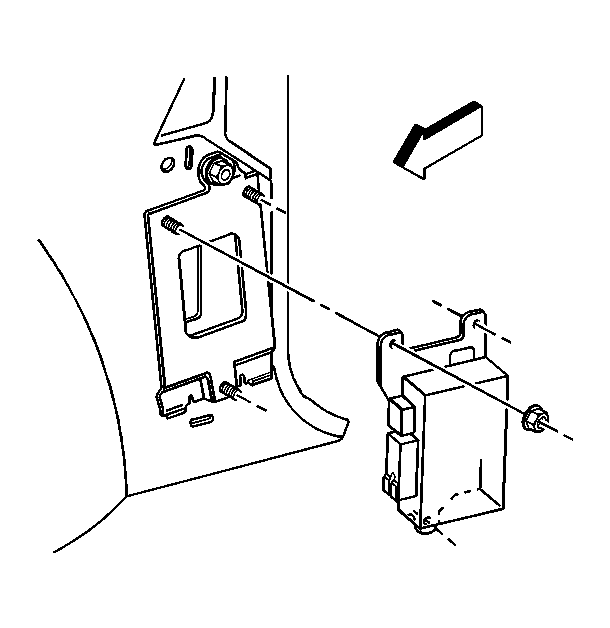

    3. Fig 3: View Of Automatic Transfer Case Control Module
    GM662055Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 nuts securing the automatic transfer case control module to the retainer.
  4. Slide the automatic transfer case control module straight out from the retainer.
