Installation Procedure

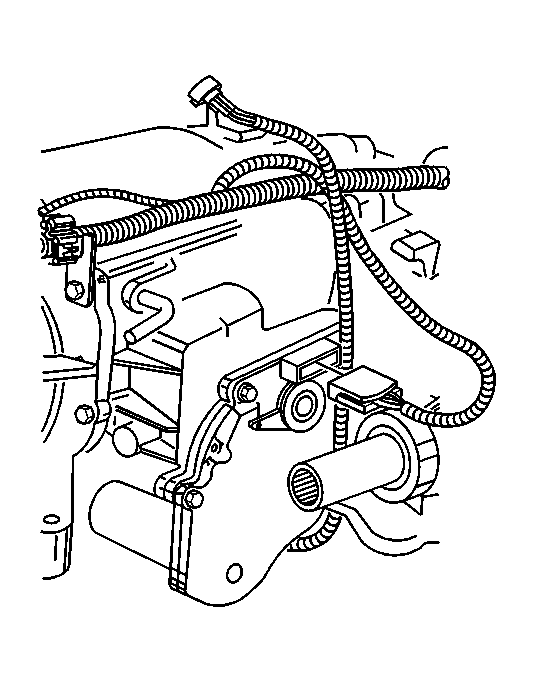

    Fig 1: View Of Motor/Encoder Electrical Connector
    GM662851Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The motor/encoder gasket does not have to be replaced if the motor/encoder is being removed from the transfer case for other service procedures. Replace the motor/encoder gasket only if damaged. If the motor/encoder is being replaced, a new gasket will come with the replacement motor/encoder.
  1. Install the motor/encoder gasket.

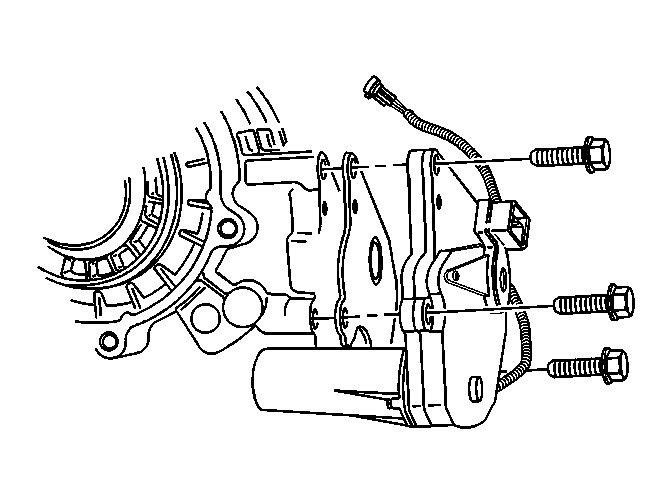

    2. Fig 2: Identifying Actuator Encoder Motor Mounting Bolts
    GM662850Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When performing this service procedure, make sure that the motor/encoder unit is flat against the transfer case for proper installation.
  2. Install the motor/encoder to the transfer case.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install motor/encoder mounting bolts.

    Tighten:  Tighten the motor/encoder mounting bolts to 20 N.m (15 lb ft).

  4. Install the motor/encoder electrical connector.
  5. Install the transfer case shield. Refer to Transfer Case Shield Replacement .
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
