Inflatable Restraint Steering Wheel Module Coil Connector End Views

Inflatable Restraint Steering Wheel Module Coil C1 (Pigtail to the Inflatable Restraint Steering Wheel Module)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186991 2-Way F Micro-Pack 100 Series (YEL)
Pin	Wire Color	Circuit No.	Function
A	WHT	347	Steering Wheel Module - High Control
B	DK GRN	348	Steering Wheel Module - Low Control

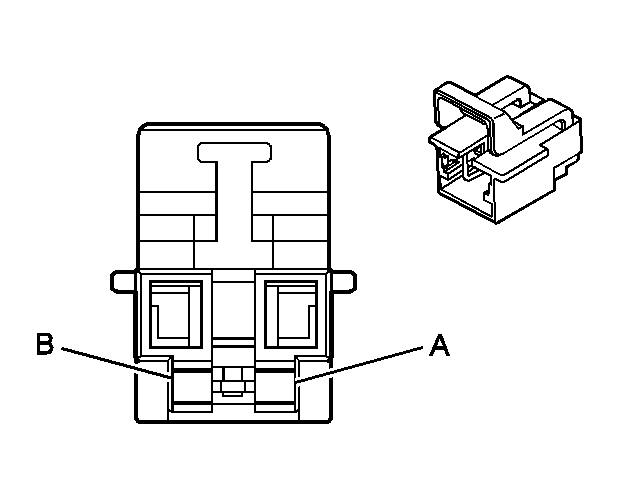

Inflatable Restraint Steering Wheel Module Coil C2 (Pigtail to the Body Harness)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186989 2-Way M Micro-Pack 100 Series (YEL)
Pin	Wire Color	Circuit No.	Function
A	WHT	347	Steering Wheel Module - High Control
B	DK GRN	348	Steering Wheel Module - Low Control

Inflatable Restraint Steering Wheel Module Coil C3 (Pigtail to the SWC Switches)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326050 4-Way M Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	YEL	43	RAP Fuse Supply Voltage
B	GRY	949	Instrument Panel Lamp Supply Voltage
C	LT GRN	1011	Request Signal Input
D	BLK	152	Ground

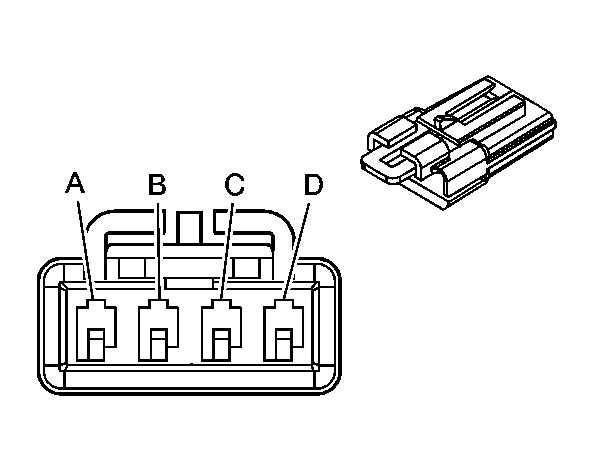

Inflatable Restraint Steering Wheel Module Coil C4 (Pigtail to the Body Harness)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092162 4-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	801	RAP Fuse Supply Voltage
B	BRN	1244	Instrument Panel Lamp Supply Voltage
C	DK BLU	1796	Request Signal Input
D	BLK	1850	Ground
