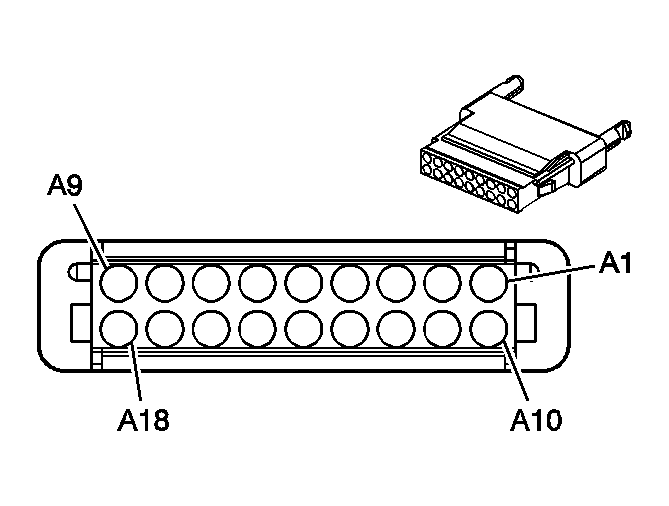

Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector End View
Inflatable Restraint Sensing and Diagnostic Module (SDM)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | YEL | 1139 | Ignition 1 Voltage |
| A2 | - | - | Not Used |
| A3 | WHT/BLK | 1403 | I/P Module - High Control |
| A4 | DK BLU | 1128 | SDM Class 2 Serial Data |
| A5 | - | - | Not Used |
| A6 | WHT | 347 | Steering Wheel Module - High Control |
| A7 | DK GRN | 348 | Steering Wheel Module - Low Control |
| A8 | DK GRN/WHT | 1404 | I/P Module - Low Control |
| A9 | PNK | 353 | I/P Module Suppression Indicator Control |
| A10 | TAN/BLK | 371 | I/P Module Disable Switch - Signal |
| A11 | YEL | 2160 | Front End Discriminating Sensor Signal |
| A12 | BLK/WHT | 2151 | Ground |
| A13-A17 | - | - | Not Used |
| A18 | BLK/WHT | 1851 | Ground |
