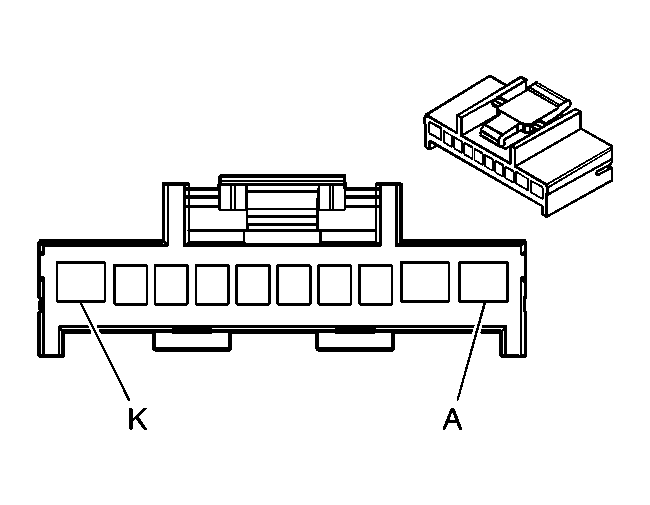

Headlamp Switch Connector End View
Headlamp Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT BLU | 74 | Park Lamp Switch Signal |
| B | ORN | 240 | Battery Supply Voltage |
| C | WHT | 352 | Headlamp Relay Coil Supply Voltage |
| D | ORN | 1940 | Battery Positive Voltage |
| E | BLK | 1050 | Ground |
| F | - | - | Not Used |
| G | DK BLU/ WHT |
1495 | Courtesy Lamp Switch Signal |
| H | PPL/WHT | 549 | Headlamp Switch Headlamps OFF Signal |
| J | PPL | 328 | Interior Lamp Defeat Switch Signal |
| K | DK GRN | 44 | Instrument Panel Lamps Dimmer Switch Signal |
