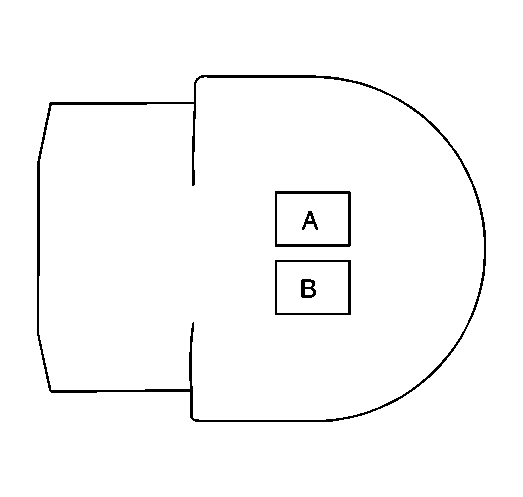

Courtesy Lamp Connector End View - Left/Right Console
Courtesy Lamp - Left/Right Console
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12162285
- 2-Way Lamp Socket Type W-2 Axial (GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
ORN |
40 |
Battery Positive Voltage |
| B |
WHT |
156 |
Courtesy Lamp Low Control |
