Backup Lamp Connector End Views

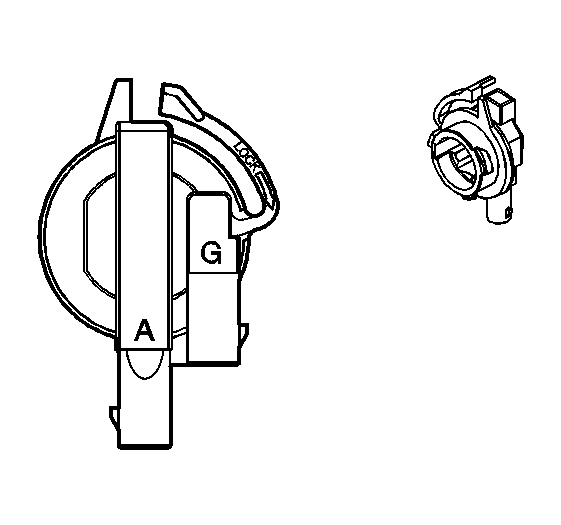

Backup Lamp - Left/Right (Export)

GM871665Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160386
  • Lamp Socket B1 Base Assembly, Right Angle (GRY)
Pin Wire Color Circuit No. Function
A LT GRN 1324 Backup Lamp Supply Voltage
G BLK 1350 Ground
Backup Lamp - Left/Right (Domestic)

GM82372Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160393
  • Lamp Socket Wedge Base W3 Right Angle (LT GRY)
Pin Wire Color Circuit No. Function
A LT GRN 1324 Backup Lamp Supply Voltage
G BLK 1350 Ground
