Shift Lock Bypass Procedure

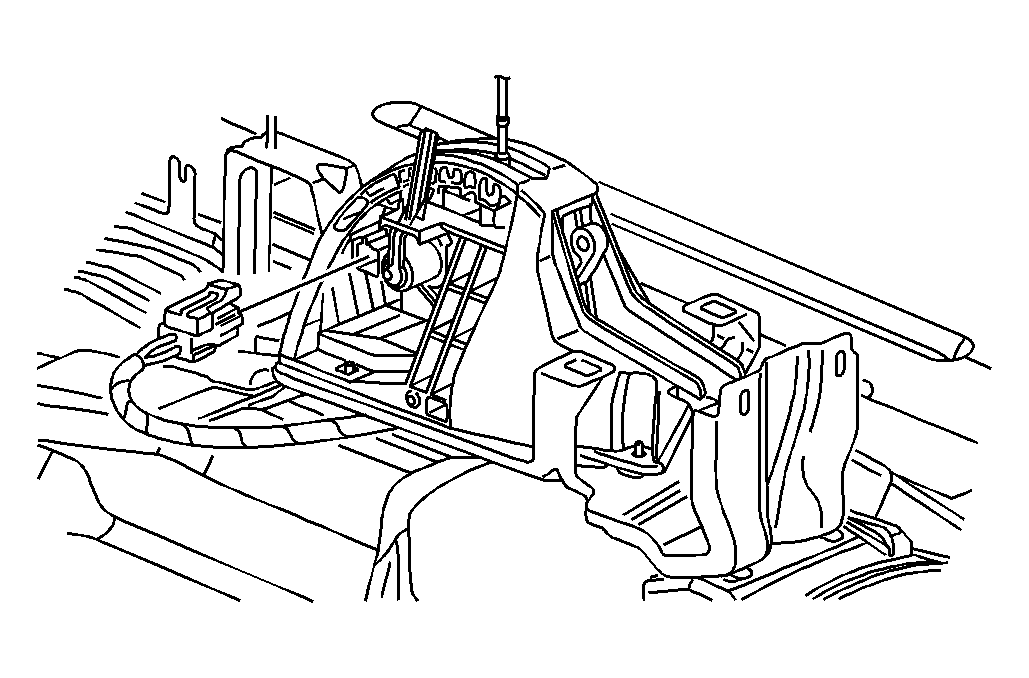

Fig 1: Locating Park Lock Solenoid Manual Release Lever
GM762175Courtesy of GENERAL MOTORS CORP.

In the event that service is required, a park lock solenoid manual release lever is located on the top right side of the floor shift assembly, under the shift lever trim boot. To operate the manual release lever, block the wheels and apply the parking brake. Lift the shift lever boot to expose the release lever. Push the release lever towards the front of the vehicle and move the shift lever to the neutral position.
