Installation Procedure

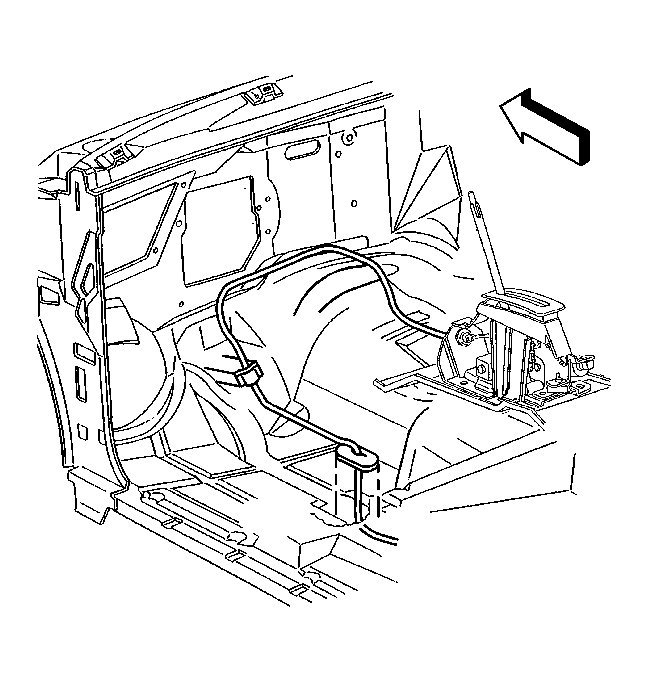

    Fig 1: View Of Cable Routing
    GM416704Courtesy of GENERAL MOTORS CORP.
  1. Install the cable through the opening in the floor panel.
  2. Install the grommet to the floor panel.
  3. Install the sound deadening material that covers the cable.
    4. Fig 2: View Of Cable End At Controller
    GM416706Courtesy of GENERAL MOTORS CORP.
  4. Install the cable to the controller.
  5. Install the retainer securing the cable to the controller.
  6. Connect the cable end to the controller ball stud.
  7. Install the front mat and carpet. Refer to Mat/Carpet Replacement - Front Floor (Utility) in Instrument Panel, Gages, and Console.
  8. Install the console. Refer to Console Replacement - Front Floor (Full Length (Auto Trans)) or Console Replacement - Front Floor (Non-Full Length) or Console Replacement - Front Floor (Full-Length (Manual Trans)) in Instrument Panel, Gages, and Console.
    9. Fig 3: View Of Positive Assurance Pin & Retainer
    GM738168Courtesy of GENERAL MOTORS CORP.
  9. Ensure that the shift controller is in the NEUTRAL position.
  10. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  11. Install the range selector cable to the bracket.
  12. Install the retainer (1) to the range selector cable and transmission bracket.
    13. Fig 4: View Of Range Selector Cable End At Transmission Range Selector Lever Ball Stud
    GM738167Courtesy of GENERAL MOTORS CORP.
  13. Ensure that the transmission range selector lever is in the NEUTRAL position.
  14. Following the adjustment procedure, install the range selector cable (2) to the range selector cable lever ball stud (1). Refer to Automatic Transmission Range Selector Cable Adjustment .
  15. Install the positive assurance pin to the bracket.
  16. Install the transfer case shield, if equipped. Refer to the appropriate procedure:
  17. Lower the vehicle and check for proper operation. Repeat the adjustment procedure if necessary. Refer to Automatic Transmission Range Selector Cable Adjustment .
