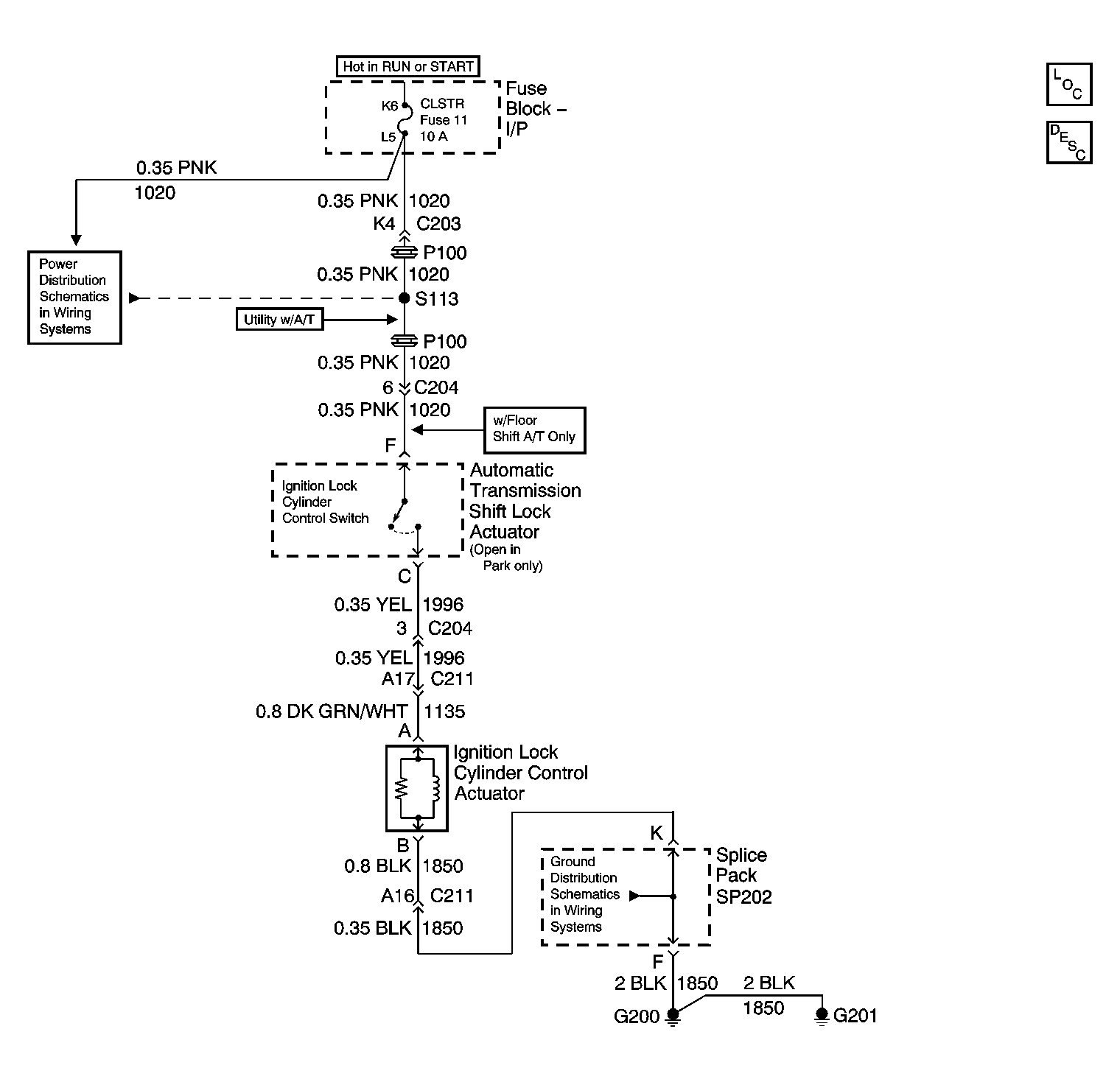

Home >> GMC >> 2005 >> Jimmy Part Time, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Ignition Switch/Steering Lock >> Steering Wheel & Steering Column >> Schematic and Routing Diagrams >> Column/Ignition Lock Schematics
