Steering Column Disassembled View (Column Shift and Floor Shift Tilt)

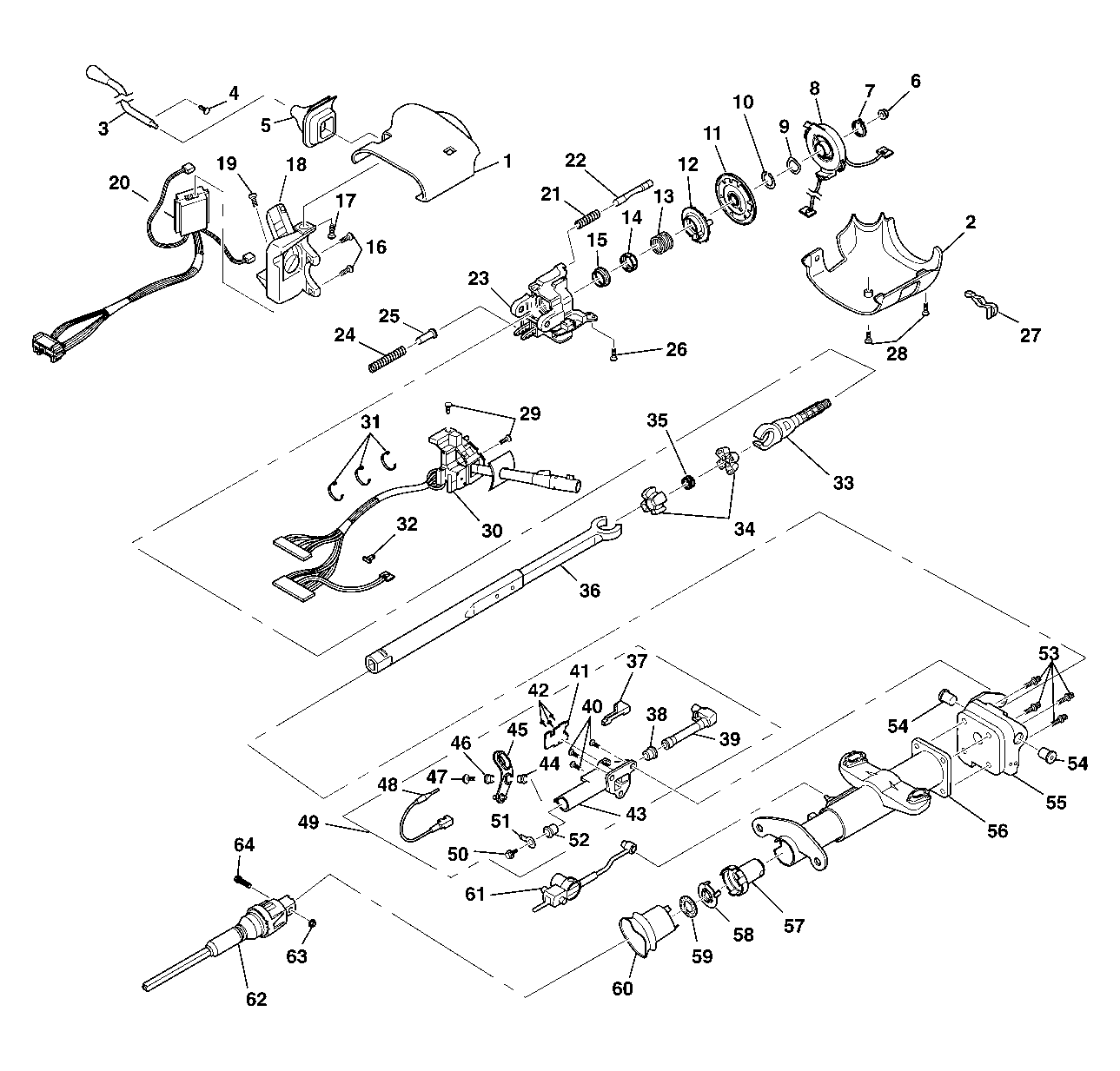

Fig 1: Steering Column Disassembled View - Column Shift

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Lower Trim Cover
3	Shift Lever Assembly
4	Shift Lever Screw
5	Shift Lever Seal
6	Flanged Prevailing Torque Nut
7	Retaining Ring
8	SIR Coil
9	Wave Washer
10	Bearing Retainer
11	Shaft Lock Shield Assembly
12	Turn Signal Cancel Cam Assembly
13	Upper Bearing Spring
14	Upper Bearing Inner Race Seat
15	Inner Race
16	Pan Head Tapping Screws
17	TORX® Head Screw
18	Ignition Lock Cylinder Case
19	Pan Head Tapping Screw
20	Ignition Switch Assembly
21	Lock Bolt Spring
22	Lock Bolt Assembly
23	Steering Column Tilt Head Assembly
24	Tilt Spring
25	Spring Guide
26	TORX® Head Screw
27	Tilt Lever Assembly
28	Pan Head Tapping Screws
29	Pan Head Tapping Screws
30	Turn Signal and Multifunction Switch Assembly
31	Wire Harness Straps
32	Axial Position Assurance Connector
33	Race and Upper Shaft Assembly
34	Centering Sphere
35	Joint Preload Spring
36	Lower Steering Shaft Assembly
37	Shift Lever Clevis
38	Cam Bushing
39	Linear Shift Shaft Assembly
40	Flat Head Tapping Screws
41	Shift Lever Gate
42	Oval Head 6-Lobed Socket Tapping Screws
43	Gear Shift Lever Support Bracket
44	Actuator Bushing
45	Cable Shift Cam Assembly
46	Actuator Bushing
47	Hexagon Flange Head Bolt
48	Park Lock Cable Assembly
49	Linear Shift Assembly
50	Hexagon Flange Head Bolt
51	Ball and Actuator Assembly
52	Actuator Bushing
53	TORX® Head Screws
54	Pivot Pins
55	Steering Column Support Assembly
56	Steering Column Jacket Assembly
57	Adapter and Bearing Assembly
58	Shaft Seal Retainer
59	Steering Shaft Seal
60	Inner Boot Seal
61	Automatic Transmission Shift Lock Control
62	Coupling and Steering Shaft Assembly
63	Large Flange Hexagon Nut
64	Round Head Locking Bolt

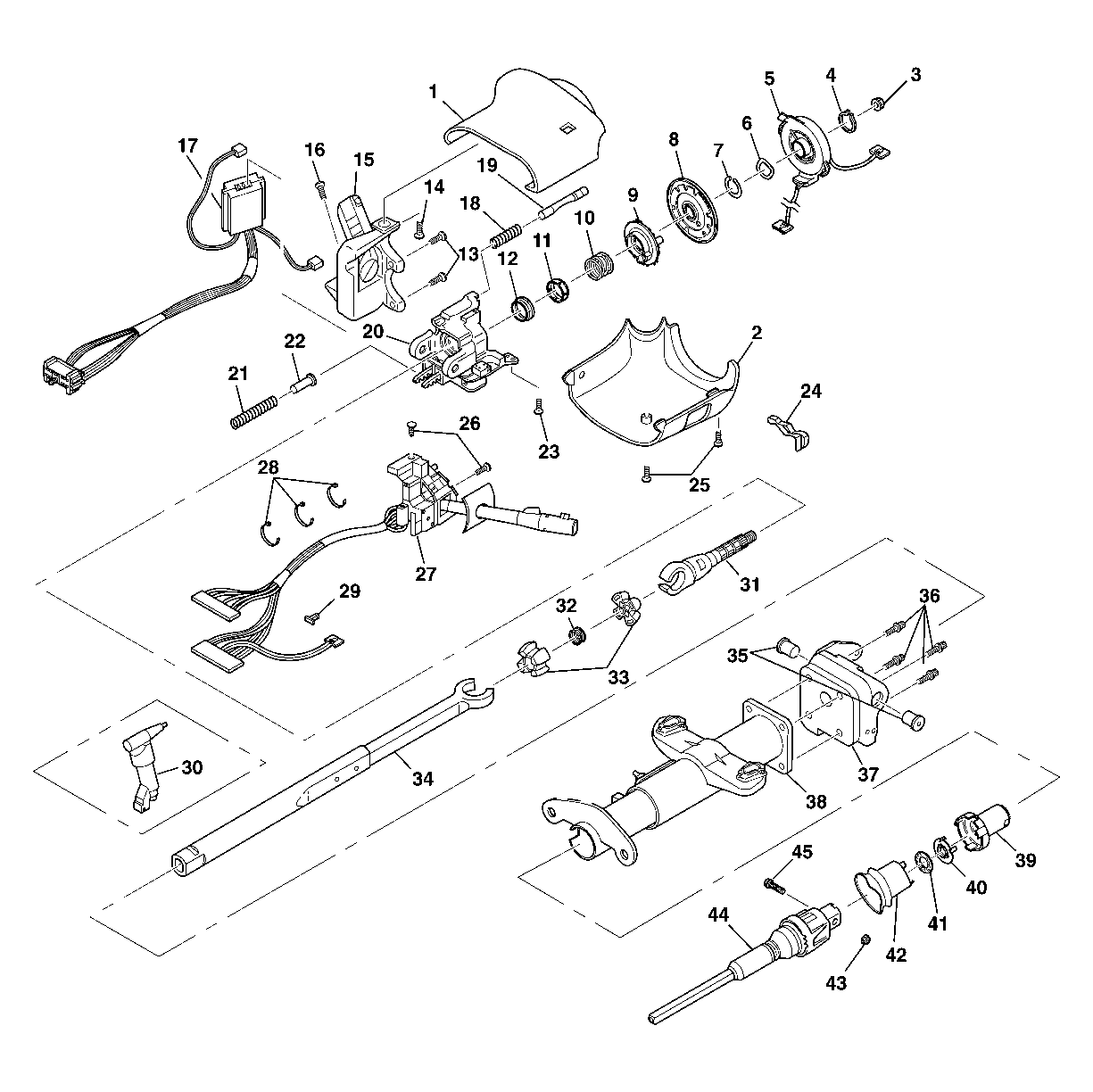

Fig 2: Steering Column Disassembled View - Floor Shift Tilt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Lower Trim Cover
3	Flanged Prevailing Torque Nut
4	Retaining Ring
5	SIR Coil
6	Wave Washer
7	Bearing Retainer
8	Shaft Lock Shield Assembly
9	Turn Signal Cancel Cam Assembly
10	Upper Bearing Spring
11	Upper Bearing Inner Race Seat
12	Inner Race
13	Pan Head Tapping Screws
14	TORX® Head Screw
15	Ignition Lock Cylinder Case
16	Pan Head Tapping Screw
17	Ignition Switch Assembly
18	Lock Bolt Spring
19	Lock Bolt Assembly
20	Steering Column Tilt Head Assembly
21	Tilt Spring
22	Spring Guide
23	TORX® Head Screw
24	Tilt Lever Assembly
25	Pan Head Tapping Screws
26	Pan Head Tapping Screws
27	Turn Signal and Multifunction Switch Assembly
28	Wire Harness Straps
29	Axial Position Assurance Connector
30	Steering Column Electric Park Lock
31	Race and Upper Shaft Assembly
32	Joint Preload Spring
33	Centering Spheres
34	Lower Steering Shaft Assembly
35	Pivot Pins
36	TORX® Head Screws
37	Steering Column Support Assembly
38	Steering Column Jacket Assembly
39	Adapter and Bearing Assembly
40	Sensor Retainer
41	Shaft Seal Retainer
42	Steering Shaft Boot
43	Large Flange Hexagon Nut
44	Coupling and Steering Shaft Assembly
45	Round Head Locking Bolt
