Installation Procedure

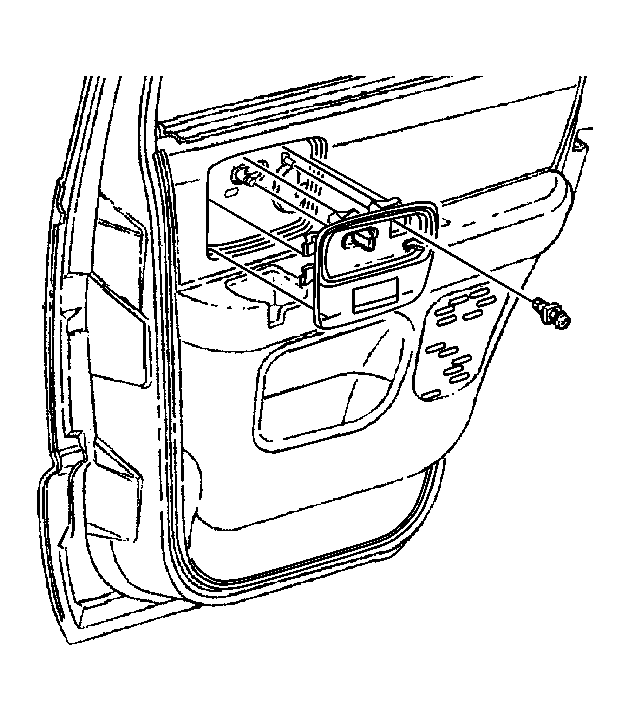

Fig 1: View Of Rear Inside Door Handle Bezel

Courtesy of GENERAL MOTORS CORP.

Route the inside door handle and the lock rod through the appropriate openings in the bezel.
Align the lock rod to the door lock knob.
Position the bezel and snap the bezel into place.
Install the rear inside door handle bezel to the door trim panel.

Fig 2: View Of Front Inside Door Handle Bezel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Insert the screw that retains the inside door handle bezel to the door trim panel.
Tighten: Tighten the screw to 1.9 N.m (17 lb in).
