Power Outlet Component Views

Fig 1: Behind the Center of the I/P (X88)
GM1489005Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Wiper/Washer Switch (CD6)
2 Transfer Case Shift Control Switch (NP8)/Traction Control Switch (NW7)
3 Instrument Panel Harness
4 Auxiliary Power Outlet - Front
5 Cigar Lighter

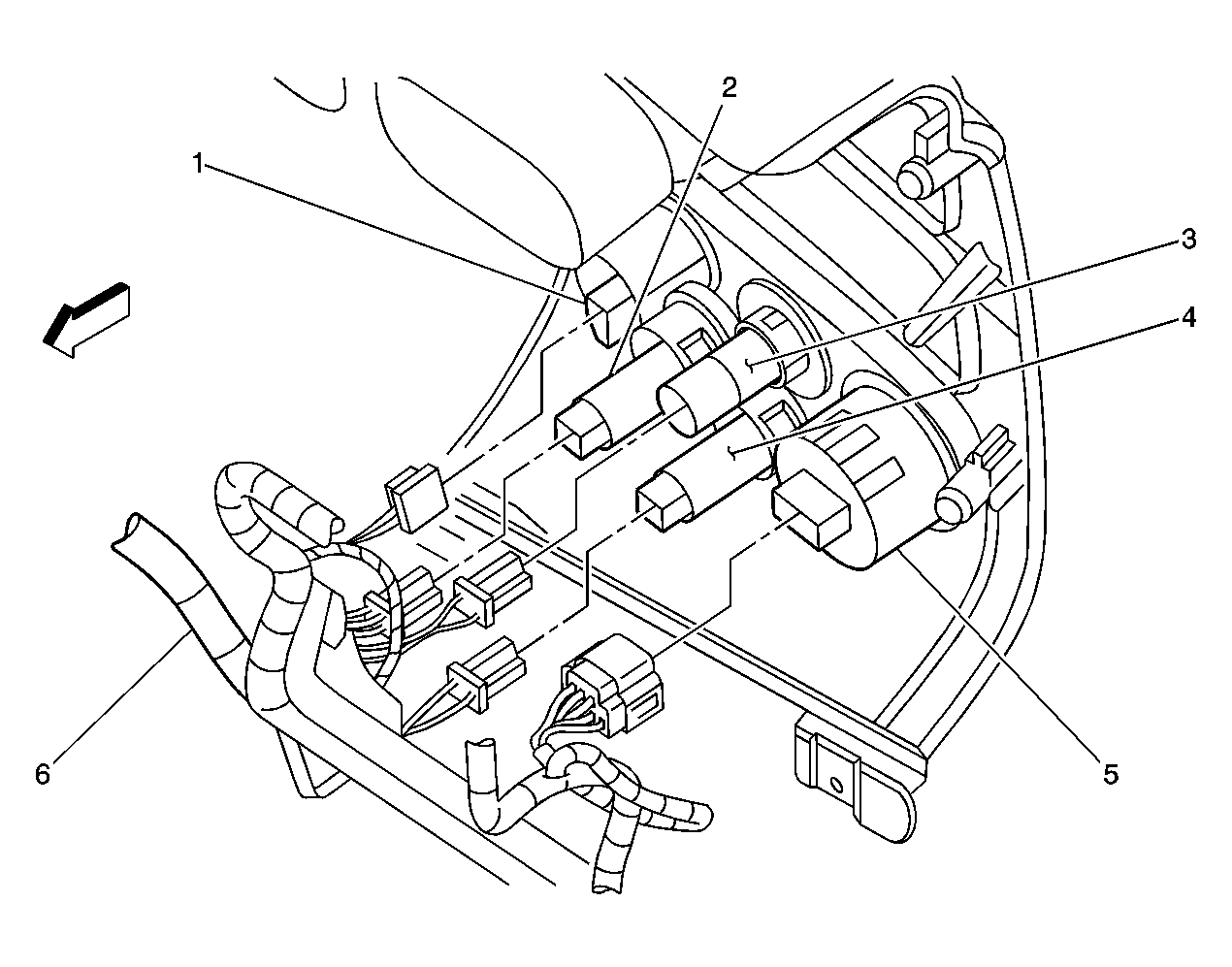

Fig 2: Behind the Center of the I/P (Z88/Z89)
GM1489007Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Wiper/Washer Switch (CD6)
2 Auxiliary Power Outlet - Front
3 Cigar Lighter
4 Auxiliary Power Outlet - Front
5 Transfer Case Shift Control Switch (NP8)/Traction Control Switch (NW7)
6 Instrument Panel Harness
Fig 3: Behind the Center of the I/P (W49)
GM1489010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Rear Window Wiper/Washer Switch (CD6)
3 Instrument Panel Harness
4 Auxiliary Power Outlet - Front
Fig 4: Lower Console
GM1551512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower Console
2 HVAC Control Module - Auxiliary
3 Auxiliary Power Outlet - Console
4 Console Mode Actuator - Auxiliary
5 C309
6 C307
Fig 5: Left Rear Body Side Panel Component View
GM825548Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Trim Panel
2 Auxiliary Power Outlet - Rear
