Installation Procedure

    Fig 1: View Of CKP Sensor & Bolt
    GM55322Courtesy of GENERAL MOTORS CORP.
  1. Install the CKP sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CKP sensor bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

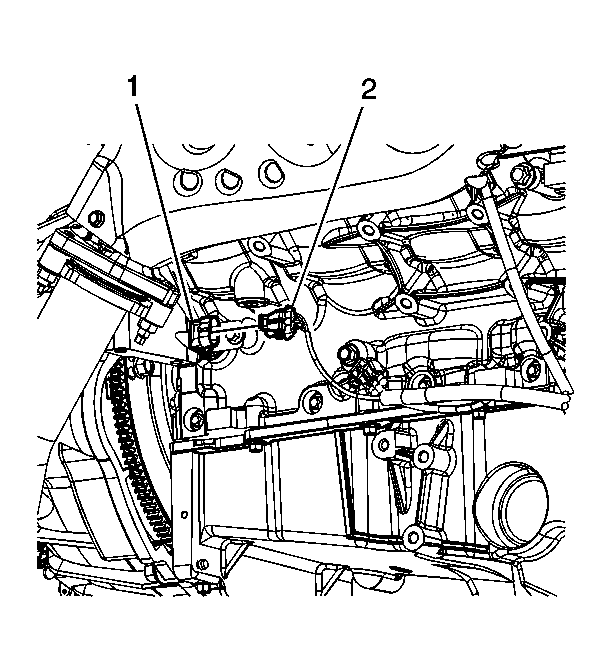

    3. Fig 2: Identifying Crankshaft Position (CKP) Sensor
    GM1528399Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (2) to the CKP sensor (1).
  4. Install the starter. Refer to Starter Motor Replacement (4.2L Engine) or Starter Motor Replacement (5.3L Engine) in Engine Electrical.
