Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Door in Doors.
  2. Remove the mounting screws.
  3. Remove the speaker from the door.

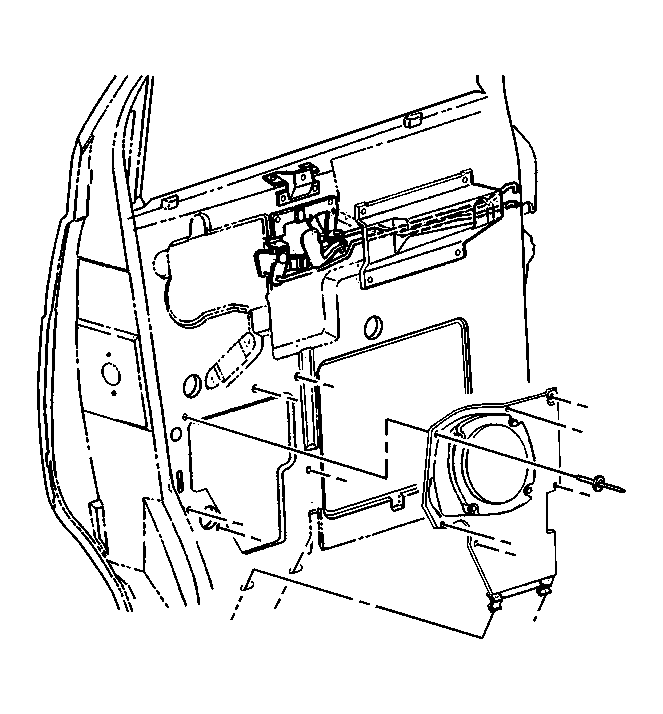

    Fig 1: Identifying Door Speaker
    GM306854Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the speaker.
