Home >> GMC >> 2004 >> Sierra 2500, 2D Pickup, LQ4/KL8, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Wheel Alignment Specifications >> Specifications

Wheel Alignment Specifications: Specifications

Use illustrations for wheel alignment specifications. See Fig 1 .

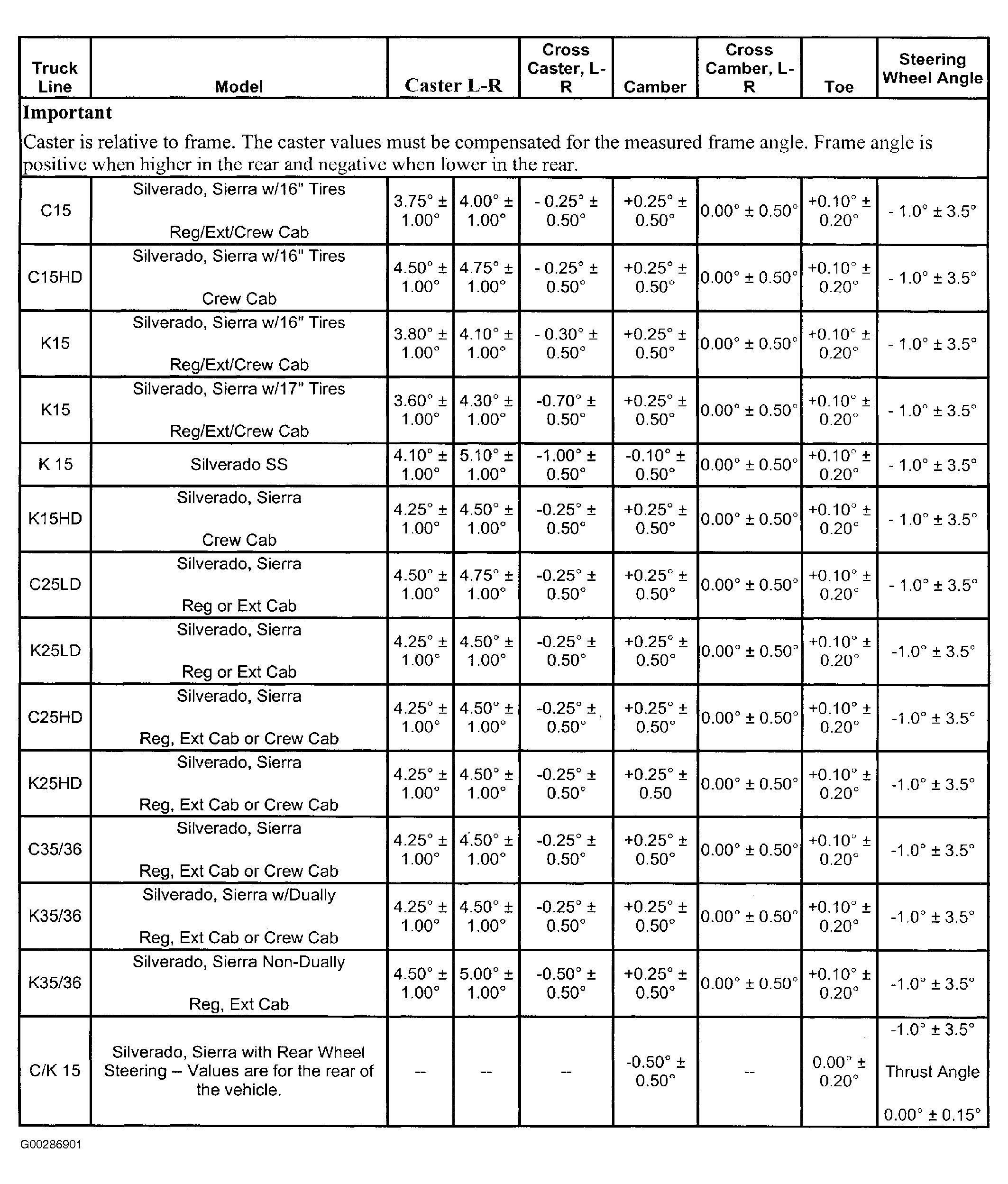

Fig 1: Wheel Alignment Specifications

G00286901

Courtesy of GENERAL MOTORS CORP.
