Installation Procedure

IMPORTANT: The water-in-fuel sensor must ONLY be tightened by hand.
  1. Install the water-in-fuel sensor (3) to the fuel filter (2).
    2. Fig 1: Fuel Filter Adapter, Fuel Filter & Water-In-Fuel Sensor
    GM752028Courtesy of GENERAL MOTORS CORP.
  2. Connect the water-in-fuel sensor electrical connector (1).

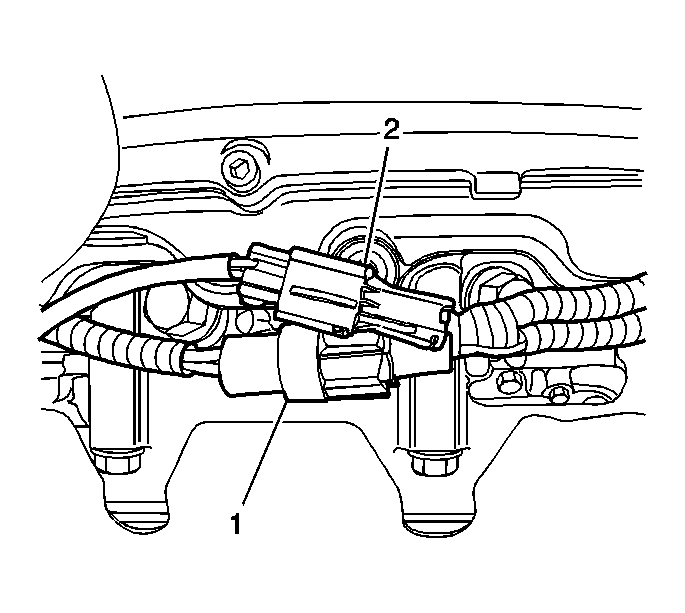

    3. Fig 2: Water-In-Fuel Sensor & Fuel Heater
    GM786973Courtesy of GENERAL MOTORS CORP.
