Installation Procedure

  1. Position the sensor (2) onto the bracket (1).
  2. Install the bracket (with sensor) over the stud.

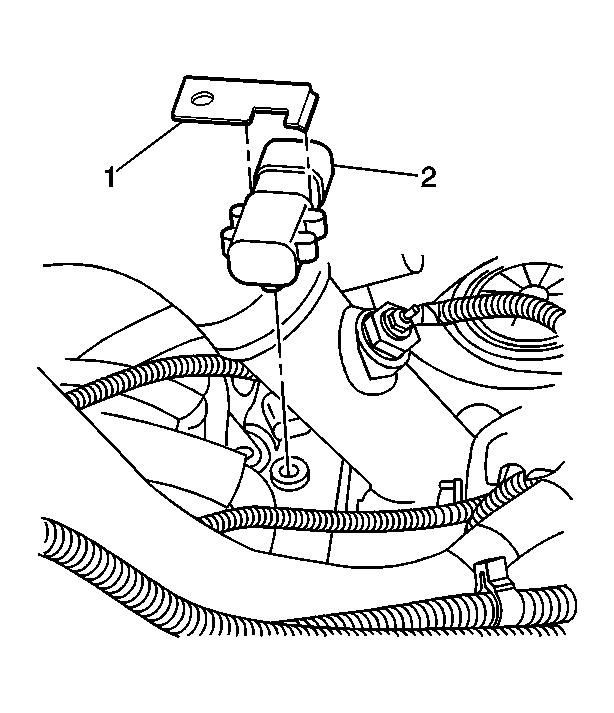

    3. Fig 1: Boost Sensor & Bracket
    GM740442Courtesy of GENERAL MOTORS CORP.
  3. Position the coolant tube (1) over the stud.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the boost sensor bracket nut (4).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  5. Connect the boost sensor electrical connector (2).

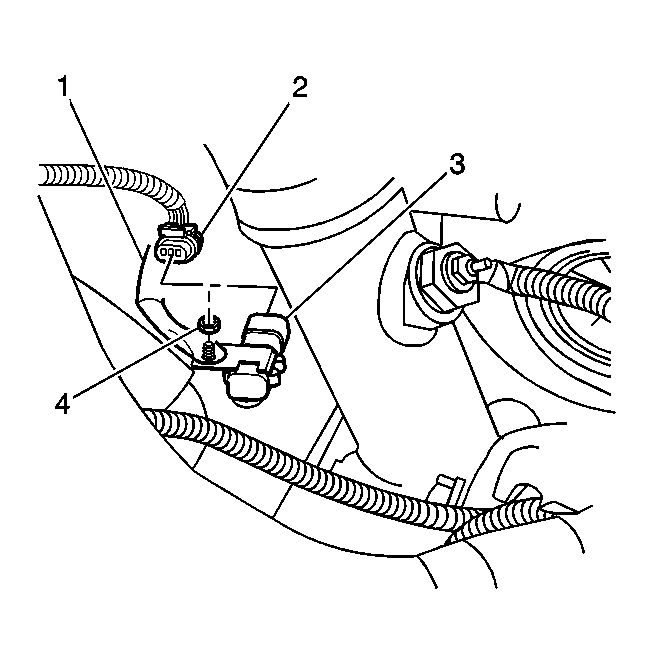

    6. Fig 2: Coolant Tube, Boost Sensor Electrical Connector & Bracket Nut
    GM740438Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
