ABS Component Views

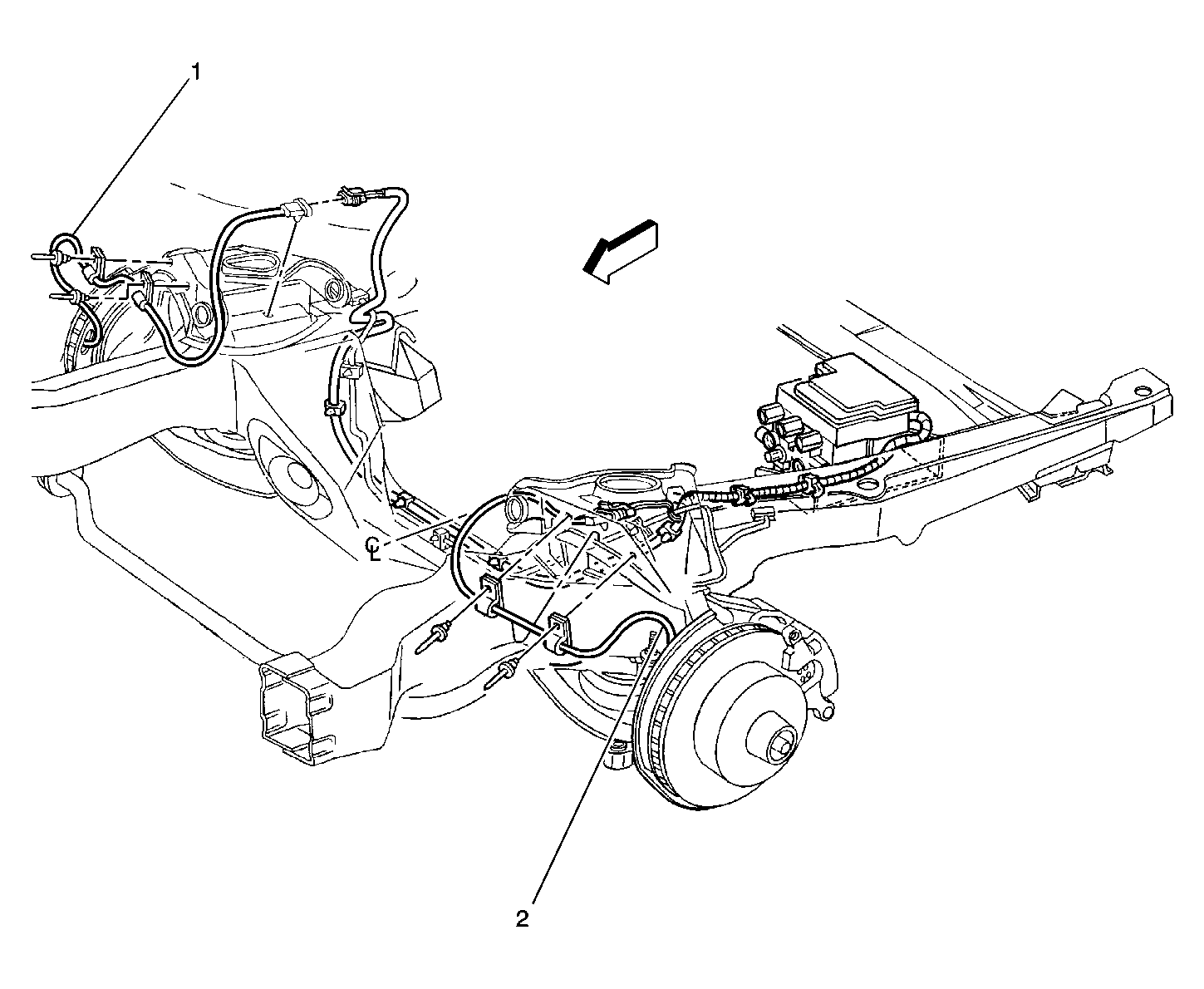

Fig 1: Antilock Brake System Wiring Component View
GM211884Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - RF
2 Wheel Speed Sensor (WSS) - LF

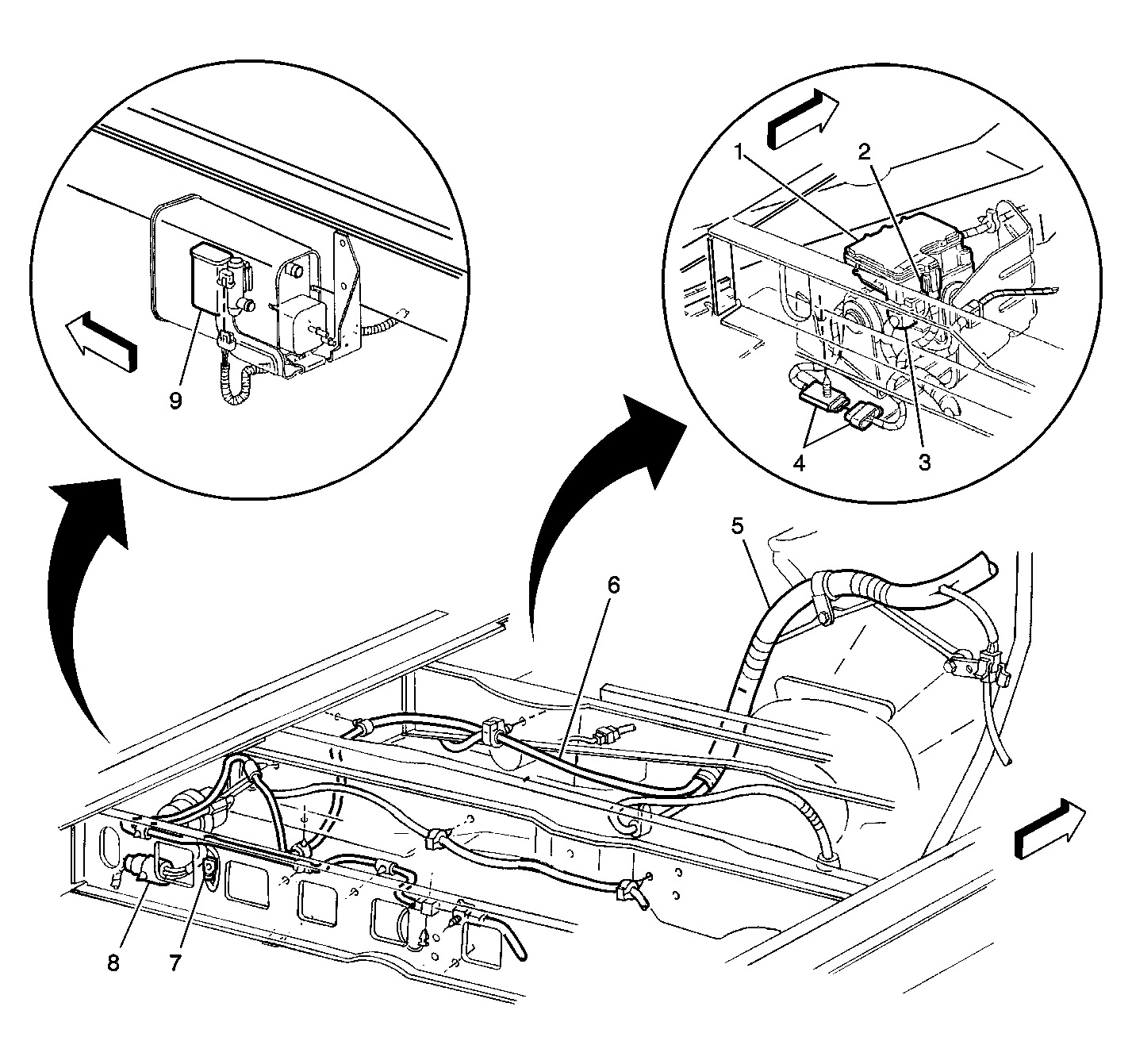

Fig 2: Undercarriage Wiring Component View
GM598350Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Brake Control Module (EBCM)
2 Electronic Brake Control Module (EBCM) Connector C2
3 Electronic Brake Control Module (EBCM) Connector C1
4 C314
5 S126
6 S127
7 G302
8 C310
9 Evaporative Emission (EVAP) Canister Vent Solenoid
