Stationary Windows Component Views

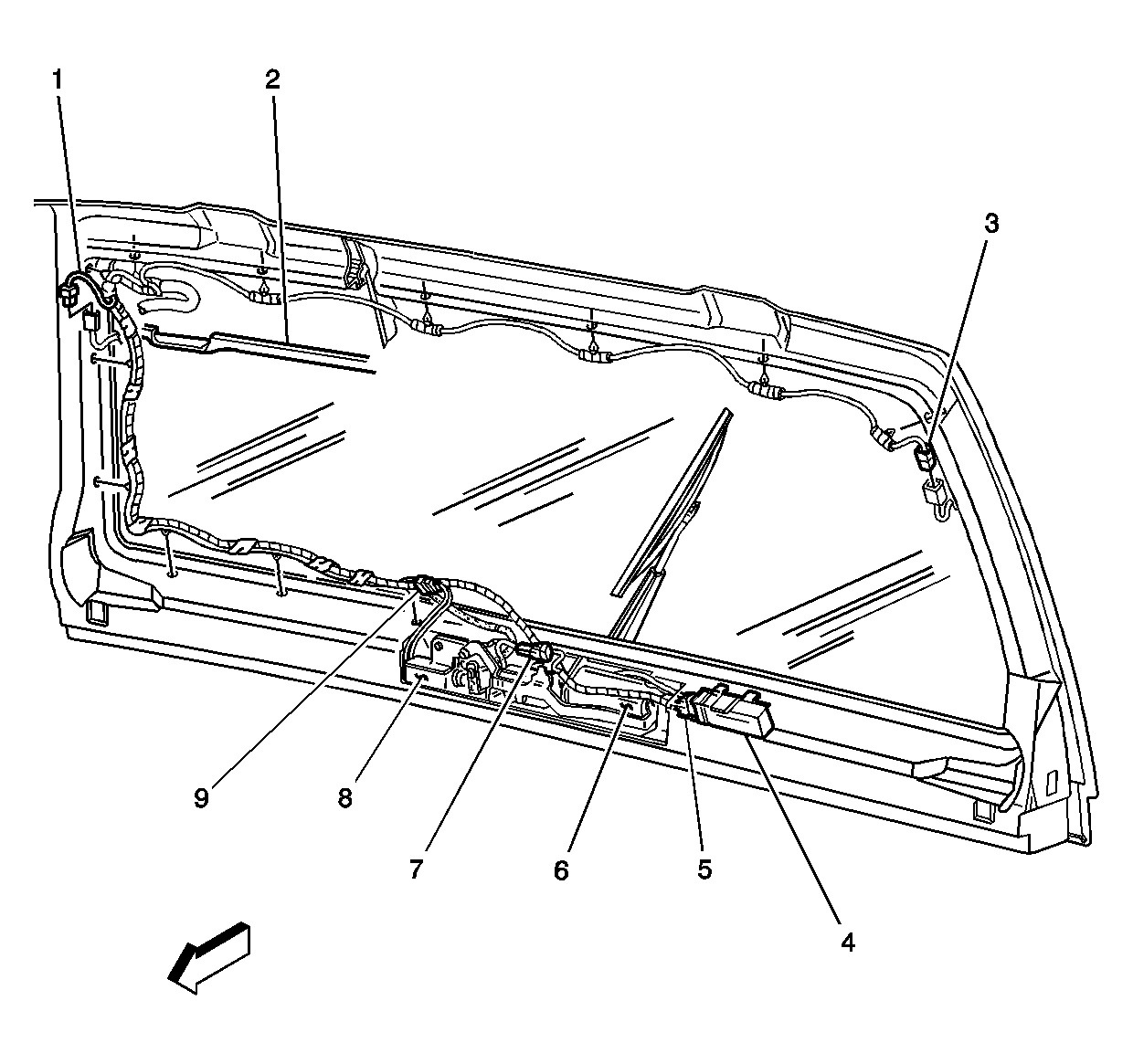

Fig 1: Liftgate Harness Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector C1
2	Rear Window Defogger Grid
3	Rear Window Defogger Grid Connector C2
4	Rear Window Wiper/Washer Module
5	Rear Window Wiper/Washer Module Connector
6	Rear Window Wiper Motor
7	Liftglass Lock/Unlock Release Switch Connector
8	Liftglass Release Actuator
9	Liftglass Release Actuator Connector
