Installation Procedure

  1. Install splash shield gasket.

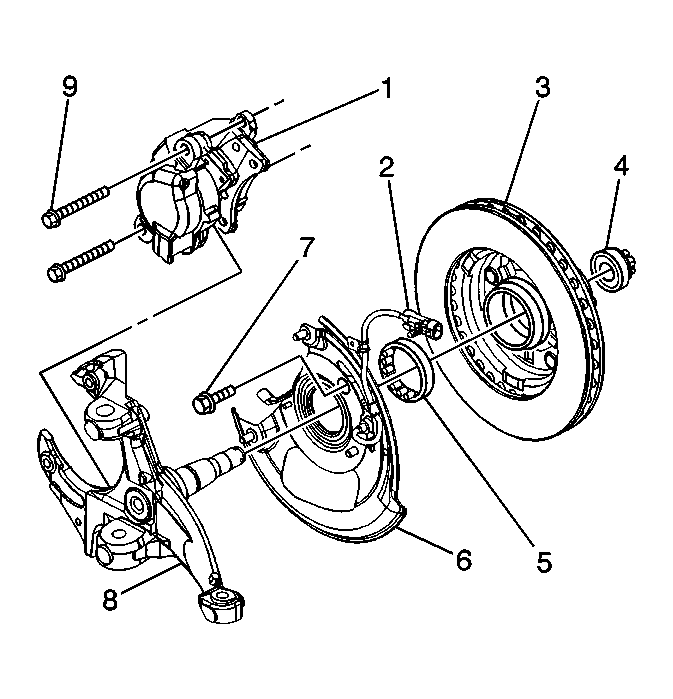

    2. Fig 1: Locating Wheel Speed Sensor (RWD Pickup)
    GM388947Courtesy of GENERAL MOTORS CORP.
  2. Install wheel speed sensor and splash shield assembly (6).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install two 11 mm splash shield mounting bolts.

    Tighten:

    • Tighten the splash shield mounting bolts to 26 N.m (19 lb ft).
    • Tighten the speed sensor mounting bolts to 18 N.m (13 lb ft).

  4. Install harness clips to the wheel speed sensor wire.
  5. Locate the clip directly centered over the white paint mark on the wheel speed sensor cable.
  6. Install harness clips and 13 mm fastening bolt and nut to the front side of the upper control arm
  7. Install the hub and rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.
  8. Install brake caliper. Refer to Brake Caliper Replacement - Front (Dual Piston) in Disc Brakes.
  9. Install tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  10. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
