Door Lock/Indicator Schematics

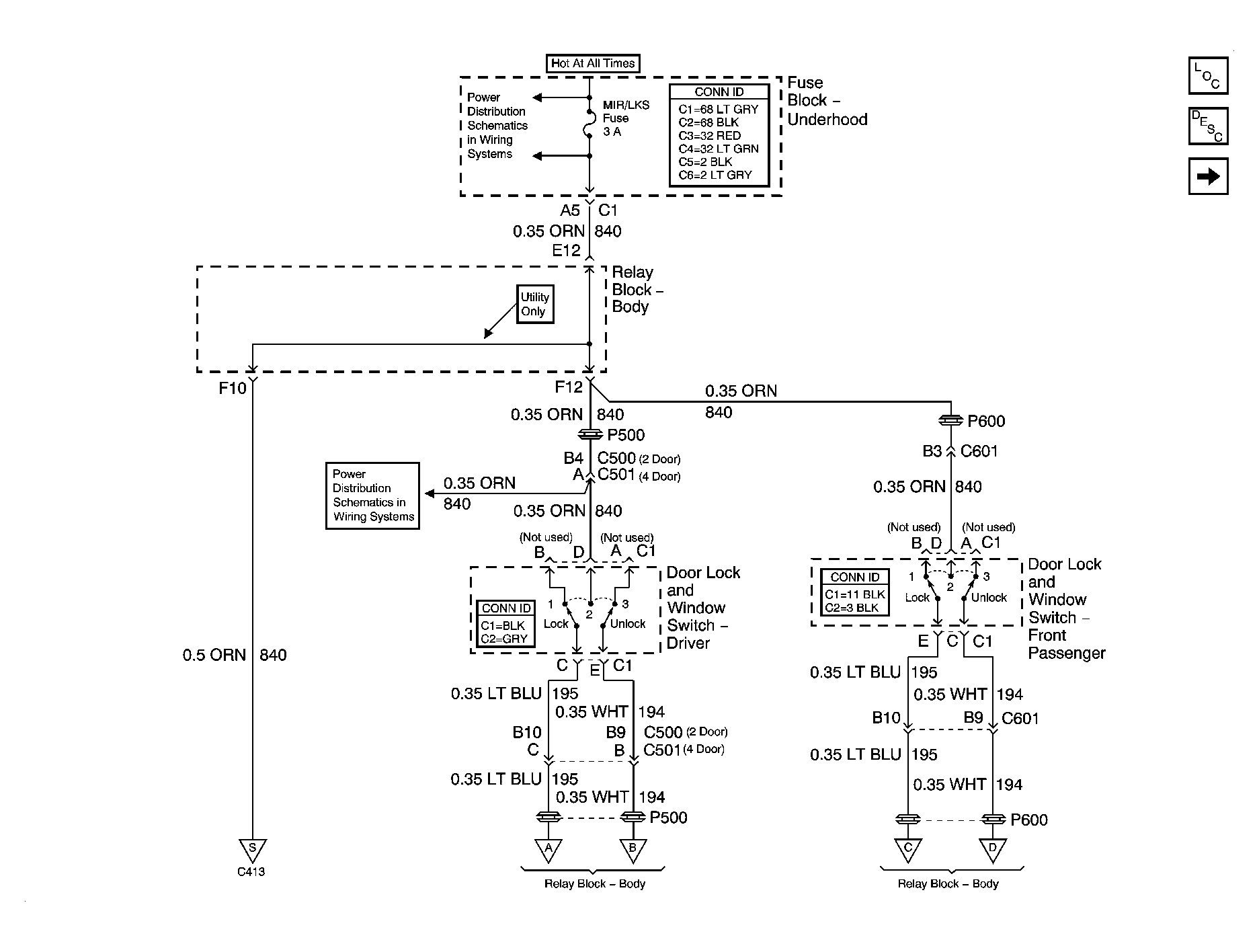

Fig 1: Door Lock Switch Inputs Schematic
GM886888Courtesy of GENERAL MOTORS CORP.
Fig 2: Endgate Lock Cylinder Switch Inputs Schematic - Utility
GM756074Courtesy of GENERAL MOTORS CORP.

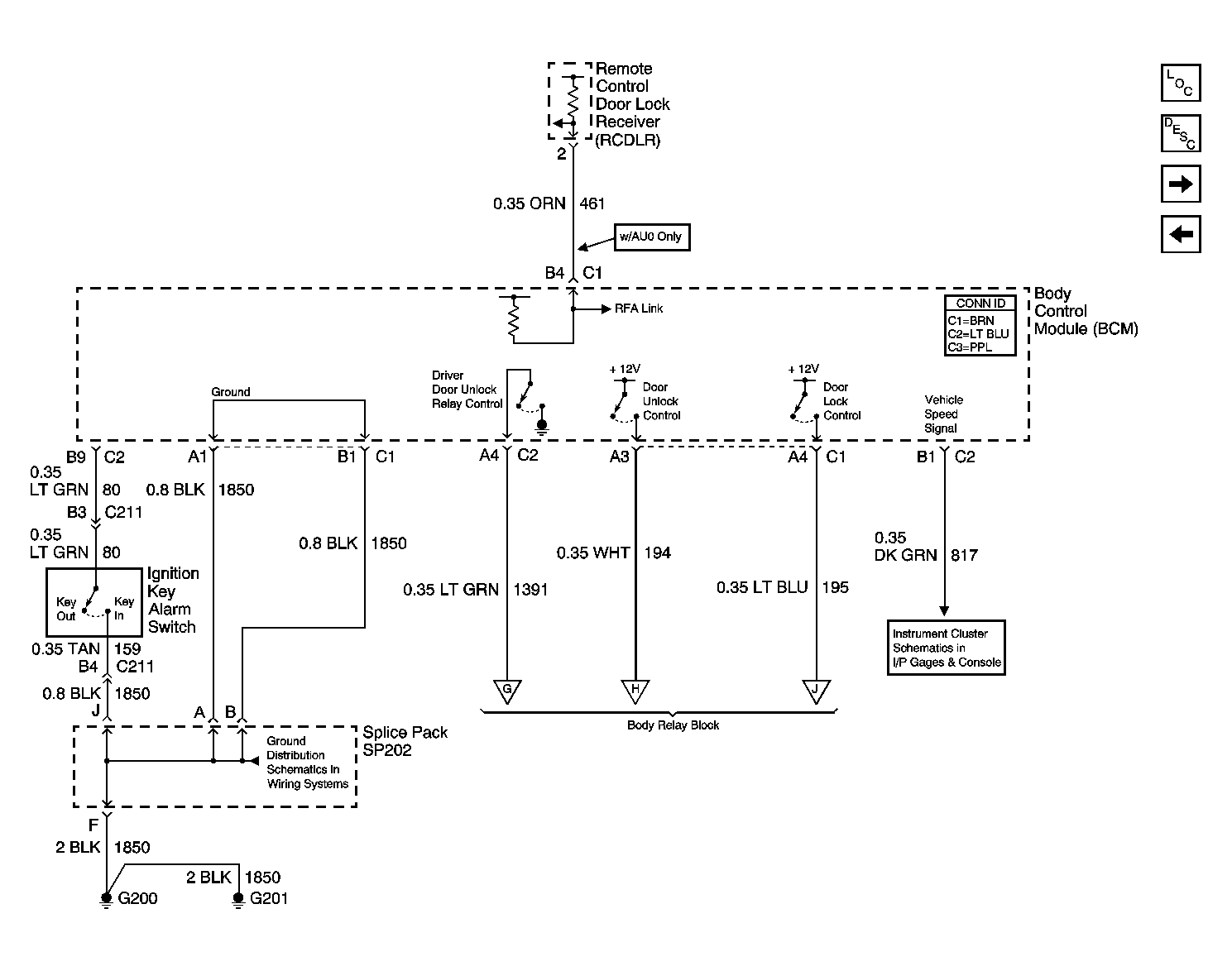

Fig 3: BCM Inputs and Outputs Schematic
GM756075Courtesy of GENERAL MOTORS CORP.

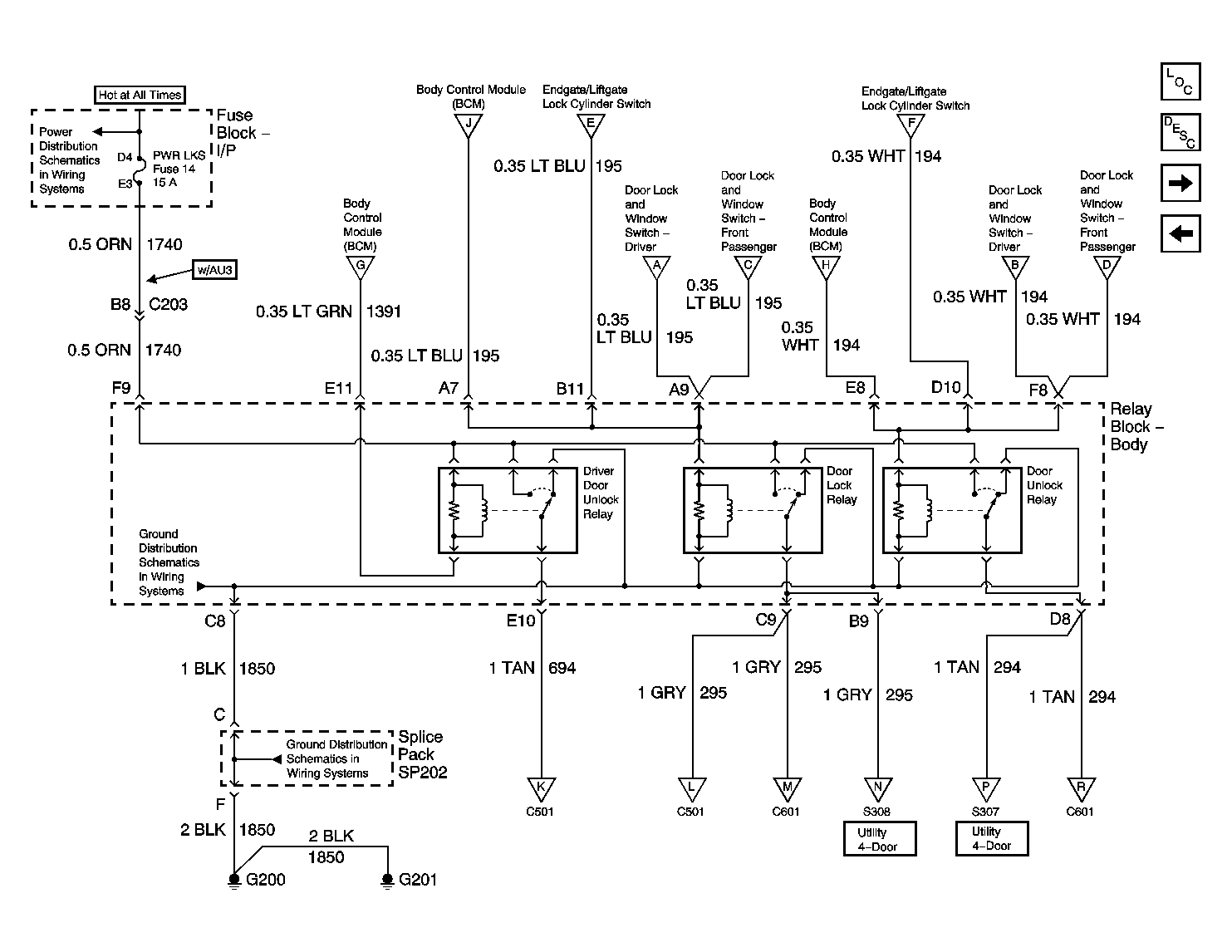

Fig 4: Relay Control Schematic
GM756076Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Lock Actuators Schematic
GM756077Courtesy of GENERAL MOTORS CORP.
