Transfer Case Control Schematics

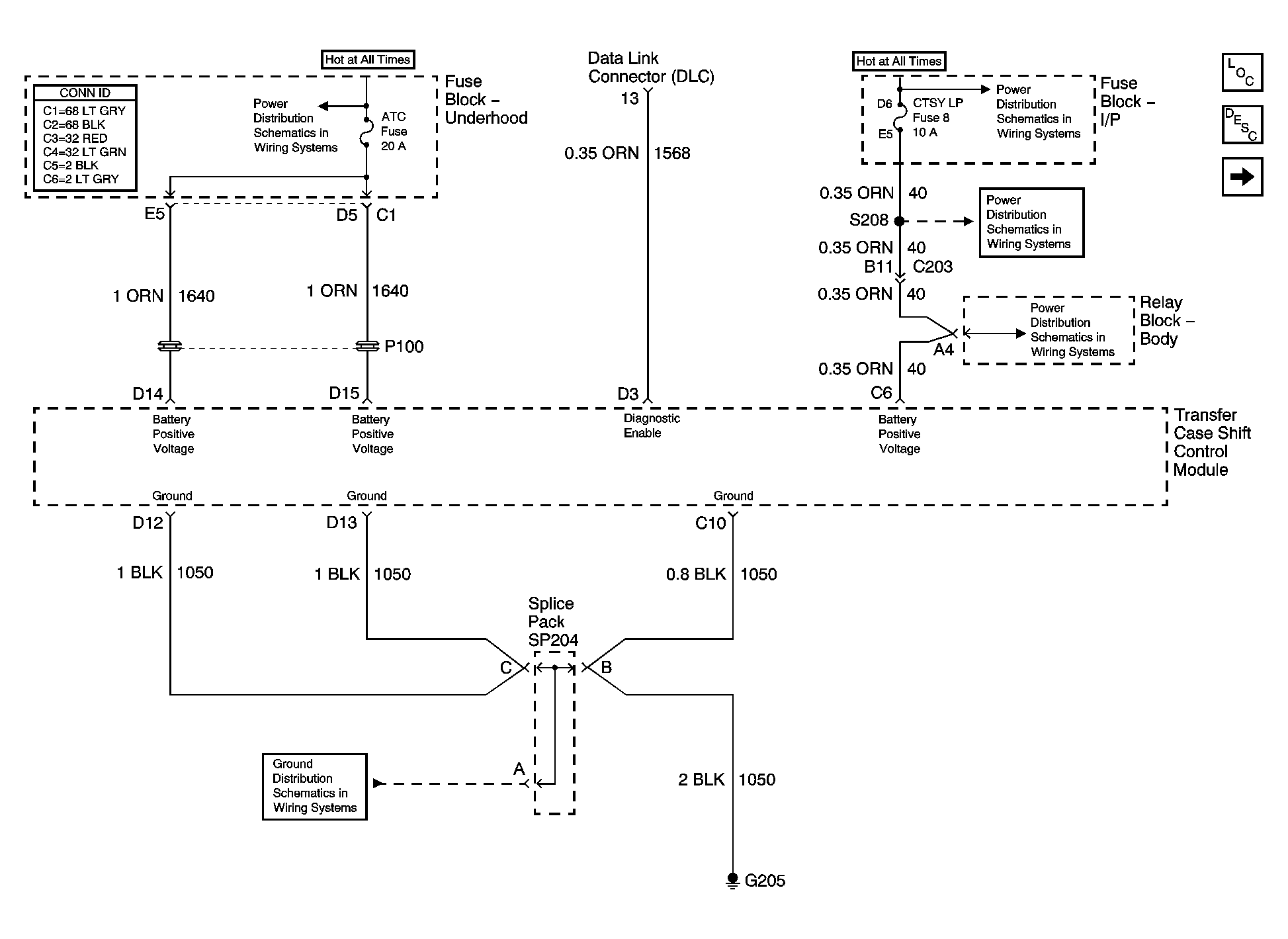

Fig 1: Power and Ground
GM888403Courtesy of GENERAL MOTORS CORP.

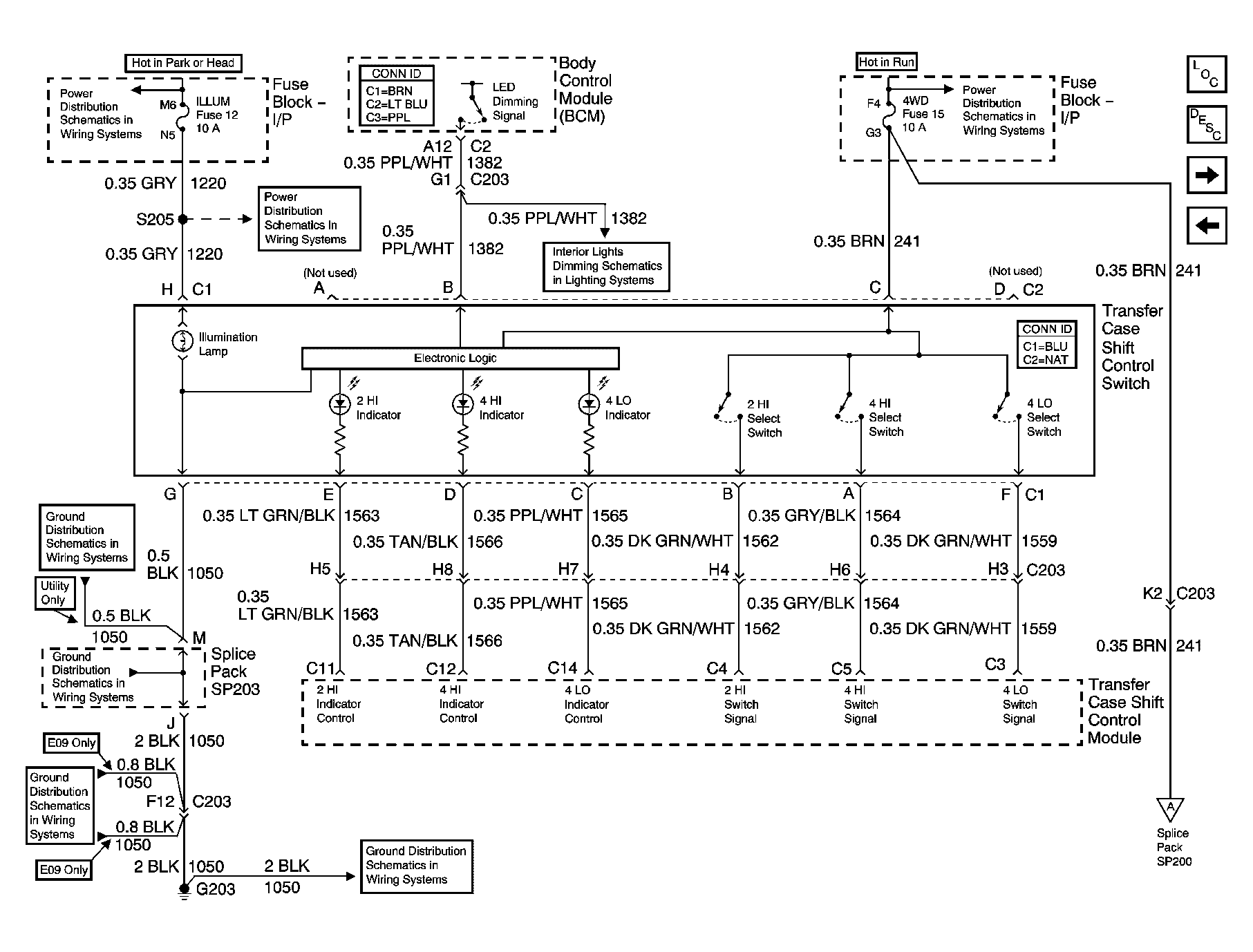

Fig 2: Transfer Case Shift Control Switch
GM888424Courtesy of GENERAL MOTORS CORP.

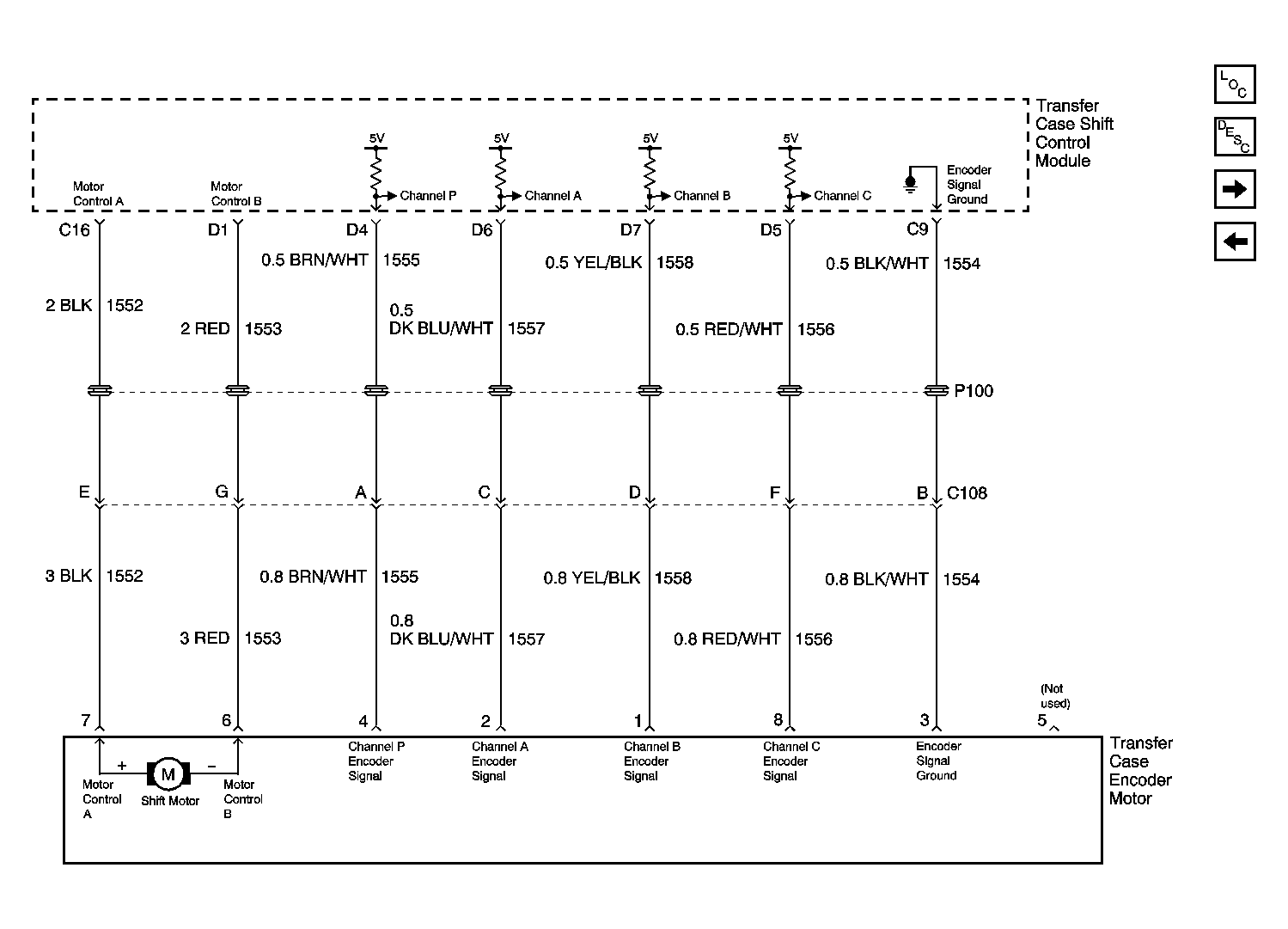

Fig 3: Transfer Case Encoder Motor
GM755616Courtesy of GENERAL MOTORS CORP.

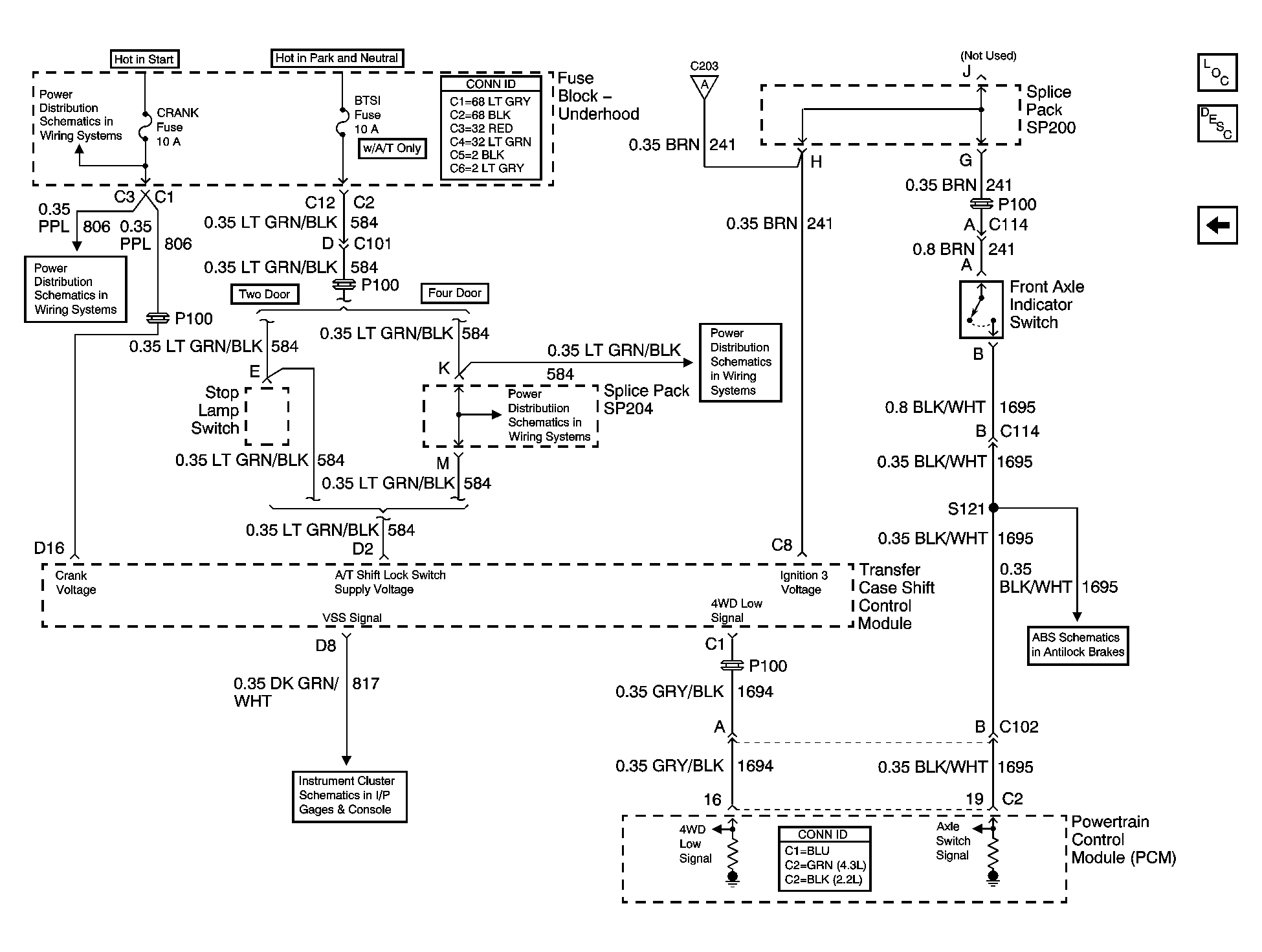

Fig 4: Front Axle Indicator Switch and Powertrain Control Module (PCM)
GM884539Courtesy of GENERAL MOTORS CORP.
