Transfer Case Control Component Views

Fig 1: Center I/P Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel (I/P)
2	Transfer Case Shift Control Switch
3	Inflatable Restraint I/P Module Switch (Pickup Only)
4	Auxiliary Power Outlet - Right
5	Auxiliary Power Outlet - Left
6	I/P Tray, Ashtray and Cigar Lighter
7	Rear Wiper/Washer Switch and Endgate/Liftglass Window Release Switch (Utility)
8	Transfer Case Shift Control Switch C2
9	Transfer Case Shift Control Switch C1

Fig 2: Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Side Cowl Panel
2	Transfer Case Shift Control Module Connector (Not Used on Selectable)
3	Transfer Case Shift Control Module Connector
4	Transfer Case Shift Control Module

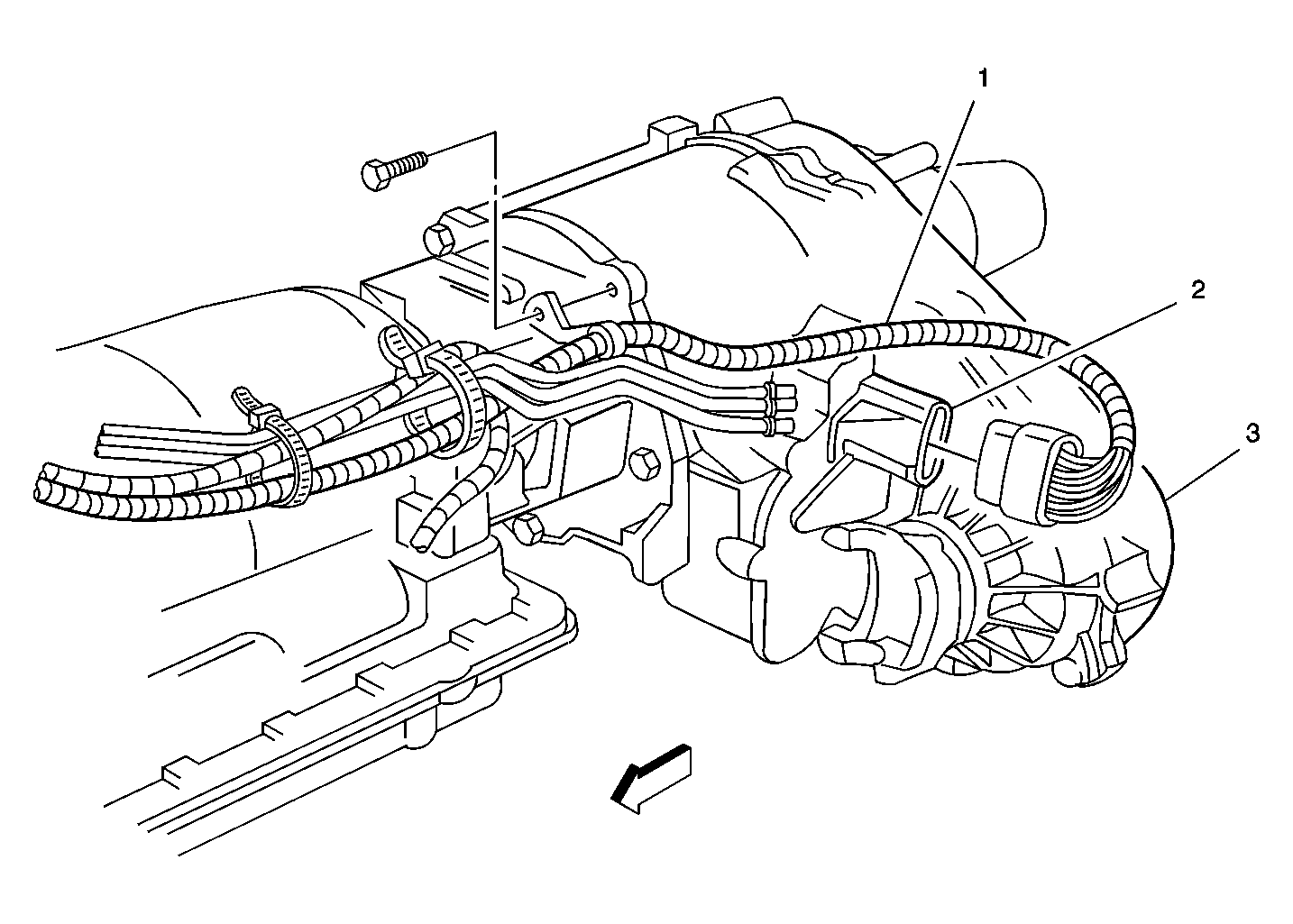

Fig 3: Transfer Case (NP1) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electric Shift Transfer Case Harness
2	Transfer Case Encoder Motor Connector
3	Electric Shift Transfer Case (NP1)

Fig 4: Front Axle Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Axle Indicator Switch
2	Front Axle
