Installation Procedure

    Fig 1: View Of Idler Arm
    GM291252Courtesy of GENERAL MOTORS CORP.
  1. Install the relay rod ball stud to the idler arm.

    Ensure that the seal is on the stud.

    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the new nut to the relay rod ball stud at the idler arm.

    Tighten:  Tighten the relay rod ball stud nut at the idler arm to 47 N.m (35 lb in).

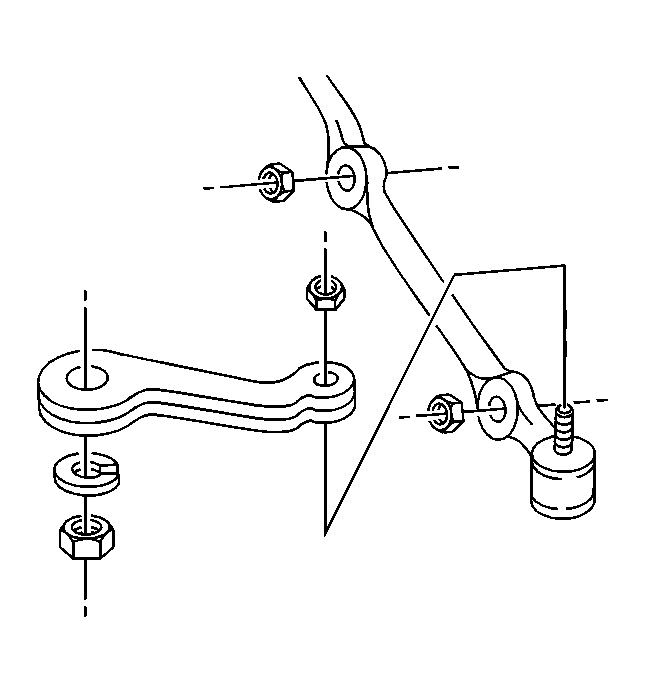

    3. Fig 2: View Of Relay Rod At Pitman Arm
    GM291242Courtesy of GENERAL MOTORS CORP.
  3. Install the relay rod ball stud to the pitman arm.

    Ensure that the seal is on the stud.

  4. Install the new nut to the relay rod ball stud at the pitman arm.

    Tighten:  Tighten the relay rod ball stud nut at the pitman arm to 48 N.m (36 lb ft).

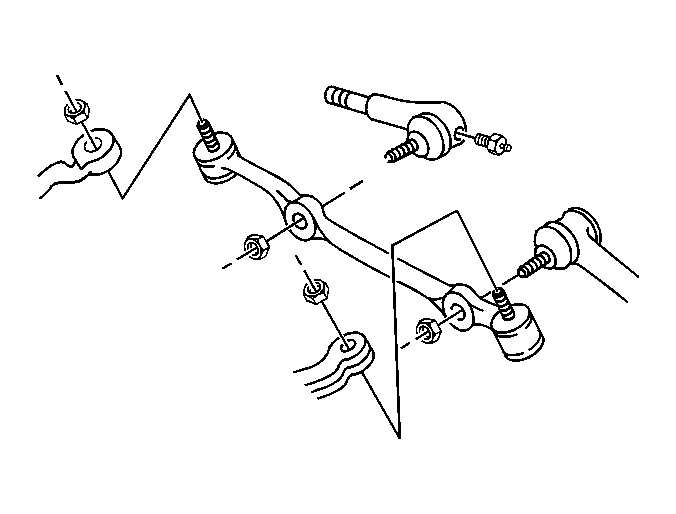

    5. Fig 3: View Of Inner Tie Rod
    GM291236Courtesy of GENERAL MOTORS CORP.
  5. Install the inner tie rod ball studs to the relay rod.

    Ensure that the seal is on the stud.

  6. Install the new nuts to the inner tie rod ball studs.

    Tighten:  Tighten the inner tie rod ball studs nuts to 47 N.m (35 lb ft).

  7. Lower the vehicle.
  8. Adjust the front toe. Refer to Front Toe Adjustment in Wheel Alignment.
