Installation Procedure

NOTE: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.
  1. Install the power steering cooler hose to the vehicle.

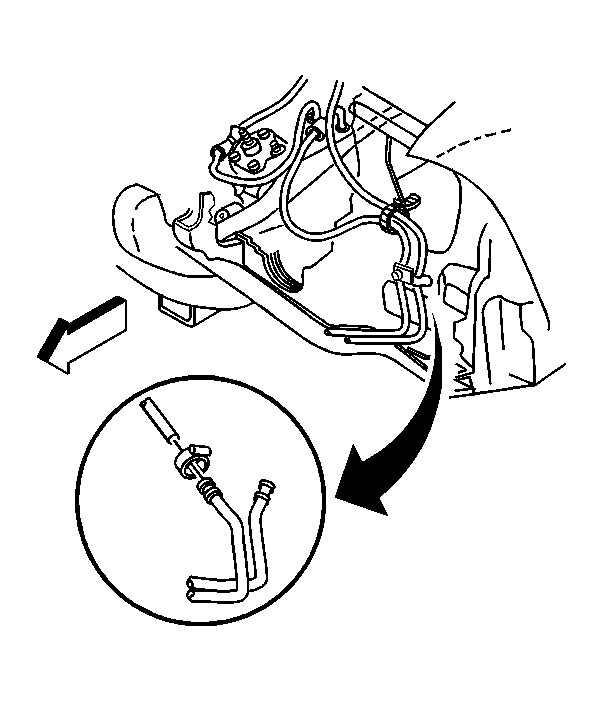

    2. Fig 1: View Of Power Steering Cooler Hose At Power Steering Cooler
    GM395851Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Connect the power steering cooler hose to the power steering cooler.

    Tighten:  Tighten the power steering hose clamp to 2 N.m (18 lb in).

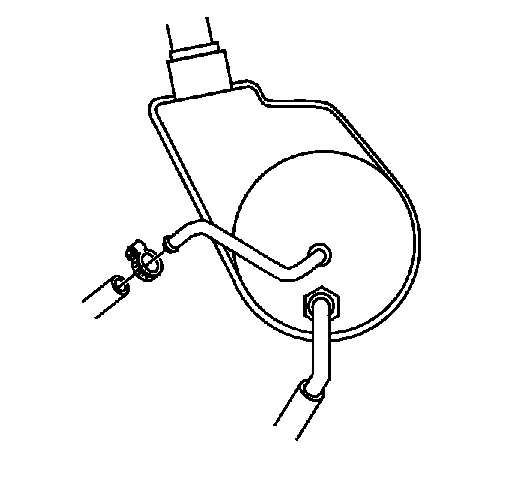

    3. Fig 2: View Of Power Steering Cooler Hose At Power Steering Pump
    GM395852Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering cooler hose to the power steering pump.

    Tighten:  Tighten the power steering hose clamp to 2 N.m (18 lb in).

  4. Remove the drain pan from under the vehicle.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls 4.3L.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
