SIR Component Views

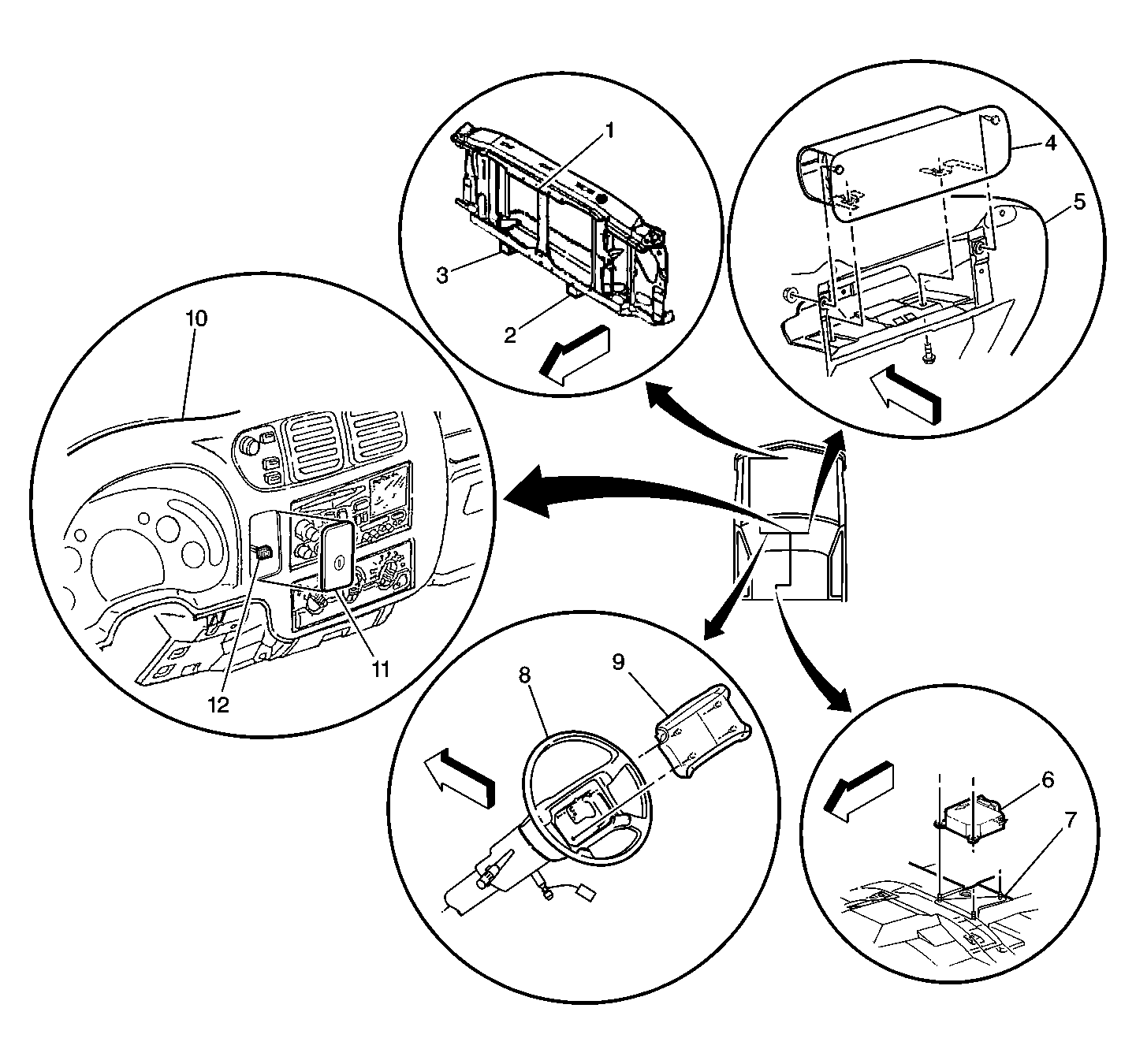

Fig 1: SIR Components
GM187108Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radiator Support Bracket
2 Inflatable Restraint Front End Discriminating Sensor - Left
3 Inflatable Restraint Front End Discriminating Sensor - Right
4 Inflatable Restraint I/P Module
5 Instrument Panel
6 Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 Floor Pan
8 Steering Wheel
9 Inflatable Restraint Steering Wheel Module
10 Instrument Panel
11 Inflatable Restraint I/P Module Disable Switch (Pickup Only)
12 Inflatable Restraint I/P Module Disable Switch Connector (Pickup Only)
