Fuse Block - Underhood Top View

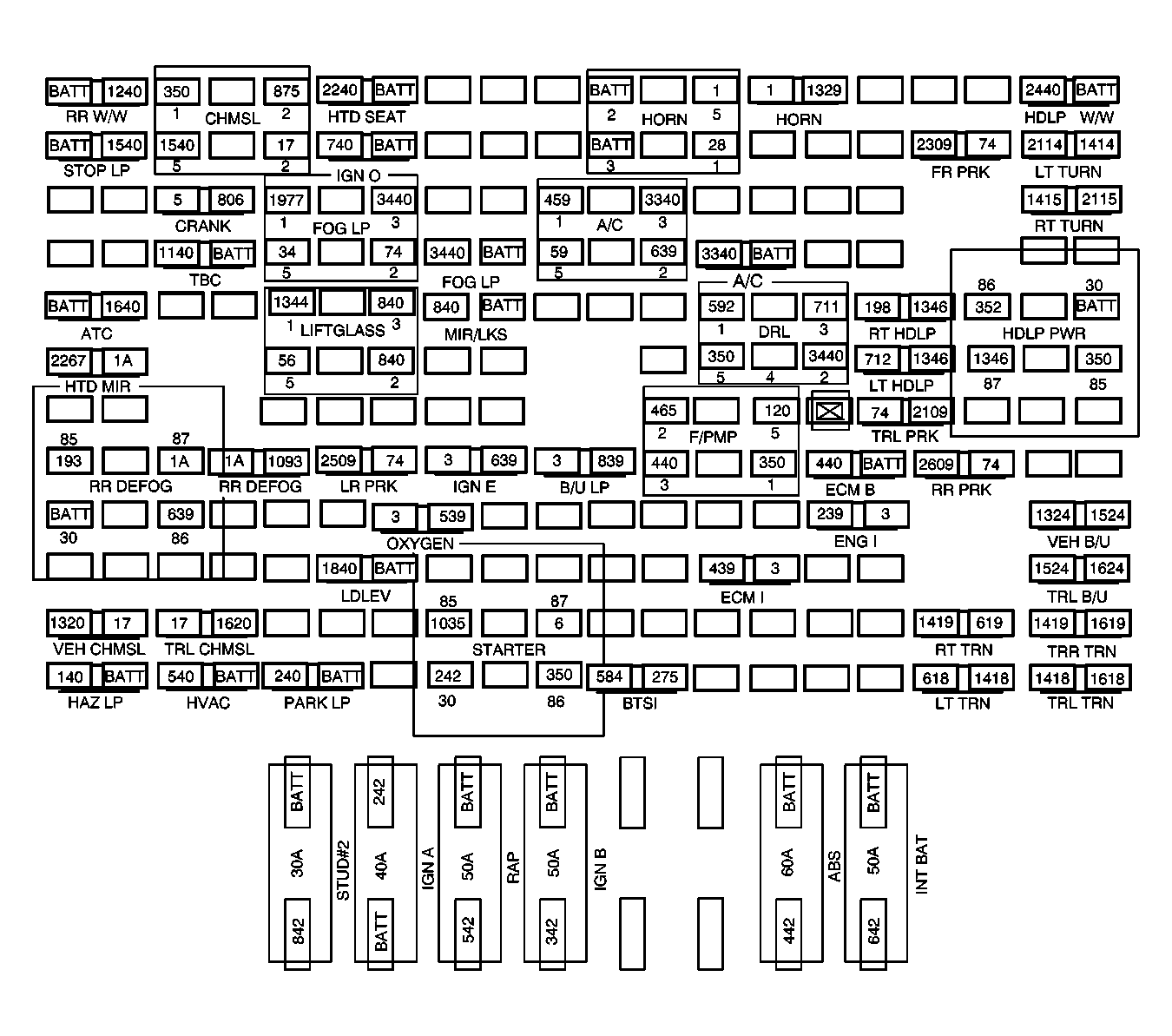

Fig 1: Identifying Fuse Block - Underhood Top View
GM547748Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood Connector C1

GM365994Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193905
  • 68-Way F Metri-Pack 280 Series, Flex Lock (GRY)
Pin Wire Color Circuit No. Function
A1 ORN/BLK 2240 Battery Positive Voltage (Utility 4 door)
A2 ORN 740 Battery Positive Voltage
A3 PPL 524 Headlamp Dimmer Switch High Beam Signal (Domestic)
PPL 524 Headlamp Dimmer Switch High Beam Signal (Domestic)
A4 LT BLU 74 Park Lamp Switch Signal
A5 ORN 840 Battery Positive Voltage (w/AU3/A31)
A6 WHT 352 Headlamp Relay Coil Supply Voltage (Domestic)
A7 BLK 350 Ground
BLK 350 Ground (w/C25)
A8 BRN 2509 Left Rear Park Lamps Supply Voltage (Utility)
A9 PNK 3 Ignition 1 Voltage
A10 - - Not Used
A11 PPL/WHT 1035 Starter Relay Coil Supply Voltage
A12 - - Not Used
B1 YEL/BLK 895 Left Rear Stop Lamp Supply Voltage (Pickup)
B1 DK GRN 1324 Backup Lamp Supply Voltage (Export)
B2 TAN 28 Horn Relay Control (E09)
TAN 28 Horn Relay Control (E09 w/Theft Deterrent)
B3 DK GRN/
WHT		 1317 Fog Lamp Relay Control (Domestic)
B3 YEL 1977 Rear Fog Lamp Relay Control (Export)
B4 PPL 34 Fog Lamps Supply Voltage
B5 LT BLU 1344 Liftglass Release Relay Control
B6 BLK/WHT 56 Trunk Release Motor Supply Voltage
B7 BLK 350 Ground
BLK 350 Ground (ZR2)
B8 PPL 1093 Rear Defog Element Supply Voltage (Utility)
B9-B10 - - Not Used
B11 RED 242 Battery Positive Voltage
B12 ORN 240 Battery Positive Voltage
C1 DK BLU/
WHT		 1415 Right Front Turn Signal Switch Signal (Domestic)
C1 LT BLU/
WHT		 1414 Left Front Turn Signal Switch Signal (Export)
C2 LT BLU/
WHT		 1414 Left Front Turn Signal Switch Signal (Domestic)
C2 DK BLU/
WHT		 1415 Right Front Turn Signal Switch Signal (Export)
C3 PPL 806 Crank Voltage
PPL 806 Crank Voltage (4WD)
C4 - - Not Used
C5 LT GRN/
BLK		 592 DRL Relay Control (Domestic)
C8-C9 - - Not Used
C10 DK GRN/
WHT		 1419 Right Rear Turn Signal Switch Signal
C11-C12 - - Not Used
D1 PPL 524 Headlamp Dimmer Switch High Beam Signal (Export)
PPL 524 Headlamp Dimmer Switch High Beam Signal (Export)
D2 RED 228 Windshield Washer Pump Control (Export)
RED 228 Windshield Washer Pump Control (Export)
D3 YEL 5 Crank Voltage
D4 ORN 1140 Battery Positive Voltage
D5 ORN 1640 Battery Positive Voltage (4WD)
D8 - - Not Used
D9 PNK 639 Ignition 1 Voltage (ZR2)
D10 DK GRN 619 Right Rear Turn Signal Lamp Supply Voltage (Utility)
D11 WHT 17 Stop Lamp Switch Signal
D12 ORN 540 Battery Positive Voltage
E1 ORN 1240 Battery Positive Voltage (Utility w/ AU3/A31)
E2 ORN 1540 Battery Positive Voltage
E3 BLK 28 Horn Relay Control - Except E09
BLK 28 Horn Relay Control (Except E09 w/Theft Deterrent)
E3 WHT 352 Headlamp Relay Coil Supply Voltage (E09)
E4 ORN 1140 Battery Positive Voltage
ORN 1140 Battery Positive Voltage (w/Keyless Entry)
E5 ORN 1640 Battery Positive Voltage
E6 - - Not Used
E7 BLK/WHT 451 Ground
E8 BLK/WHT 451 Ground (Domestic)
E8 YEL 525 Headlamp Dimmer Switch Low Beam Signal (Export)
E9 BRN/WHT 2609 Right Rear Park Lamps Supply Voltage (Utility)
E10 YEL 618 Left Rear Turn Signal Lamp Supply Voltage (Utility)
E11-E12 - - Not Used
F1-F2 - - Not Used
F3 LT GRN 1324 Backup Lamp Supply Voltage (Utility Domestic)
F4 YEL 525 Headlamp Dimmer Switch Low Beam Signal
F5 - - Not Used
F6 ORN 2267 Mirror Heating Element Supply Voltage
F7 BLK/WHT 451 Fuel Pump Relay Control (Export)
F8 WHT 193 Rear Defog Relay Control
F9 - - Not Used
F10 YEL/BLK 1418 Left Rear Turn Signal Switch Signal
F11 LT BLU 1320 CHMSL Supply Voltage
LT BLU 1320 CHMSL Supply Voltage (w/Cruise Control)
F12 ORN 140 Battery Positive Voltage
Fuse Block - Underhood Connector C2

GM362761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193906
  • 68-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A1-A7 - - Not Used
A8 ORN 440 Battery Positive Voltage
A9 PNK 239 Ignition 1 Voltage
A10 PNK 439 Ignition 1 Voltage
A11-A12 - - Not Used
B1- B6 - - Not Used
B7 DK GRN/
WHT		 465 Fuel Pump Relay Control
B8 ORN 440 Battery Positive Voltage
B9 PNK 239 Ignition 1 Voltage
B10 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
B11 GRY 1524 Backup Lamp Supply Voltage
B12 LT GRN 275 Park Neutral Position Switch Park Signal (w/A/T)
C1-C5 - - Not Used
C8 PNK 839 Ignition 1 Voltage
C9 - - Not Used
C10 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
C11 - - Not Used
C12 LT GRN/
BLK		 584 A/T Shift Lock Control Switch Supply Voltage (w/A/T)
D1-D2 - - Not Used
D3 DK GRN/
WHT		 459 A/C Compressor Clutch Relay Control (w/C60)
D4 DK GRN 59 A/C Compressor Clutch Supply Voltage (w/C60)
D5-D9 - - Not Used
D10 PNK 439 Ignition 1 Voltage)
PNK 439 Ignition 1 Voltage
D11 PPL 6 Starter Solenoid Crank Voltage
D12 BLK/WHT 350 Ground (w/C60)
E1 - - Not Used
E2 PPL 806 Crank Voltage (w/A/T)
E3-E6 - - Not Used
E7 BLK/WHT 451 Ground
E8-E9 - - Not Used
E10 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
E11-E12 - - Not Used
F1-F6 - - Not Used
F7 BLK 350 Ground
F8 - - Not Used
F9 PNK 539 Ignition 1 Voltage
F9 PNK 539 Ignition 1 Voltage
F10 - - Not Used
F11 PPL/WHT 1035 Starter Relay Coil Supply Voltage (w/A/T)
F12 - - Not Used
Fuse Block - Underhood Connector C3

GM362759Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193916
  • 32-Way F Metri-Pack 280 Series (RED)
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 LT GRN 1624 Trailer Backup Lamps Supply Voltage (Utility)
A5 DK GRN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage (Utility)
A6 YEL 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage (Utility)
B1-B2 - - Not Used
B3 LT GRN 1324 Backup Lamp Supply Voltage (Pickup)
B4-B6 - - Not Used
C1 BRN 2509 Left Rear Park Lamps Supply Voltage (Pickup)
C2 - - Not Used
C5 DK GRN 619 Right Rear Turn Signal Lamp Supply Voltage (Pickup)
C6 - - Not Used
D1 BRN 2109 Trailer Park Lamps Supply Voltage (Utility)
D2 BRN/WHT 2609 Right Rear Park Lamps Supply Voltage (Pickup)
D5 - - Not Used
D6 YEL 618 Left Rear Turn Signal Lamp Supply Voltage (Pickup)
E1-E3 - - Not Used
E4 LT BLU 1620 Trailer CHMSL Supply Voltage
E5-E6 - - Not Used
F1 GRY 120 Fuel Pump Supply Voltage
F2 - - Not Used
F3 PNK 239 Ignition 1 Voltage
F4-F6 - - Not Used
Fuse Block - Underhood Connector C4

GM362760Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193914
  • 32-Way F Metri-Pack 280 Series (GRN)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 DK GRN/
WHT		 711 Left Headlamp High Beam Supply Voltage (Domestic)
A2 YEL 525 Headlamp Dimmer Switch Low Beam Signal (Export Only)
YEL 525 Headlamp Dimmer Switch Low Beam Signal (Export Only)
A3-A4 - - Not Used
A5 - - Not Used (Except Export)
A5 PNK 94 Windshield Washer Switch Signal (Export Only)
A6 DK GRN 1329 Horn Fuse Supply Voltage
DK GRN 1329 Horn Fuse Supply Voltage
B1 YEL/BLK 712 Left Headlamp Low Beam Supply Voltage
YEL/BLK 712 Left Headlamp Low Beam Supply Voltage (Export Only)
B2 DK BLU 198 Right Headlamp Low Beam
DK BLU 198 Right Headlamp Low Beam
B3 PNK 639 Ignition 1 Voltage (Export Only)
PNK 639 Ignition 1 Voltage (Export Only)
B4 PPL 524 Headlamp Dimmer Switch High Beam Signal (Domestic)
PPL 524 Headlamp Dimmer Switch High Beam Signal (Domestic)
B5 BRN 2309 Front Park Lamps Supply Voltage
BRN 2309 Front Park Lamps Supply Voltage (Domestic)
B6 - - Not Used
C1-C2 - - Not Used
C5 BRN 2309 Front Park Lamps Supply Voltage
BRN 2309 Front Park Lamps Supply Voltage
C6 - - Not Used
E1 - - Not Used
E2 PPL 34 Fog Lamps Supply Voltage (w/ ANL)
PPL 34 Fog Lamps Supply Voltage (w/ ANL)
E3 PPL 524 Headlamp Dimmer Switch High Beam Signal (Export Only)
PPL 524 Headlamp Dimmer Switch High Beam Signal (Export Only)
E4 - - Not Used
E5 LT BLU 2114 Left Turn Signal Lamps Supply Voltage
LT BLU 2114 Left Turn Signal Lamps Supply Voltage
E6 ORN 2440 Battery Positive Voltage (Export Only)
F1-F2 - - Not Used
F3 YEL 525 Headlamp Dimmer Switch Low Beam Signal (Domestic)
YEL 525 Headlamp Dimmer Switch Low Beam Signal (Domestic)
F4 DK BLU 2115 Right Turn Signal Lamps Supply Voltage
DK BLU 2115 Right Turn Signal Lamps Supply Voltage
F5-F6 - - Not Used
Fuse Block - Underhood Connector C5

GM258677Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146037
  • 2-Way F Maxi-Fuse (BLK)
Pin Wire Color Circuit No. Function
A RED 542 Battery Positive Voltage
B RED 342 Battery Positive Voltage
Fuse Block - Underhood Connector C6

GM280788Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 280788
  • 2-Way F Maxi-Fuse (GRY)
Pin Wire Color Circuit No. Function
A RED 442 Battery Positive Voltage
B RED 642 Battery Positive Voltage
