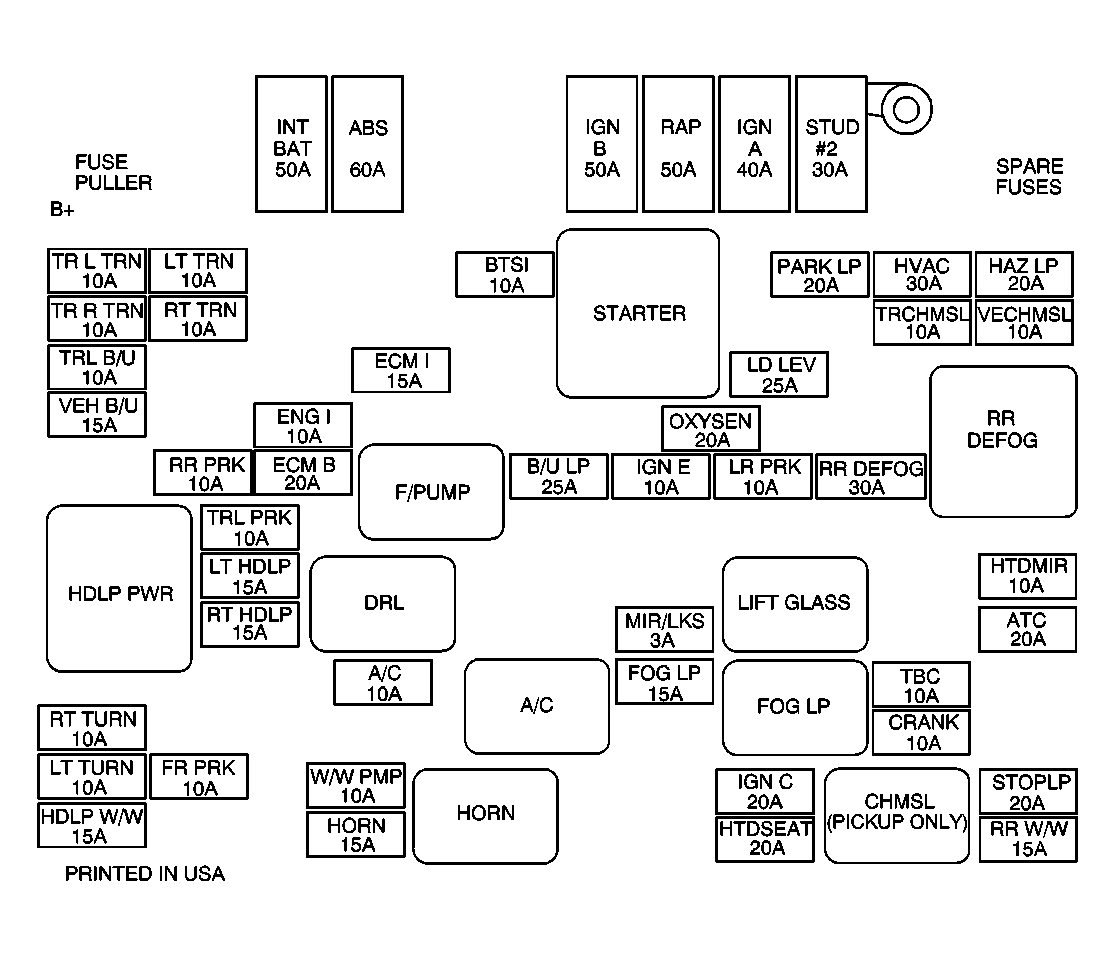

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usages
| Device | Rating | Description |
|---|---|---|
| Maxi Fuses | ||
| INT BATT | 50A | HDLP SW, AUX PWR, RDO BATT, CIGAR LTR, CTSY LP, and PWR LKS Fuses, and AMPF Fuse (w/ Premium Audio) |
| ABS | 60A | Electronic Brake Control Module (EBCM) |
| IGN B | 50A | Ignition Switch |
| RAP | 50A | Retained Accessory Power (RAP) Relay, POWER SEATS Circuit Breaker (w/ Power Seats) |
| IGN A | 40A | Starter Relay and Ignition and Start Switch |
| STUD #2 | 30A | Trailer Wiring Provision (Power Aux) |
| Mini Fuses | ||
| TRL TRN | 10A | Trailer Wiring Provision (LP - Stop, T/Sig - LH) |
| LT TRN | 10A | Park/Turn Signal Lamp - LR, Turn Signal Lamp - LR (Export) |
| BTSI | 10A | Stop Lamp Switch, Transfer Case Shift Control Module (w/ NP1), and Automatic Transmission Shift Lock Actuator (w/Floor Shift A/T Only) |
| PARK LP | 20A | Park Lamp Relay, Headlamp Grounding Relay, and Headlamp Switch |
| HVAC | 30A | Blower Motor Relay (w/o Electronic Climate Control), Blower Motor Control Module (w/ Electronic Climate Control) |
| HAZ LP | 20A | Multifunction Switch (Hazard) |
| TRR TRN | 10A | Trailer Wiring Provision (LP - Stop, T/Sig - RH) |
| RT TRN | 10A | Park/Turn Signal Lamp - RR, Turn Signal Lamp - RR (Export) |
| TRCHMSL | 10A | Trailer Wiring Provision (LP - High MT Stop) |
| VECHMSL | 10A | Center High Mounted Stop Lamp (CHMSL), Center High Mounted Stop Lamp (CHMSL) Resistor, Cruise Control Module (CCM), and Tail/Stop Lamp - LH/RH (Export) |
| TRL B/U | 10A | Trailer wiring Provision (LP-B/U) |
| ECM I | 15A | Ignition Control Module (ICM), Fuel Injectors 1-6, Powertrain Control Module (PCM), and Ignition Coil |
| LD LEV | 25A | Not Used |
| VEH B/U | 15A | Backup Lamp - Right/Left, Inside Rear View Mirror (w/Automatic Day - Night Mirror Only) |
| ENG I | 10A | Evaporative Emission (EVAP) Canister Purge Solenoid, Evaporative Emission (EVAP) Canister Vent Solenoid, Mass Air Flow (MAF) Sensor, and Camshaft Position (CMP) Sensor |
| OXYSEN | 20A | Heated Oxygen Sensor (HO2S) Bank 1, Sensor 1, Heated Oxygen Sensor (HO2S) Bank 1, Sensor 3, Heated Oxygen Sensor (HO2S) Bank 2, Sensor 1 |
| RR PRK | 10A | Park/Turn Signal Lamps - RR (Domestic), Tail/Stop Lamp - RH (Export) |
| ECM B | 20A | Fuel Pump Relay |
| B/U LP | 25A | Backup Lamp Switch (w/ M/T) and Park Neutral Position (PNP) and Backup Lamp Switch (w/ A/T) |
| IGN E | 10A | A/C Compressor Relay, Secondary Air Injection (AIR) Relay (w/ California Emissions only), Rear Defogger Relay, Headlamp Leveling Switch (Export), and Headlamp Leveling Actuator Motor, LH/RH (Export), Automatic Level Control (ALC) Sensor and Compressor |
| LR PRK | 10A | Park/Turn Signal Lamps - LR (Domestic) and Tail/Stop Lamp - LH (Export) |
| RR DEFOG | 30A | Rear Window Defogger Grid |
| TRL PRK | 10A | License Lamps, and Trailer Wiring Provisions (LP Park) |
| LT HDLP | 15A | Daytime Running Lamps (DRL) Relay and Headlamp - Low Beam - Left |
| HTD MIR | 10A | Outside Rearview Mirror - Right/Left (Heating Element) |
| RT HDLP | 15A | Headlamp - Low Beam - Right, and Headlamp - High Beam - Right |
| MIR/LKS | 3A | Outside Rear View Mirror Switch, Door Lock and Side Window Switch - Left/Right, Lift Glass Relay, Liftgate or Endgate Lock Cylinder Switch |
| ATC | 20A | Transfer Case Shift Control Module, and Transfer Case Encoder Motor (w/o NP1) |
| A/C | 10A | A/C Compressor Relay |
| FOG LP | 15A | Fog Lamp Relay, and Daytime Running Lamps (DRL) Relay |
| TBC | 10A | Body Control Module (BCM), Remote Control Door Lock Receiver (RCDLR), and Multifunction Switch (Flash to Pass) |
| RT TURN | 10A | Park/Turn Signal Lamp - RH, Marker Lamp, Repeater Lamps (Export) |
| CRANK | 10A | Transfer Case Shift Control Module, Clutch Pedal Position (CPP) Switch (M/T Only), and Park/Neutral Position (PNP) and Backup Lamp Switch (A/T Only) |
| LT TURN | 10A | Park/Turn Signal Lamp - LH, Marker Lamp, Repeater Lamp (Export) |
| FR PRK | 10A | Park/Turn Signal Lamp - LH/RH (Domestic), Marker Lamp, Headlamp Washer Pump Relay (Export) |
| W/W PMP | 10A | Headlamp Washer Fluid Pump Relay (Export Only) |
| IGN C | 20A | Ignition Switch |
| STOP LP | 20A | Stop Lamp Switch |
| HDLP W/W | 15A | Headlamp Washer Fluid Pump Relay (Export Only) |
| HORN | 15A | Horn - Left/Right |
| HTD SEAT | 20A | Seat Heater Module, LH/RH (w/ Heated Seats), Lumbar Switch, RH, LH (w/ Heat and Lumbar) |
| RR W/W | 15A | Rear Window Wiper Motor |
| Micro Relays | ||
| F/PUMP | - | Fuel Pump |
| DRL | - | Headlamp - High Beam - Left |
| LIFT GLASS | - | Liftgate/Endgate Window Release Actuator |
| A/C | - | A/C Compressor |
| FOG LP | - | Fog Lamps and Fog Lamp Switch |
| HORN | - | HORN Fuse |
| CHMSL | - | Not Used |
| Mini Relays | ||
| STARTER | - | Starter Solenoid (Coil) |
| RR DEFOG | - | RR DEFOG, and HTD MIR Fuses |
| HDLP PWR | - | RT HDLP, and LT HDLP Fuses |
